Front Door Speaker

  1. Remove the door panel (see DOOR PANEL REMOVAL/INSTALLATION ).
  2. Remove the bolt (A). Then lift the speaker (B) straight up to release the lower clips.
    NOTE: If you pull the speaker out too far from the door, you will damage the lower clips.

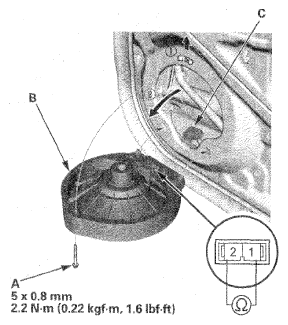

    Fig 1: Measuring Resistance Between Terminals No. 1 And No. 2 With Torque Specifications
    G06954336Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 2P connector (C), and remove the speaker.
  4. Measure the resistance between terminals No. 1 and No. 2. There should be about 4.0 Ω.
  5. If the resistance is not as specified, replace the door speaker.
  6. Install the speaker in the reverse order of removal.
