Honda
>>
2013
>>
CR-Z Base, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Infotainment
>>
Audio System
>>
Circuit Diagram
>>
With Navigation
With Navigation

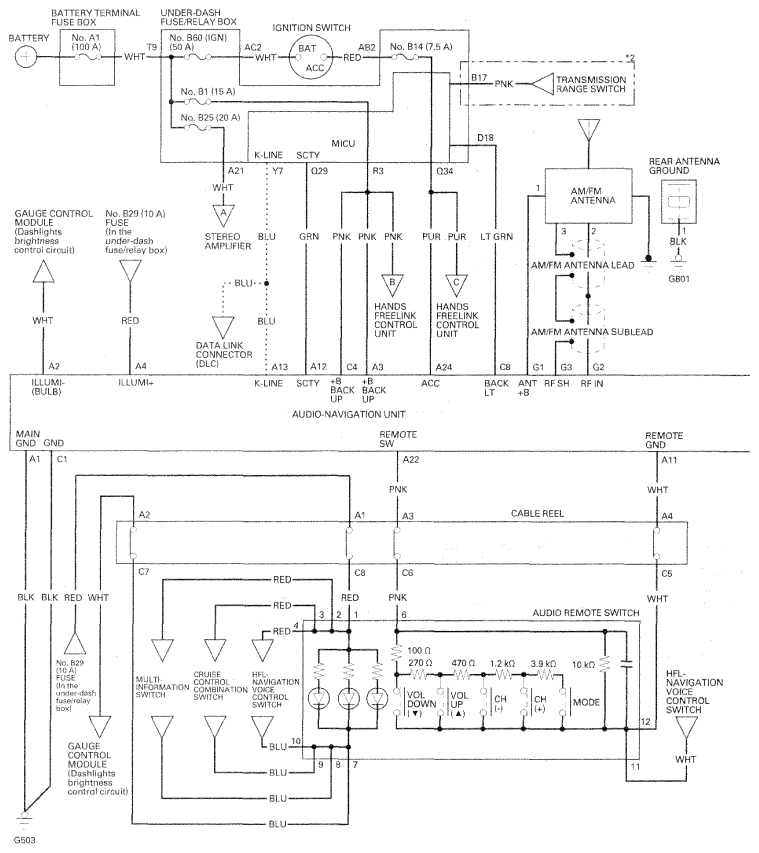

Fig 1: Audio System Circuit Diagram - With Navigation (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

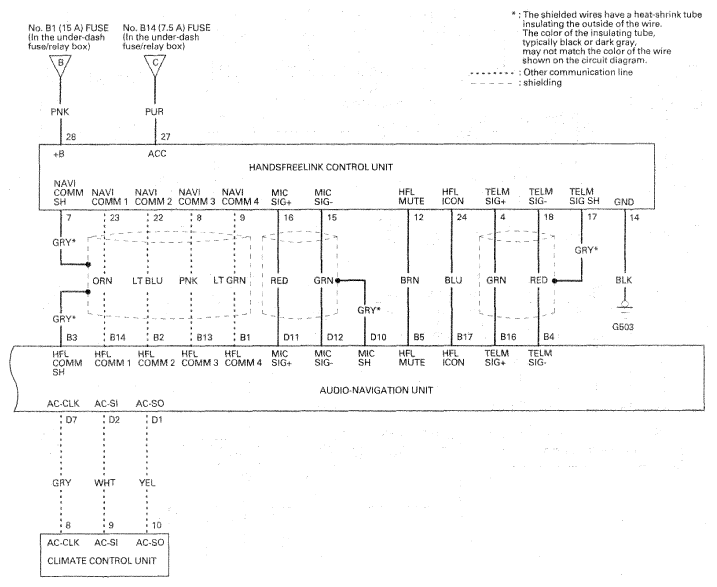

Fig 2: Audio System Circuit Diagram - With Navigation (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

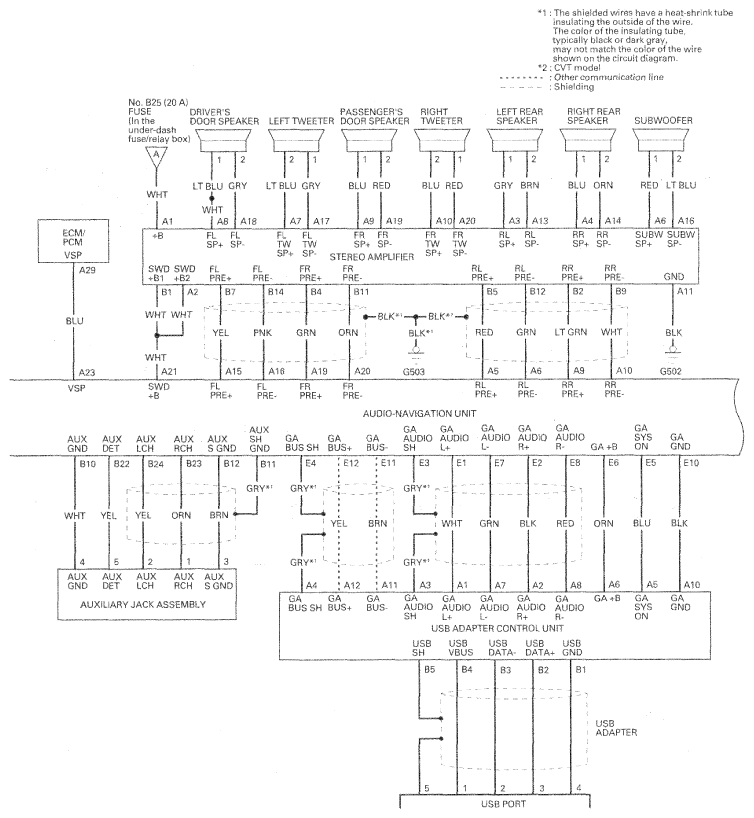

Fig 1: Audio System Circuit Diagram - With Navigation (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
