Side Turn Signal Light Replacement

  1. Remove the mirror holder (see MIRROR HOLDER REPLACEMENT ).
  2. Remove the mirror housing.
  3. Disconnect the 2P connector (A) from the side turn signal light (B).

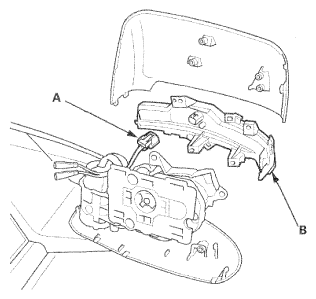

    Fig 1: Identifying Side Turn Signal Light With 2P Connector
    G06954010Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the light in the reverse order of removal.
