Side Curtain Airbag(s)

  1. The side impact sensors must activate and send electrical signals to the microprocessor.
  2. The microprocessor must compute the signals and trigger the side curtain airbag and side airbag inflators.
  3. The triggered inflators must ignite and deploy the side curtain airbag and side airbag at the same time.

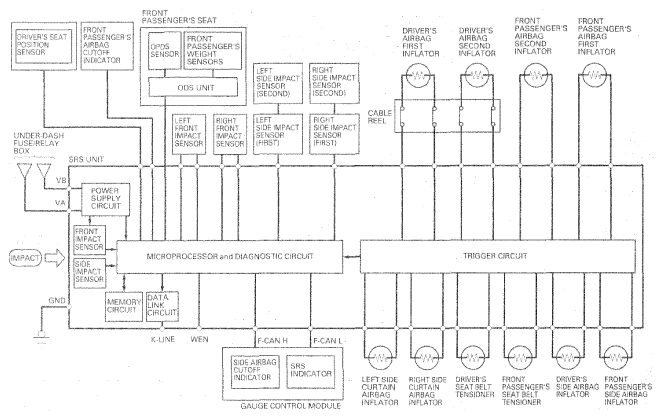

    Fig 1: SRS Unit Circuit Diagram
    G06952359Courtesy of AMERICAN HONDA MOTOR CO., INC.
