DTC P0351: No. 1 Cylinder Ignition Coil Circuit Malfunction; DTC P0352: No. 2 Cylinder Ignition Coil Circuit Malfunction; DTC P0353: No. 3 Cylinder Ignition Coil Circuit Malfunction; DTC P0354: No. 4 Cylinder Ignition Coil Circuit Malfunction

NOTE: Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information (see GENERAL TROUBLESHOOTING INFORMATION ).
  1. Turn the ignition switch to ON (II).
  2. Clear the DTC with the HDS.
  3. Start the engine.
  4. Check for Pending or Confirmed DTCs with the HDS.

    Is DTC P0351, P0352, P0353, and/or P0354 indicated?

    YES  -Go to step  5.

    NO  -Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the ignition coil, and the ECM/PCM.

  5. Turn the ignition switch to LOCK (0).
  6. Exchange the ignition coil from the problem cylinder with one from another cylinder.
  7. Start the engine.
  8. Check for Pending or Confirmed DTCs with the HDS.

    Is an ignition coil DTC indicated at the cylinder where the ignition coil was exchanged?

    YES  -Replace the faulty ignition coil (see IGNITION COIL AND SPARK PLUG REMOVAL/INSTALLATION ), then go to step  26.

    NO  -Go to step  9.

  9. Turn the ignition switch to LOCK (0).
  10. Check the No. B33 IGNITION COIL (15 A) fuse in the under-dash fuse/relay box.

    Is the fuse OK?

    YES  -Go to step  11.

    NO  -Go to step  13.

  11. Open the fuse lid panel (A), then remove the ignition coil relay (B) from the under-dash fuse/relay box.

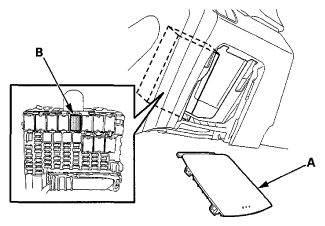

    Fig 1: Identifying Fuse Lid Panel And Ignition Coil Relay
    G06949845Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Test the ignition coil relay (see POWER RELAY TEST ).

    Is the ignition coil relay OK?

    YES  -Go to step  16.

    NO  -Replace the ignition coil relay, then go to step  27.

  13. Open the fuse lid panel (A), then remove the ignition coil relay (B) from the under-dash fuse/relay box.
  14. Disconnect all ignition coil 3P connectors.

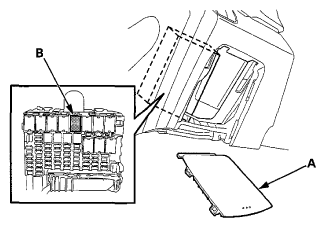

    Fig 2: Identifying Fuse Lid Panel And Ignition Coil Relay
    G06949846Courtesy of AMERICAN HONDA MOTOR CO., INC.
  15. Check for continuity between No. 1 ignition coil 3P connector terminal No. 1 and body ground.
    Fig 3: Checking Continuity Between No. 1 Ignition Coil 3P Connector Terminal No. 1 And Body Ground
    G06949847Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Repair a short in the wire between the ignition coil relay and the ignition coils. Also replace the No. B33 IGNITION COIL (15 A) fuse, then go to step  27.

    NO  -Replace the under-dash fuse/relay box; USA models (see REMOVAL AND INSTALLATION ), Canada models (see CANADA MODELS ), then go to step  27.

  16. Reinstall the ignition coil relay.
  17. Disconnect the ignition coil 3P connector from the problem cylinder.
  18. Turn the ignition switch to ON (II).
  19. Measure voltage between ignition coil 3P connector terminal No. 1 and body ground.
    Fig 4: Measuring Voltage Between Ignition Coil 3P Connector Terminal No. 1 And Body Ground
    G06949848Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there battery voltage?

    YES  -Go to step  20.

    NO  -Repair an open in the wire between the ignition coil and the No. B33 IGNITION COIL (15 A) fuse, then go to step  26.

  20. Turn the ignition switch to LOCK (0).
  21. Check for continuity between ignition coil 3P connector terminal No. 2 and body ground.
    Fig 5: Checking Continuity Between Ignition Coil 3P Connector Terminal No. 2 And Body Ground
    G06949849Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Go to step  22.

    NO  -Repair an open in the wire between the ignition coil and G101; CVT (see CKP SENSOR SUBHARNESS (CVT) (JA) ), M/T (see CKP SENSOR SUBHARNESS (M/T) (JA) ), then go to step  27.

  22. Jump the SCS line with the HDS.
  23. Disconnect ECM/PCM connector C (44P).
  24. Check for continuity between body ground and the ECM/PCM connector terminal of the problem ignition coil (see table).
    DTC CHART

    PROBLEM CYLINDER DTC ECM/PCM TERMINAL WIRE COLOR
    No. 1 P0351 C15 WHT
    No. 2 P0352 C16 WHT/GRN
    No. 3 P0353 C17 WHT/BLK
    No. 4 P0354 C18 WHT/BLU

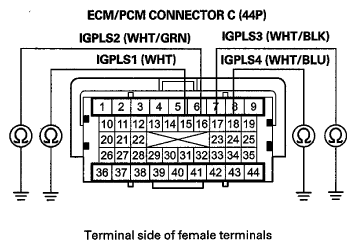

    Fig 6: Checking Continuity Between Body Ground And ECM/PCM Connector Terminal Of Ignition Coil
    G06949850Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Repair a short in the wire between the ECM/PCM and the ignition coil, then go to step  27.

    NO  -Go to step  25.

  25. Check for continuity between appropriate ignition coil 3P connector terminal No. 3 and the ECM/PCM connector terminal of the problem ignition coil (see table).
    DTC CHART

    PROBLEM CYLINDER DTC ECM/PCM TERMINAL WIRE COLOR
    No. 1 P0351 C15 WHT
    No. 2 P0352 C16 WHT/GRN
    No. 3 P0353 C17 WHT/BLK
    No. 4 P0354 C18 WHT/BLU

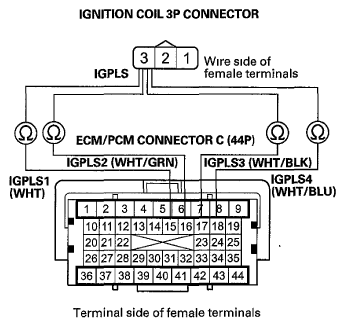

    Fig 7: Checking Continuity Between Ignition Coil 3P Connector Terminal No. 3 And ECM/PCM Connector Terminal
    G06949851Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Go to step  32.

    NO  -Repair an open in the wire between the ECM/PCM and the ignition coil, then go to step  27.

  26. Turn the ignition switch to LOCK (0).
  27. Reconnect all connectors.
  28. Turn the ignition switch to ON (II).
  29. Reset the ECM/PCM with the HDS.
  30. Do the ECM/PCM idle learn procedure (see ECM/PCM IDLE LEARN PROCEDURE ).
  31. Check for Pending or Confirmed DTCs with the HDS.

    Is DTC P0351, P0352, P0353, or P0354 indicated?

    YES  -Check for poor connections or loose terminals at the ignition coil, and the ECM/PCM, then go to step  1.

    NO  -Troubleshooting is complete. If any other Pending or Confirmed DTCs are indicated, go to the indicated DTC'S TROUBLESHOOTING .

  32. Reconnect all connectors.
  33. Update the ECM/PCM if it does not have the latest software (see ECM/PCM UPDATE  ), or substitute a known-good ECM/PCM (see SUBSTITUTING THE ECM/PCM ).
  34. Check for Pending or Confirmed DTCs with the HDS.

    Is DTC P0351, P0352, P0353, and/or P0354 indicated?

    YES  -Check for poor connections or loose terminals at the ignition coil and the ECM/PCM. If the ECM/PCM was updated, substitute a known-good PCM/PCM (see SUBSTITUTING THE ECM/PCM ), then recheck. If the ECM was substituted, go to step  1.

    NO  -If the ECM/PCM was updated, troubleshooting is complete. If the ECM/PCM was substituted, replace the original ECM/PCM (see ECM/PCM REPLACEMENT  ). If any other Pending or Confirmed DTCs are indicated, go to the indicated DTC'S TROUBLESHOOTING .
