DTC P0201: No. 1 Cylinder Injector Circuit Malfunction: DTC P0202: No. 2 Cylinder Injector Circuit Malfunction: DTC P0203: No. 3 Cylinder Injector Circuit Malfunction: DTC P0204: No. 4 Cylinder Injector Circuit Malfunction:

NOTE: Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information (see GENERAL TROUBLESHOOTING INFORMATION ).
  1. Turn the ignition switch to ON (II).
  2. Clear the DTC with the HDS.
  3. Start the engine, and let it idle for 20 seconds.
  4. Check for Pending or Confirmed DTCs with the HDS.

    Is DTC P0201, P0202, P0203, or P0204 indicated?

    YES  - Go to step 5.

    NO  - Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the injectors and the ECM/PCM.

  5. Turn the ignition switch to LOCK (0).
  6. Disconnect the injector 2P connector from problem cylinder.
  7. At the injector side, measure the resistance between injector 2P connector terminals No. 1 and No. 2.
    Fig 1: Measuring Resistance Between Injector 2P Connector Terminals No. 1 And No. 2
    G00514302Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there 10-13 Ω?

    YES  - Go to step 8.

    NO  - Go to  18.

  8. Turn the ignition switch to ON (II).
  9. Measure the voltage between injector 2P connector terminal No. 2 and body ground.
    Fig 2: Measuring Voltage Between Injector 2P Connector Terminal No. 2 And Body Ground
    G00514303Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there battery voltage?

    YES  - Go to step 10.

    NO  - Repair an open in the wire between the injector and PGM-FI main relay 1, then go to  19

  10. Turn the ignition switch to LOCK (0).
  11. Check for continuity between problem cylinder injector 2P connector terminal No. 1 and body ground (see chart below).
    PROBLEM CYLINDER DTC WIRE COLOR
    No. 1 P0201 BRN
    No. 2 P0202 RED
    No. 3 P0203 BLU
    No. 4 P0204 YEL
    Fig 3: Identifying Injector 2P Connector
    G00514304Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  - Go to step 12.

    NO  - Go to  15

  12. Jump the SCS line with the HDS.
  13. Disconnect ECM/PCM connector C (49P).
  14. Check for continuity between problem cylinder injector 2P connector terminal No. 1 and body ground (see chart below).
    PROBLEM CYLINDER DTC WIRE COLOR
    No. 1 P0201 BRN
    No. 2 P0202 RED
    No. 3 P0203 BLU
    No. 4 P0203 YEL
    Fig 4: Identifying Injector 2P Connector
    G00514305Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  - Repair a short in the wire between the ECM/PCM and the injector, then go to  19.

    NO  - Go to  24.

  15. Jump the SCS line with the HDS.
  16. Disconnect ECM/PCM connector C (49P).
  17. Check for continuity between appropriate injector 2P connector terminal No. 1 and the appropriate ECM/PCM connector terminal of the problem cylinder (see chart below).
    PROBLEM CYLINDER DTC ECM/PCM TERMINAL WIRE COLOR
    No. 1 P0201 C5 BRN
    No. 2 P0202 C6 RED
    No. 3 P0203 C7 BLU
    No. 4 P0204 C8 YEL

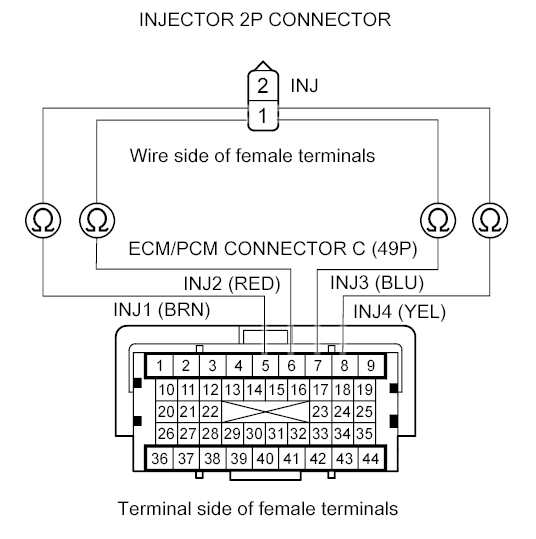

    Fig 5: Identifying Injector 2P Connector Terminal No. 1 And ECM/PCM Connector Terminal
    G00514306Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  - Go to  25.

    NO  - Repair an open in the wire between the ECM/PCM and the injector, then go to  19.

  18. Replace the problem injector (see Injector Replacement ).
  19. Reconnect all connectors.
  20. Turn the ignition switch to ON (II).
  21. Reset the ECM/PCM with the HDS.
  22. Do the ECM/PCM idle learn procedure (see ECM/PCM IDLE LEARN PROCEDURE ).
  23. Start the engine, and let it idle for 20 seconds.
  24. Check for Pending or Confirmed DTCs with the HDS.

    Is DTC P0201, P0202, P0203, or P0204 indicated?

    YES  - Check for poor connections or loose terminals at the injector and the ECM/PCM, then go to  1.

    NO  - Troubleshooting is complete. If any other Pending or Confirmed DTCs are indicated, go to the indicated DTC's troubleshooting.

  25. Reconnect all connectors.
  26. Update the ECM/PCM if it does not have the latest software (see ECM/PCM Update , or substitute a knowngood ECM/PCM (see SUBSTITUTING THE ECM/PCM ).
  27. Start the engine, and let it idle for 20 seconds.
  28. Check for Pending or Confirmed DTCs with the HDS.

    Is DTC P0201, P0202, P0203, or P0204 indicated?

    YES  - Check for poor connections or loose terminals at the injector and the ECM/PCM. If the ECM/PCM was updated, substitute a known-good ECM/PCM (see SUBSTITUTING THE ECM/PCM ), then go to  27. If the ECM/PCM was substituted, go to  1.

    NO  - If the ECM/PCM was updated, troubleshooting is complete. If the ECM/PCM was substituted, replace the original ECM/PCM (see ECM/PCM Replacement ). If any other Pending or Confirmed DTCs are indicated, go to the indicated DTC's troubleshooting.
