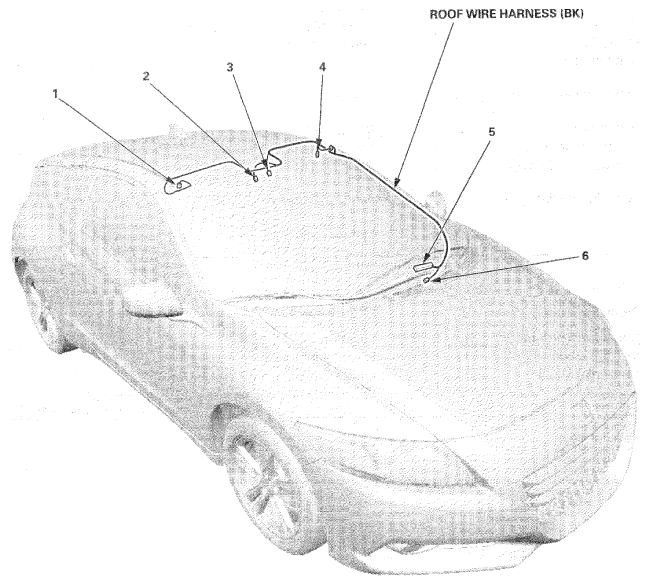

Roof Wire Harness (BK)
CONNECTOR TERMINAL REFERENCE CHART
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| Driver's vanity mirror light |
4 |
2 |
Front of roof |
|
|
| Passenger's vanity mirror light |
1 |
2 |
Front of roof |
|
|
| Individual map light |
3 |
3 |
Front of roof |
|
|
| Interior light switch |
2 |
10 |
Front of roof |
|
|
| Interior light switch |
2 |
4 |
Front of roof |
|
|
| Under-dash fuse/relay box connector H (see
UNDER-DASH FUSE/RELAY BOX
) |
6 |
8 |
Under left side of dash |
Under-dash fuse/relay box |
|
| C116 |
5 |
13 |
Under left side of dash |
Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) (BD)
) |
|
| C116 |
5 |
2 |
Under left side of dash |
Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) (BD)
) |
|
Courtesy of AMERICAN HONDA MOTOR CO., INC.
