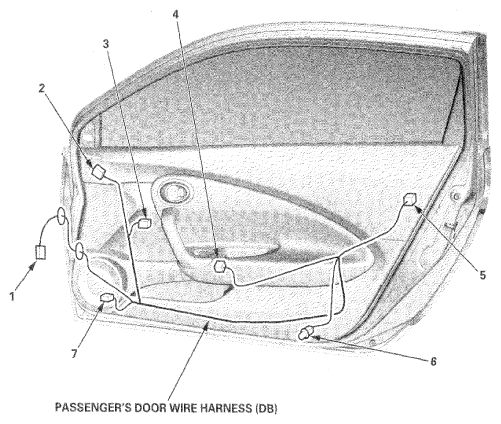

Passenger's Door Wire Harness (DB)
CONNECTOR TERMINAL REFERENCE CHART
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| Passenger's door courtesy light |
6 |
2 |
Passenger's door |
|
|
| Passenger's door lock actuator/knob switch |
5 |
10 |
Passenger's door |
|
|
| Passenger's power window motor |
3 |
2 |
Passenger's door |
|
|
| Passenger's power window switch |
4 |
8 |
Passenger's door |
|
|
| Passenger's door speaker |
7 |
2 |
Passenger's door |
|
|
| Right power mirror |
2 |
13 |
Passenger's door |
|
|
| Right power mirror |
2 |
6 |
Passenger's door |
|
|
| C123 |
1 |
23 |
Under right side of dash |
Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF PASSENGER'S SIDE) (BD)
) |
|
