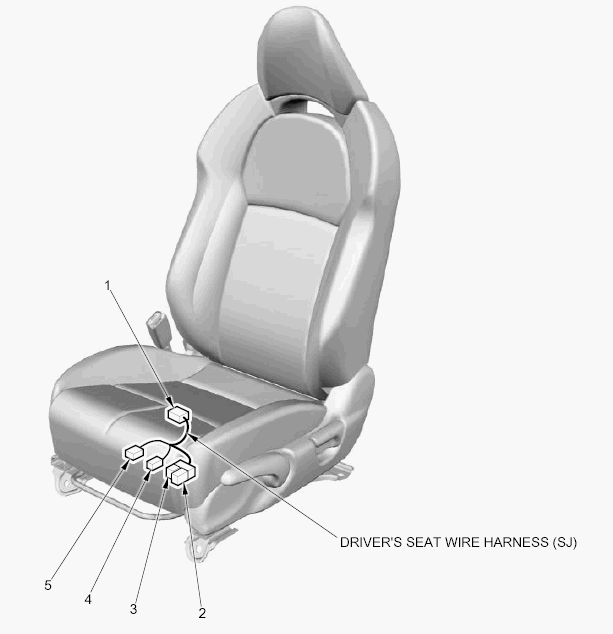

Driver's Seat Wire Harness (SJ)
CONNECTOR TERMINAL REFERENCE CHART
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Driver's seat cushion heater | 4 | 4 | Under driver's seat | ||
| Driver's seat heater relay (high) | 3 | 4 | Under driver's seat | ||
| Driver's seat heater relay (low) | 2 | 5 | Under driver's seat | ||
| Driver's seat-back heater | 1 | 2 | Under driver's seat | ||
| C504 | 5 | 5 | Under driver's seat | FLOOR WIRE HARNESS |
