Dashboard Wire Harness (View of passenger's side) (BD)

CONNECTOR TERMINAL REFERENCE CHART

Connector or Terminal	Ref	Cavities	Location	Connects to	Notes
Automatic lighting/Sunlight sensor	2	5	Right side of dash		(1)
Front passenger's airbag inflator	3	4	Right side of dash
Glove box light	1	2	Right side of dash
HandsFreeLink control unit	8	28	Under right side of dash		(4)
Passenger's footwell light	9	2	Under right side of dash		(3)
Right tweeter	4	2	Right side of dash
Sunlight sensor	2	2	Right side of dash		(2)
C101	6	4	Under right side of dash	Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (BA)  )
C103	5	20	Under right side of dash	Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (BA)  )
C123	7	23	Under right side of dash	Passenger's door wire harness (see PASSENGER'S DOOR WIRE HARNESS (DB)  )
(1) With auto light (2) Without auto light (3) With footwell light (4) With HandsFreeLink system

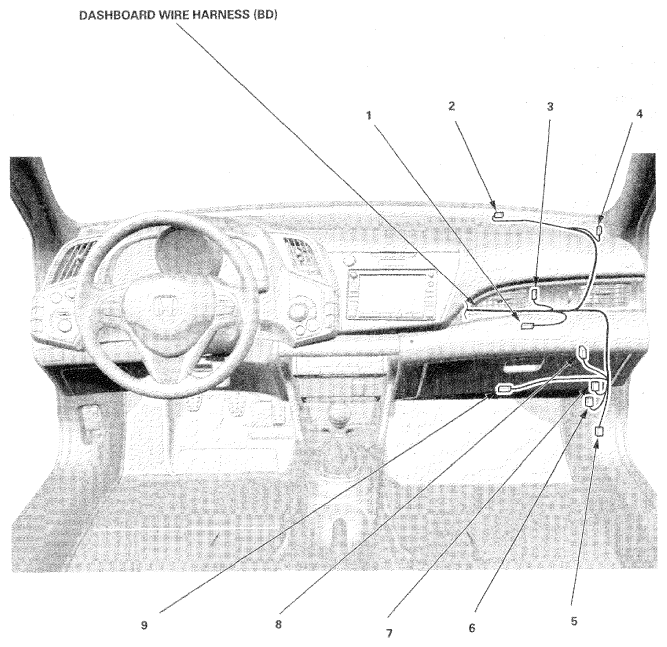

Fig 1: Identifying Dashboard Wire Harness (BD)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
