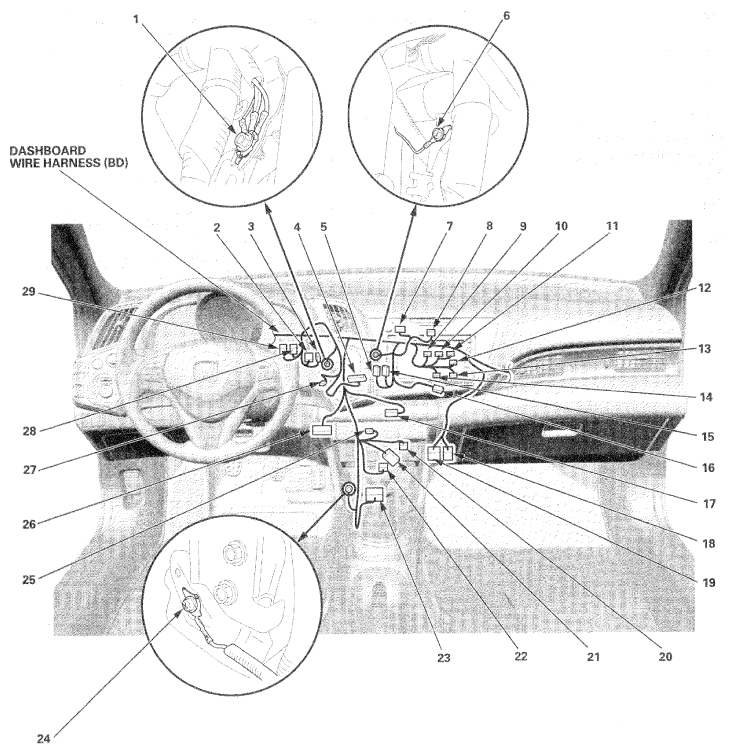

Dashboard Wire Harness (View of middle section) (BD)
CONNECTOR TERMINAL REFERENCE CHART
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| Accessory power socket |
20 |
2 |
Under middle of dash |
|
|
| Audio-navigation unit connector A |
14 |
24 |
Middle of dash |
|
|
| Audio-navigation unit connector B |
12 |
24 |
Middle of dash |
|
|
| Audio-navigation unit connector C |
11 |
8 |
Middle of dash |
|
|
| Audio-navigation unit connector D |
10 |
12 |
Middle of dash |
|
|
| Audio-navigation unit connector E |
13 |
14 |
Middle of dash |
|
|
| Audio unit connector A |
14 |
24 |
Middle of dash |
|
|
| Audio unit connector D |
9 |
12 |
Middle of dash |
|
|
| Audio unit connector E |
13 |
14 |
Middle of dash |
|
|
| Auxiliary jack assembly |
25 |
5 |
Under middle of dash |
|
|
| Climate control unit |
4 |
36 |
Middle of dash |
|
|
| Console box light |
17 |
2 |
Middle of dash |
|
|
| Data link connector (DLC) |
26 |
16 |
Under middle of dash |
|
|
| Front passenger's airbag cutoff indicator |
8 |
5 |
Middle of dash |
|
|
| Hazard warning switch |
7 |
5 |
Middle of dash |
|
|
| Humidity/in-car temperature sensor |
27 |
4 |
Middle of dash |
|
|
| SRS unit |
23 |
39 |
Under middle of dash |
|
|
| Stereo amplifier A |
15 |
20 |
Middle of dash |
|
|
| Stereo amplifier B |
5 |
12 |
Middle of dash |
|
|
| TPMS control unit |
3 |
20 |
Middle of dash |
|
|
| USB adapter control unit |
16 |
14 |
Middle of dash |
|
|
| Yaw rate-acceleration sensor |
22 |
4 |
Under middle of dash |
|
|
Courtesy of AMERICAN HONDA MOTOR CO., INC. CONNECTOR TERMINAL REFERENCE CHART
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| C113 |
18 |
2 |
Under middle of dash |
A/C wire harness (see A/C WIRE HARNESS (BL)
) |
|
| C115 |
21 |
18 |
Under middle of dash |
Floor wire harness (see FLOOR WIRE HARNESS (SA)
) |
'11 model
CVT |
| C115 |
21 |
13 |
Under middle of dash |
Floor wire harness (see FLOOR WIRE HARNESS (SA)
) |
'11 model
M/T |
| C115 |
21 |
23 |
Under middle of dash |
Floor wire harness (see FLOOR WIRE HARNESS (SA)
) |
'12 model |
| C117 |
19 |
16 |
Under middle of dash |
A/C wire harness (see A/C WIRE HARNESS (BL)
) |
|
| C119 (Junction connector) |
28 |
12 |
Middle of dash |
|
|
| C120 (Junction connector) |
2 |
12 |
Middle of dash |
|
|
| C121 (Junction connector) |
29 |
12 |
Middle of dash |
|
|
| G502 |
1 |
|
Middle of dash |
Body ground, via dashboard wire harness |
|
| G503 |
6 |
|
Middle of dash |
Body ground, via dashboard wire harness |
|
| G504 |
24 |
|
Under middle of dash |
Body ground, via dashboard wire harness |
|
