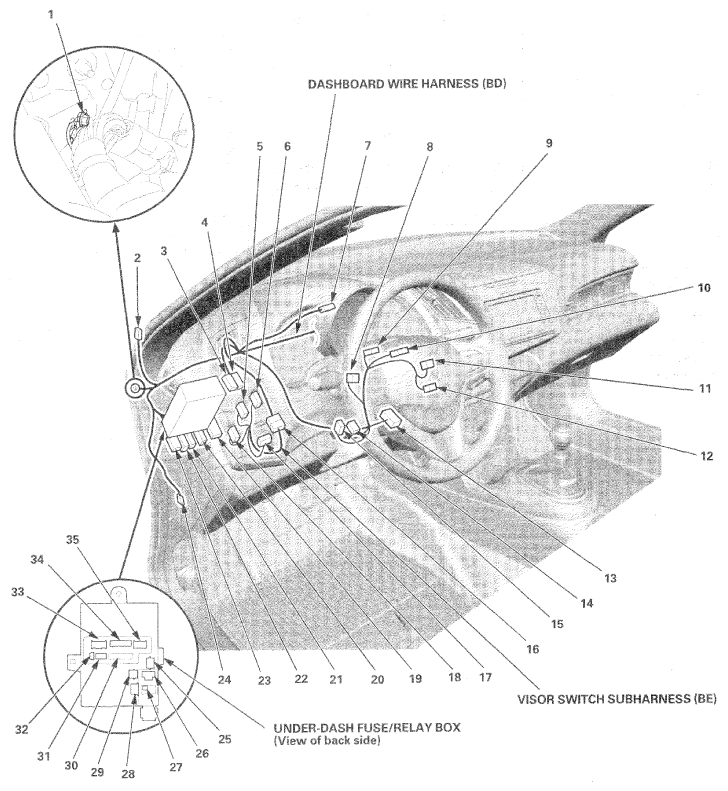

Dashboard Wire Harness (View of driver's side) (BD)
CONNECTOR TERMINAL REFERENCE CHART
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| Cable reel |
9 |
10 |
In steering column |
|
|
| Combination light switch |
11 |
12 |
In steering column |
|
|
| Driver's airbag inflator |
10 |
4 |
In steering column |
|
|
| Driver's door unlock relay |
4 |
5 |
Under left side of dash |
|
|
| Driver's footwell light |
24 |
2 |
Under left side of dash |
|
|
| Gauge control module |
7 |
32 |
Behind gauge |
|
|
| Hatch release actuator relay |
3 |
5 |
Under left side of dash |
|
|
| Ignition switch |
15 |
7 |
In steering column |
|
|
| Immobilizer-keyless control unit |
14 |
7 |
In steering column |
|
|
| Left tweeter |
2 |
2 |
Left side of dash |
|
|
| Steering angle sensor |
12 |
5 |
In steering column |
|
|
| Steering lock |
13 |
6 |
In steering column |
|
|
| Under-dash fuse/relay box connector AA (see
UNDER-DASH FUSE/RELAY BOX
) |
30 |
28 |
Under left side of dash |
|
|
| Under-dash fuse/relay box connector AB (see
UNDER-DASH FUSE/RELAY BOX
) |
25 |
3 |
Under left side of dash |
|
|
| Under-dash fuse/relay box connector AC (see
UNDER-DASH FUSE/RELAY BOX
) |
26 |
2 |
Under left side of dash |
|
|
| Under-dash fuse/relay box connector AD (see
UNDER-DASH FUSE/RELAY BOX
) |
29 |
1 |
Under left side of dash |
|
|
| Under-dash fuse/relay box connector AE (see
UNDER-DASH FUSE/RELAY BOX
) |
28 |
3 |
Under left side of dash |
|
|
| Under-dash fuse/relay box connector AF (see
UNDER-DASH FUSE/RELAY BOX
) |
27 |
3 |
Under left side of dash |
|
|
| Under-dash fuse/relay box connector N (see
UNDER-DASH FUSE/RELAY BOX
) |
33 |
10 |
Under left side of dash |
|
|
| Under-dash fuse/relay box connector Q (see
UNDER-DASH FUSE/RELAY BOX
) |
34 |
34 |
Under left side of dash |
|
|
| Under-dash fuse/relay box connector R (see
UNDER-DASH FUSE/RELAY BOX
) |
35 |
8 |
Under left side of dash |
|
|
| Under-dash fuse/relay box connector T (see
UNDER-DASH FUSE/RELAY BOX
) |
32 |
4 |
Under left side of dash |
|
|
| Under-dash fuse/relay box connector Y (see
UNDER-DASH FUSE/RELAY BOX
) |
31 |
16 |
Under left side of dash |
|
|
| Wiper/washer switch |
8 |
8 |
In steering column |
|
|
Courtesy of AMERICAN HONDA MOTOR CO., INC. CONNECTOR TERMINAL REFERENCE CHART
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| C106 |
20 |
12 |
Under left side of dash |
Driver's side wire harness (see DRIVER'S SIDE WIRE HARNESS (BB)
) |
|
| C112 |
23 |
4 |
Under left side of dash |
Left engine compartment wire harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS (BF)
) |
|
| C114 |
19 |
18 |
Under left side of dash |
Driver's door wire harness (see DRIVER'S DOOR WIRE HARNESS (DA)
) |
|
| C116 |
21 |
13 |
Under left side of dash |
Roof wire harness (see ROOF WIRE HARNESS (BK)
) |
|
| C116 |
21 |
2 |
Under left side of dash |
Roof wire harness (see ROOF WIRE HARNESS (BK)
) |
|
| C118 |
16 |
24 |
Under left side of dash |
Visor switch subharness |
|
| C122 |
22 |
20 |
Under left side of dash |
Left engine compartment wire harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS (BF)
) |
|
| G501 |
1 |
|
Under left side of dash |
Body ground, via dashboard wire harness |
|
