Without HID

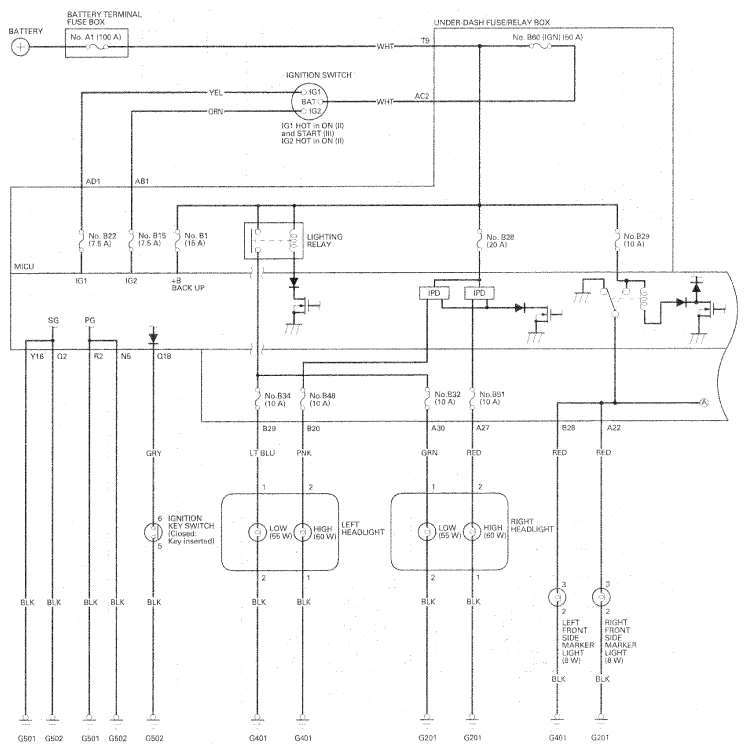

Fig 1: Headlights (Without HID) - Circuit Diagram (1 Of 2)
G06953955Courtesy of AMERICAN HONDA MOTOR CO., INC.

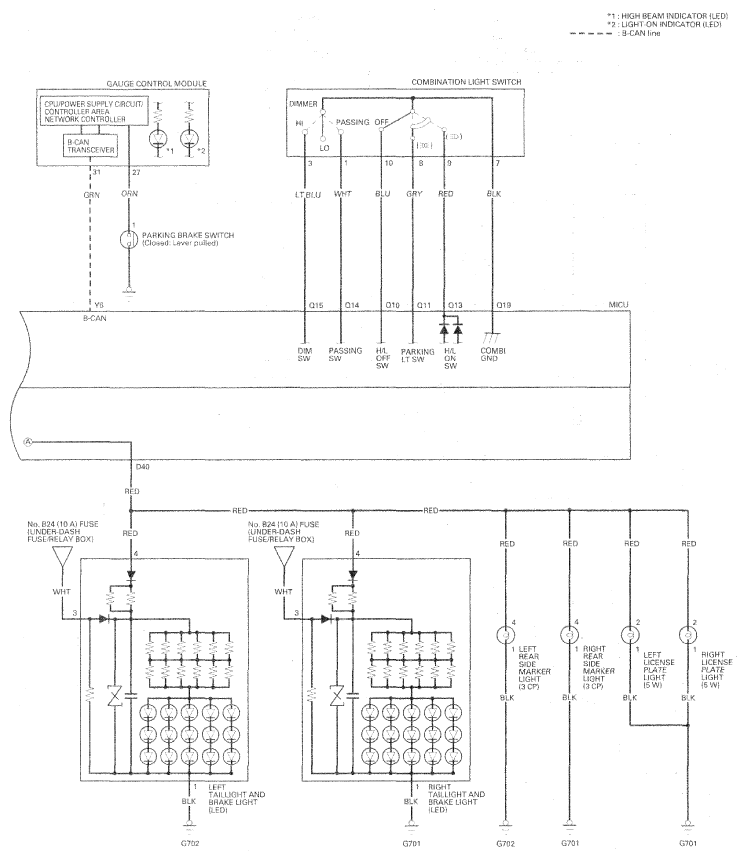

Fig 2: Headlights (Without HID) - Circuit Diagram (2 Of 2)
G06953956Courtesy of AMERICAN HONDA MOTOR CO., INC.
