HID Bulb (Headlight Low Beam)

WARNING: A transient high tension (25, 000 V) occurs at the bulb sockets of the high intensity discharge (HID) lamps when the combination light switch is turned ON, that may cause serious electrical shock or electrocution if you do not observe the cautions.

CAUTION:

Never turn on the combination light switch before fitting the HID bulbs to their bulb sockets and completing the reassembly of the headlight assembly.
Do not service the headlights assembly in wet conditions, such as rain or snow, near a sprinkler system, or when your hands are wet to prevent electrocution.
Do not touch the surface of the HID bulbs with your bare hands and do not stain it with any oils and fats.
Do not disassemble the inverter unit and the igniter unit.
Do not turn on the HID bulb by using a power source other than the battery mounted on your vehicle.

Turn the combination light switch OFF.
Turn the ignition switch to LOCK (0).
Do the 12 volt battery terminal disconnection procedure (see 12 VOLT BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
Turn the cover (A) 30° counterclockwise to remove it from the headlight assembly.

Fig 1: Remove HID Bulb From Headlight Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.

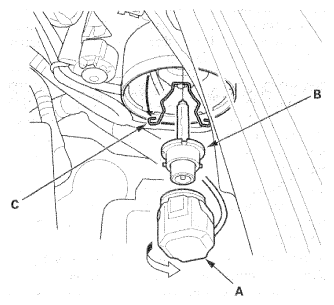

Turn the bulb socket (A) 45° counterclockwise to remove it from the bulb (B).
Headlight: 35 W

Fig 2: Turning Bulb Socket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull the retaining spring (C) away from the bulb, then remove the bulb.
Install a new bulb in the reverse order of removal. Make sure the notches in the bulb align with the tabs in the headlight.
NOTE: Do not touch the glass of the bulb with your hands. If necessary, clean the glass area with alcohol.
Install the parts in the reverse order of removal.
Do the 12 volt battery terminal reconnection procedure (see 12 VOLT BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
