Center Console Subharness

CENTER CONSOLE SUBHARNESS CONNECTOR REFERENCE CHART

Connector or Terminal Ref Cavities Location Connects to Notes
AC power outlet 5 3 Center console   (2)
Console Box Light 1 3 2 Center console
Console Box Light 2 1 2 Center console
Rear accessory power socket 2 2 Center console
C505 4 6 Center console Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH) ) (1)
C505 4 8 Center console Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH) ) (2)
(1) SPORT, RT, RTS, VP, and DX models

(2) RTL and EX-L models

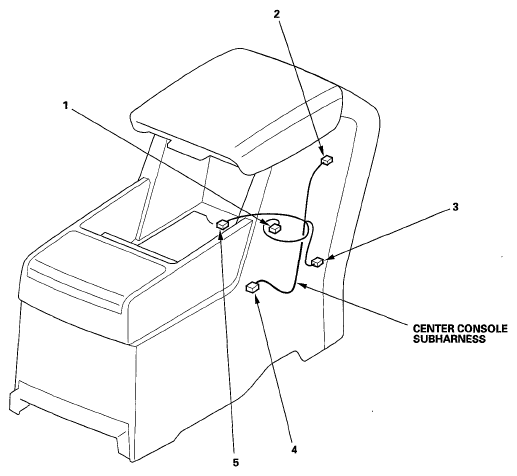

Fig 1: Identifying Center Console Subharness
G05968613Courtesy of AMERICAN HONDA MOTOR CO., INC.
