Front Splash Shield Replacement

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body and related parts.

2012 model: Remove the front strake (see Front Strake Replacement ).
Remove the splash shield (A).
1. -1 From under the front bumper (B), remove the bolts (C), then turn down the bumper, and remove the clip (D).
2. -2 Remove the clips (E, F) that secure the front inner fender (G) and the splash shield to the body.
3. -3 Pull out the splash shield.

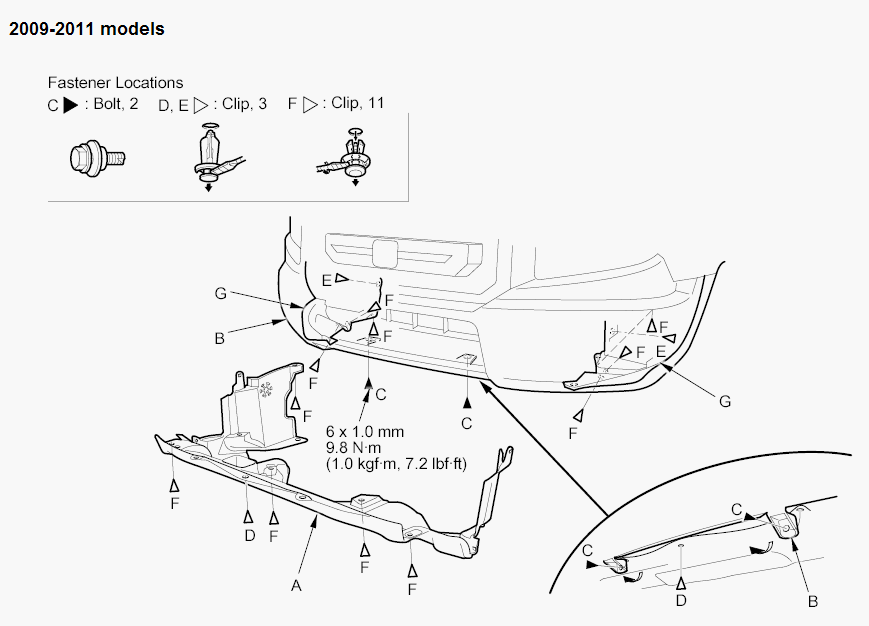

Fig 1: Front Splash Shield Screws, Bolts And Clips With Torque Specifications (2009-2011 Models) (1 of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

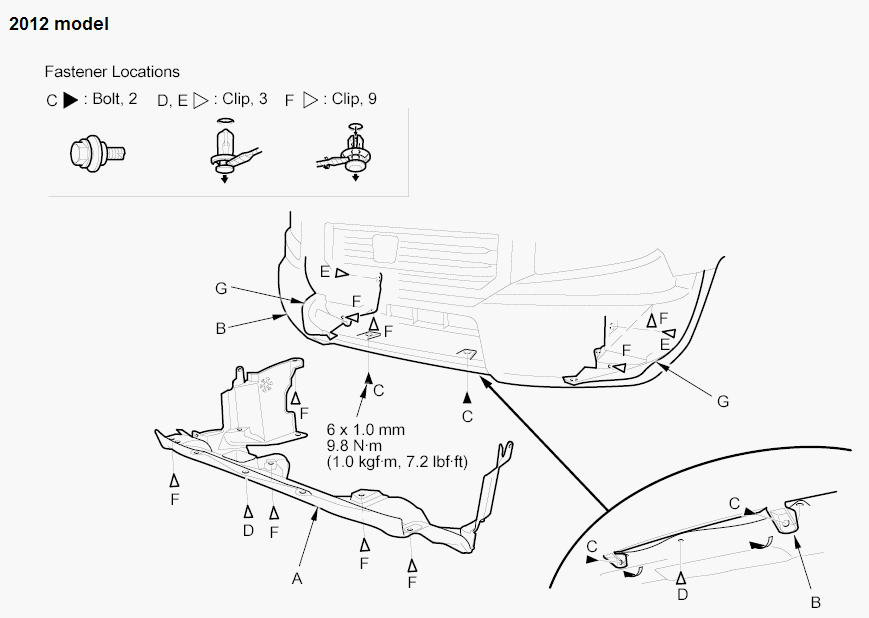

Fig 2: Front Splash Shield Screws, Bolts And Clips With Torque Specifications (2012 Model) (2 of 2)

G00507540

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Install the splash shield in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
2012 model: Install the front strake (see Front Strake Replacement ).
