Circuit Diagram

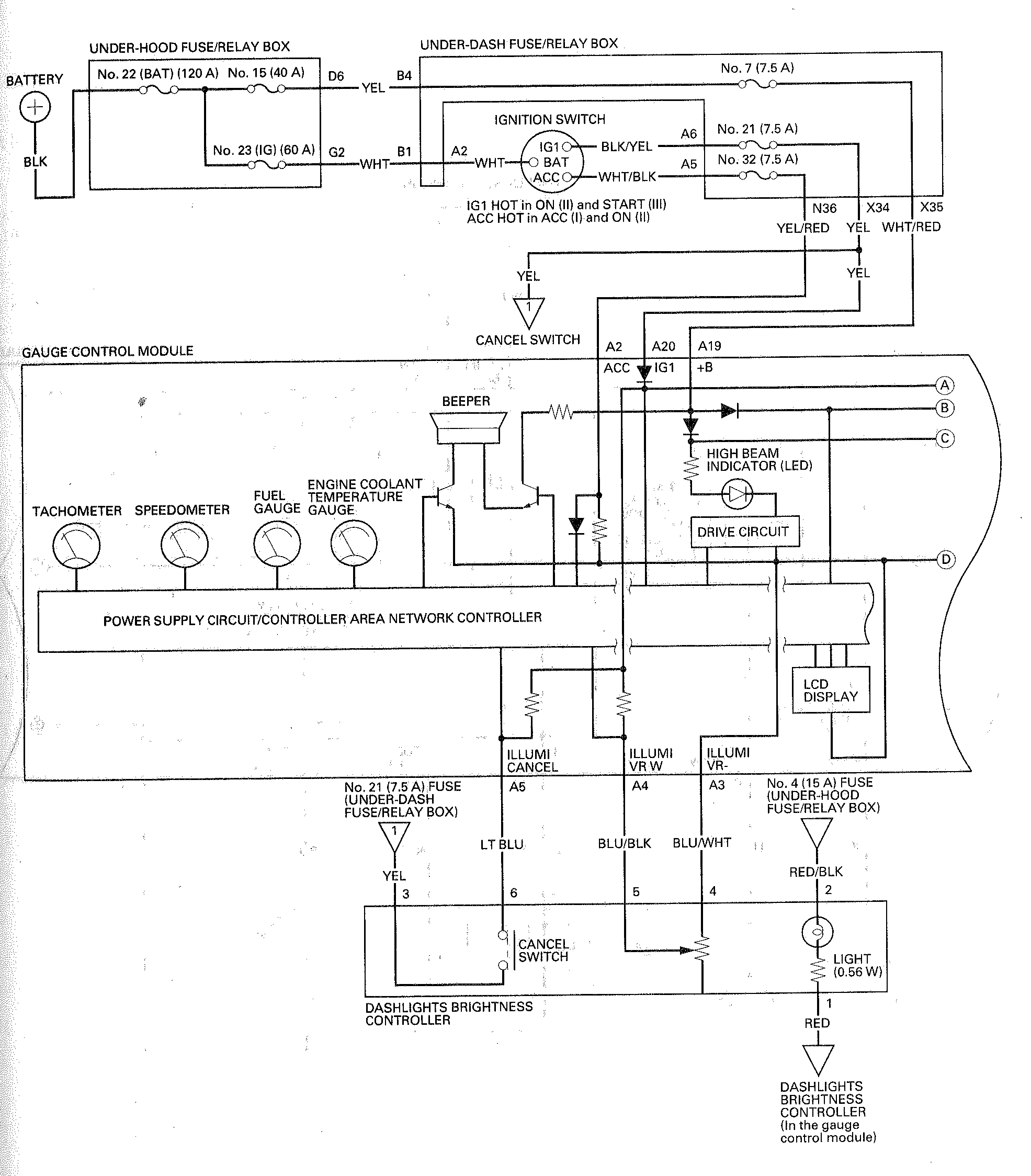

Fig 1: Gauges - Circuit Diagram (1 Of 7)

G00507541

Courtesy of AMERICAN HONDA MOTOR CO., INC.

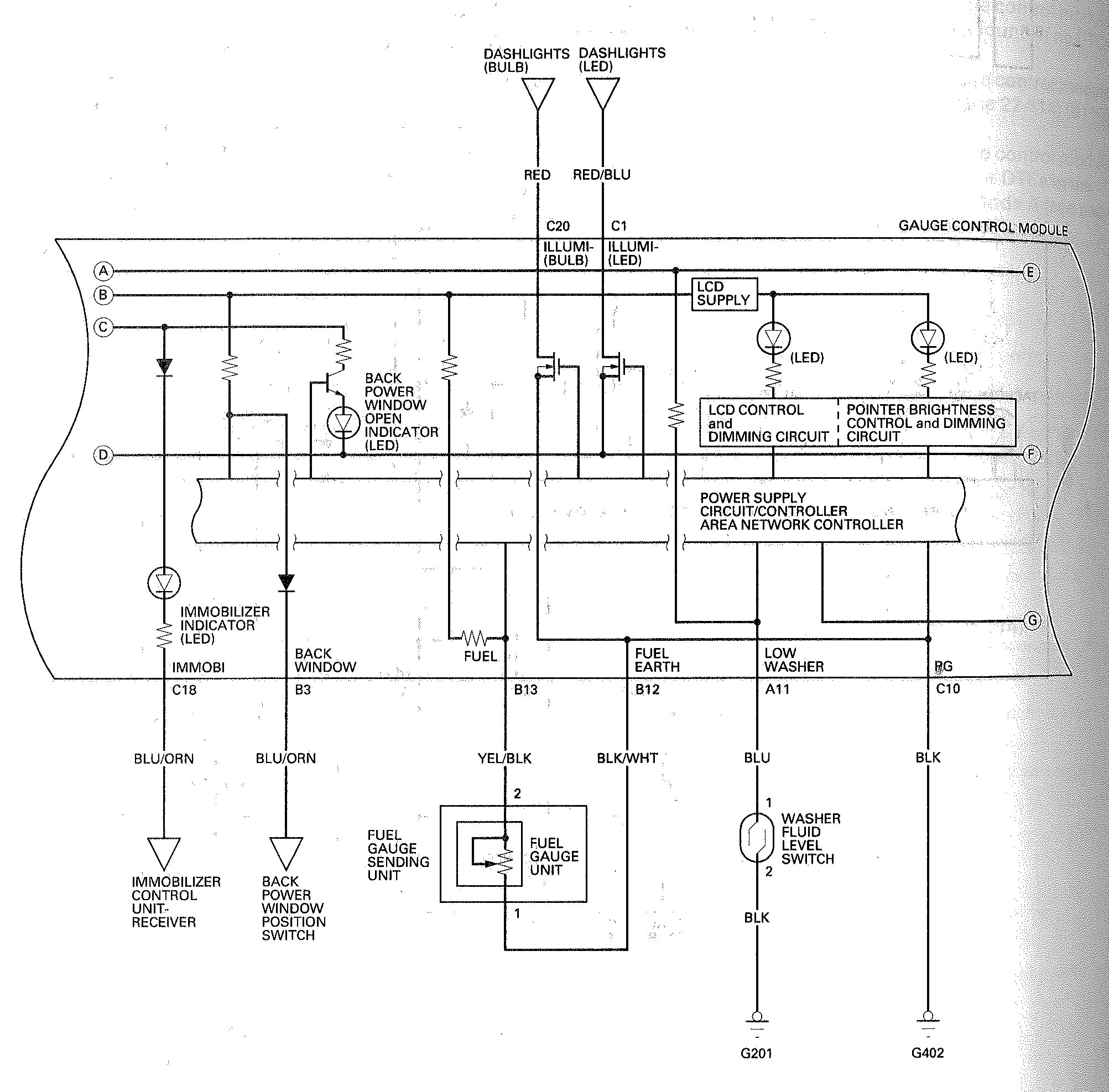

Fig 2: Gauges - Circuit Diagram (2 Of 7)

G00507542

Courtesy of AMERICAN HONDA MOTOR CO., INC.

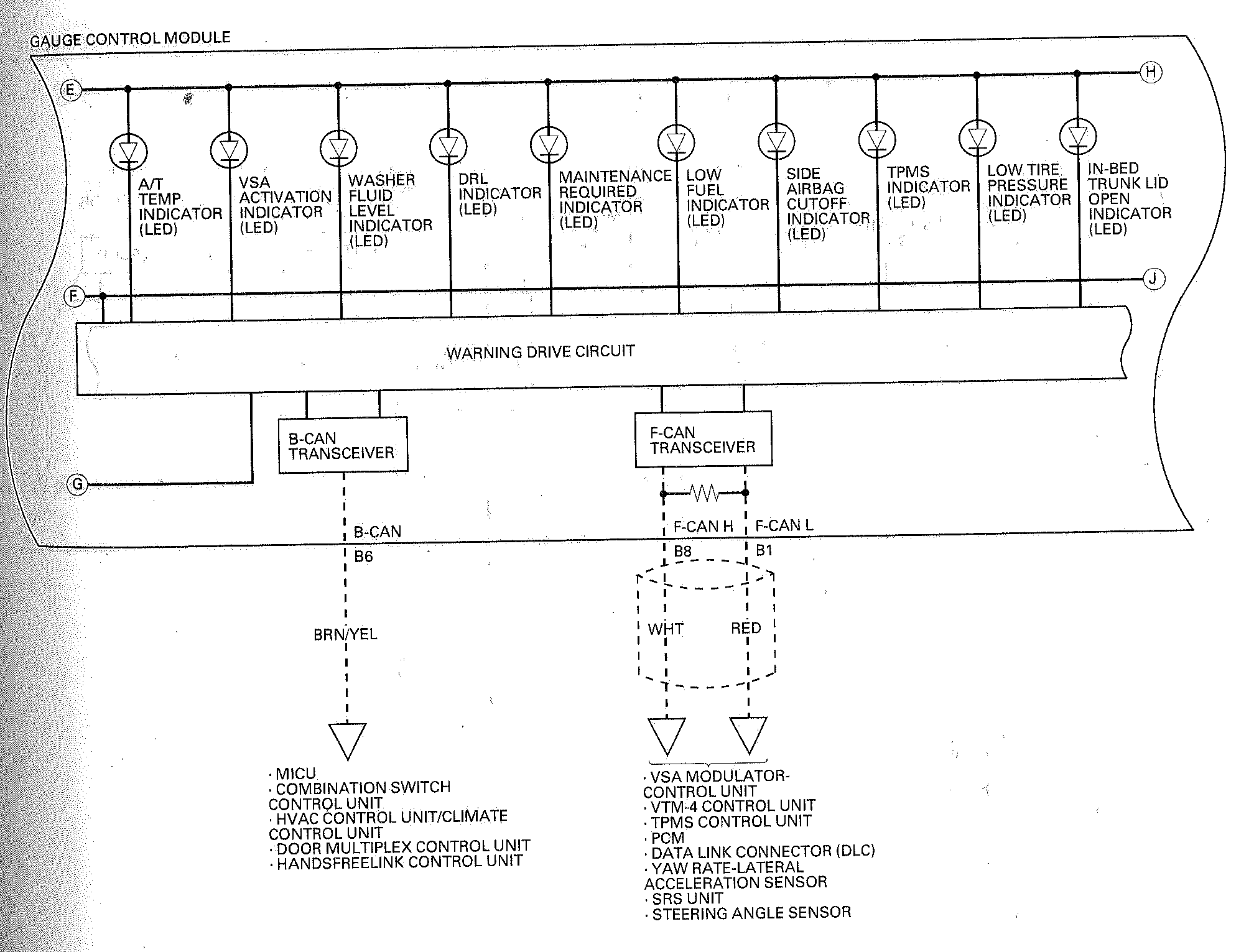

Fig 3: Gauges - Circuit Diagram (3 Of 7)

G00507544

Courtesy of AMERICAN HONDA MOTOR CO., INC.

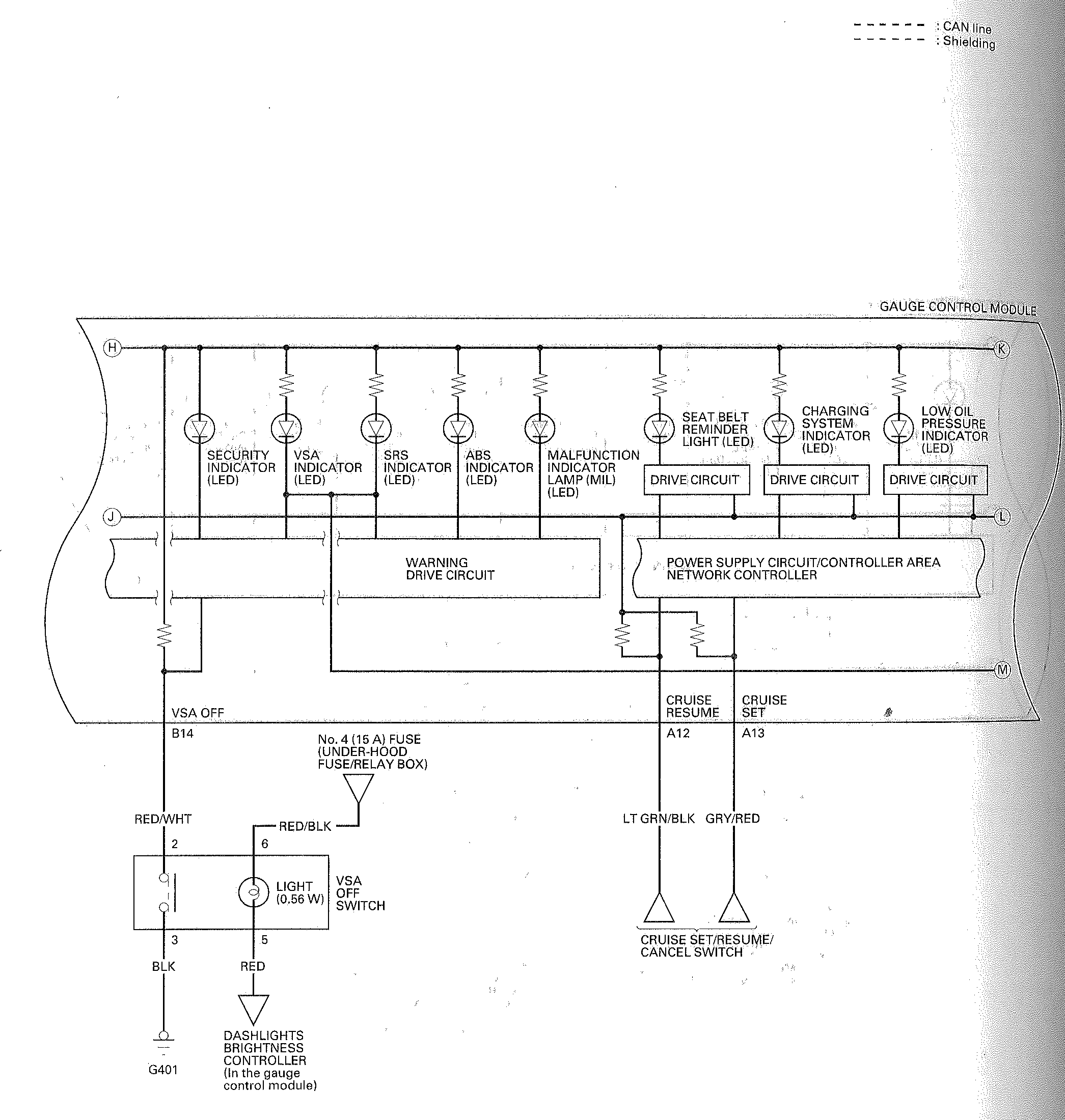

Fig 4: Gauges - Circuit Diagram (4 Of 7)

G00507545

Courtesy of AMERICAN HONDA MOTOR CO., INC.

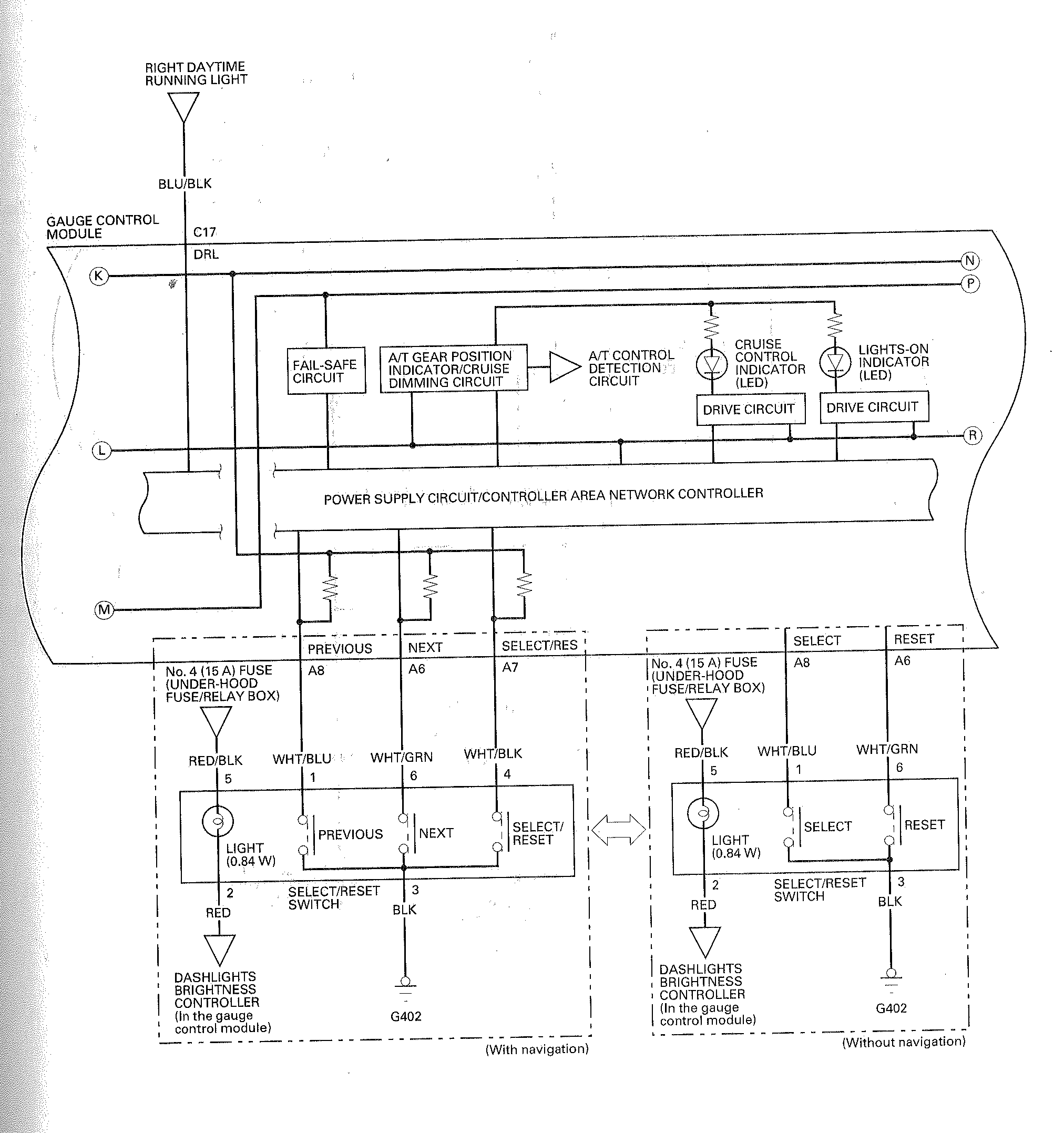

Fig 5: Gauges - Circuit Diagram (5 Of 7)

G00507546

Courtesy of AMERICAN HONDA MOTOR CO., INC.

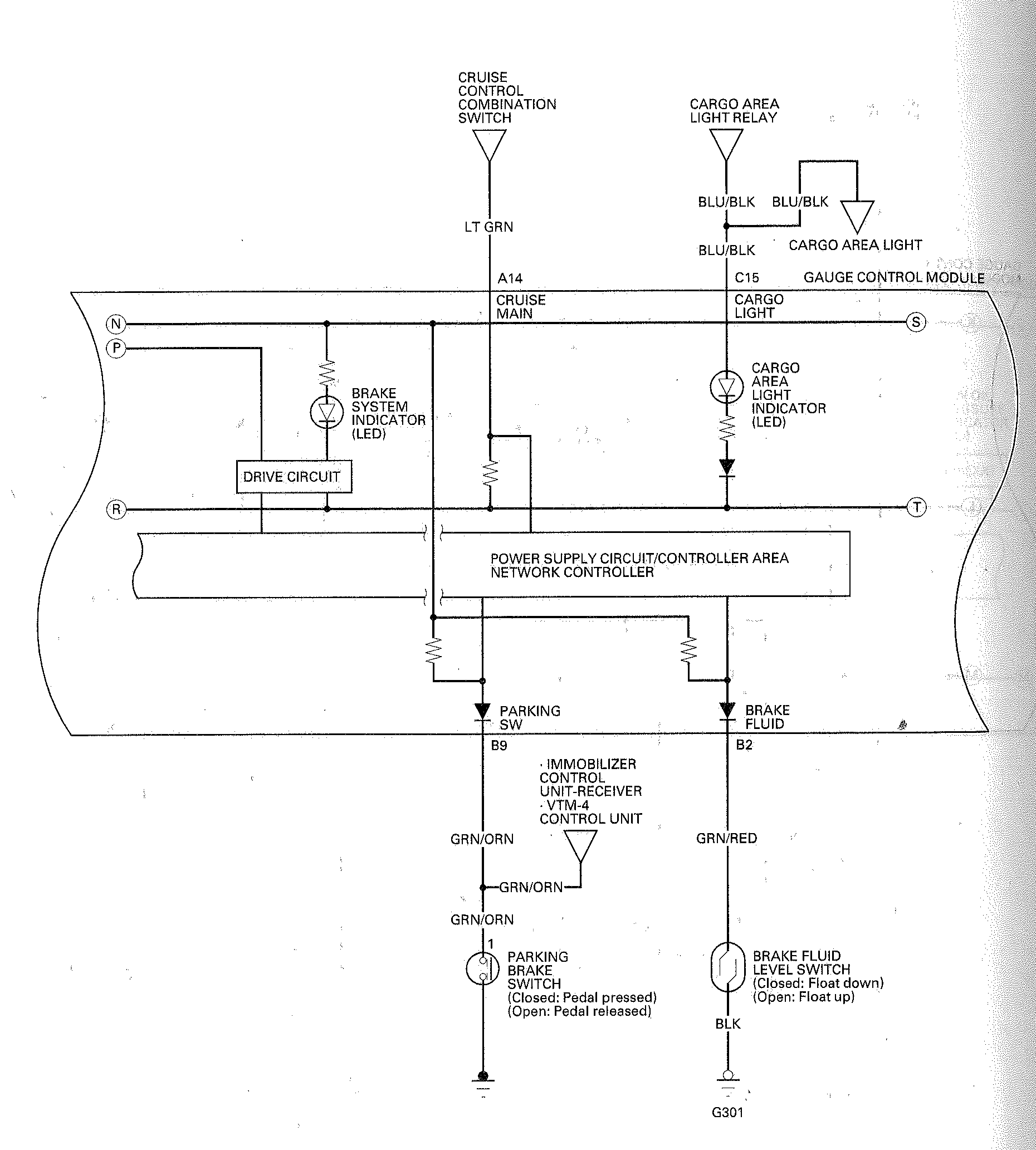

Fig 6: Gauges - Circuit Diagram (6 Of 7)

G00507548

Courtesy of AMERICAN HONDA MOTOR CO., INC.

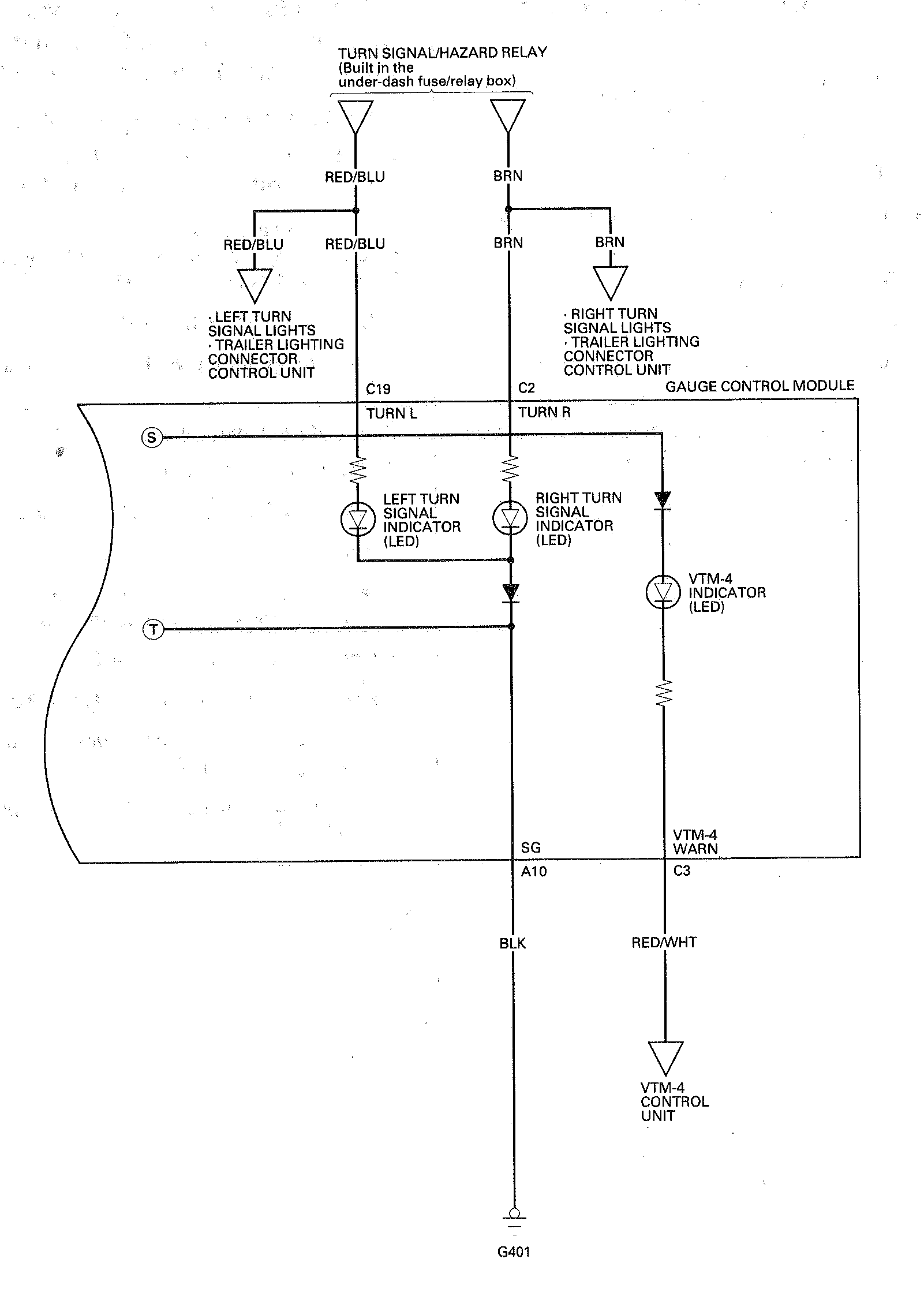

Fig 7: Gauges - Circuit Diagram (7 Of 7)

G00507549

Courtesy of AMERICAN HONDA MOTOR CO., INC.
