Rear Differential Subharness B

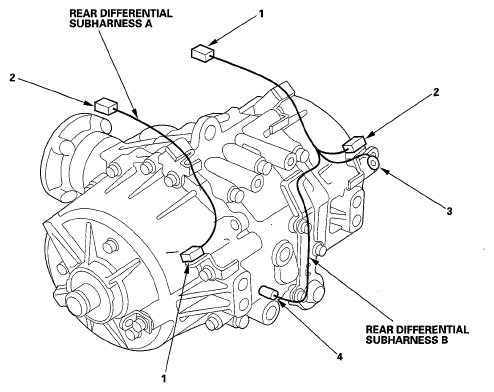

REAR DIFFERENTIAL SUBHARNESS B CONNECTOR REFERENCE CHART
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Right clutch electromagnetic coil | 2 | 2 | Rear differential | ||
| Differential oil temperature sensor | 4 | 2 | Rear differential | ||
| C603 | 1 | 6 | Rear differential | Rear wire harness (see REAR WIRE HARNESS ) | |
| T6 | 3 | Rear differential | Rear differential housing |
