ODS Unit Harness

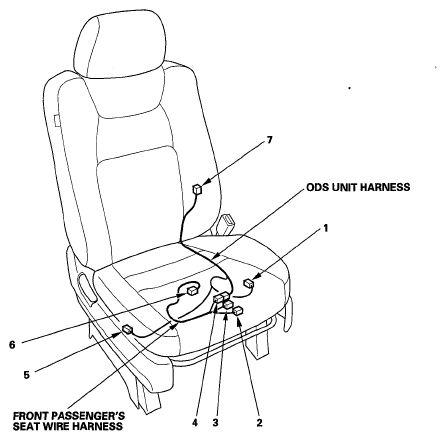

ODS UNIT HARNESS CONNECTOR REFERENCE CHART
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Inner side front passenger's seat weight sensor | 1 | 3 | Under front passenger's seat | ||
| ODS unit | 7 | 18 | Left side of front passenger's seat back | ||
| Outer side front passenger's seat weight sensor | 5 | 2 | Under front passenger's seat | ||
| C801 | 4 | 4 | Under front passenger's seat | Front passenger's seat wire harness |
