Ignition Switch Harness

IGNITION SWITCH HARNESS CONNECTOR REFERENCE CHART

Connector or Terminal Ref Cavities Location Connects to Notes
Under-dash fuse/relay box connector A (see UNDER-DASH FUSE/RELAY BOX ) 1 6 Left kick panel

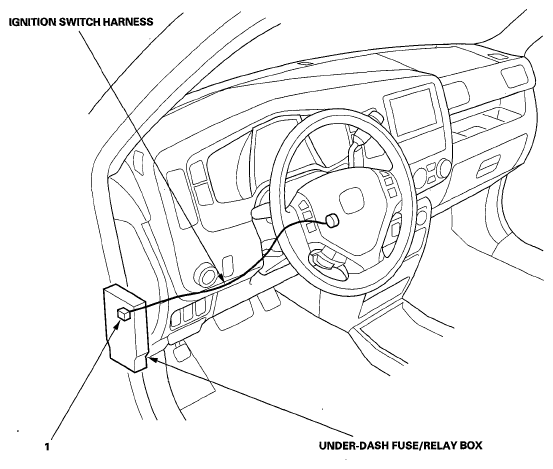

Fig 1: Identifying Ignition Switch Harness And Under-Dash Fuse/Relay Box
G05968612Courtesy of AMERICAN HONDA MOTOR CO., INC.
