Engine Ground Cable B

ENGINE GROUND CABLE B CONNECTOR HARNESS REFERENCE CHART

Connector or Terminal Ref Cavities Location Connects to Notes
T3 5   Left side of engine compartment Transmission housing
(-)     Battery Battery negative terminal

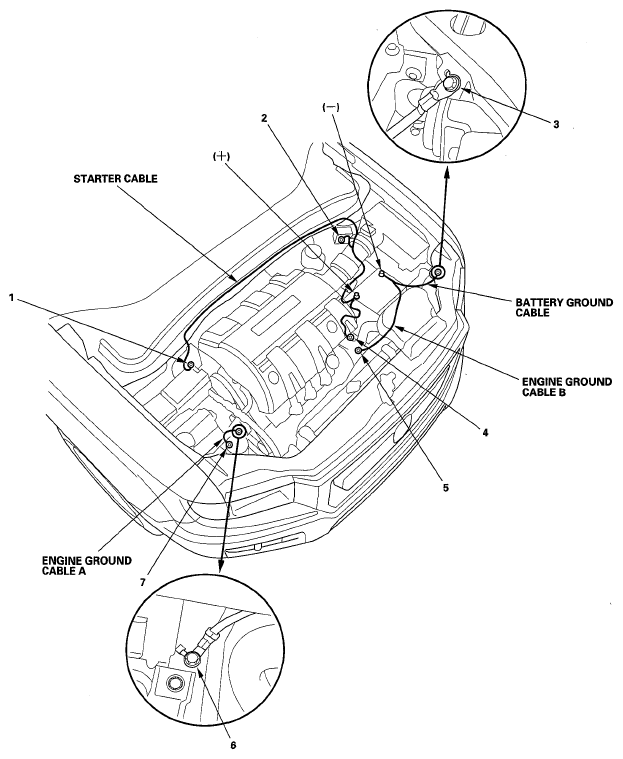

Fig 1: Identifying Starter Cable, Battery Ground Cable, Engine Ground Cable And Transmission Ground Cable Connector Harness
G05968592Courtesy of AMERICAN HONDA MOTOR CO., INC.
