Driver's Door Subharness

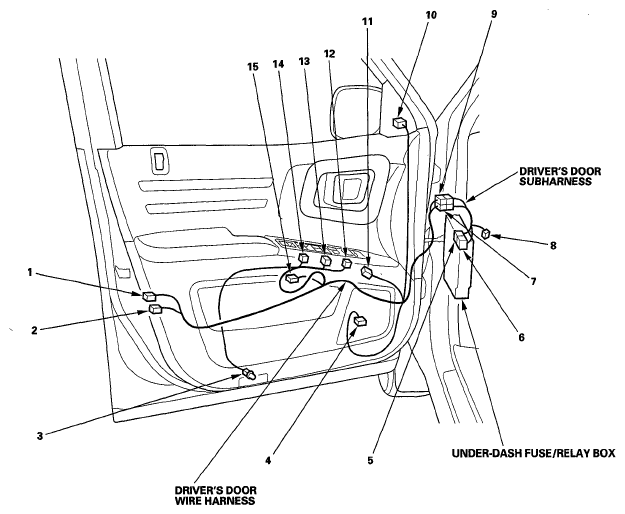

DRIVER'S DOOR SUBHARNESS CONNECTOR REFERENCE CHART
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Under-dash fuse/relay box connector J (see UNDER-DASH FUSE/RELAY BOX ) | 6 | 21 | Left kick panel | ||
| Under-dash fuse/relay box connector K (see UNDER-DASH FUSE/RELAY BOX ) | 5 | 12 | Left kick panel | ||
| C453 | 9 | 20 | Driver's door | Driver's door wire harness | |
| C454 | 7 | 17 | Driver's door | Driver's door wire harness | |
| C502 | 8 | 8 | Left kick panel | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
