Tailgate Wire Harness (With navigation)

TAILGATE WIRE HARNESS CONNECTOR REFERENCE CHART (WITH NAVIGATION SYSTEM)

Connector or Terminal Ref Cavities Location Connects to Notes
Rearview camera 10 4 In-Bed trunk lid
C605 11 4 In-Bed trunk lid Rear wire harness (see REAR WIRE HARNESS )

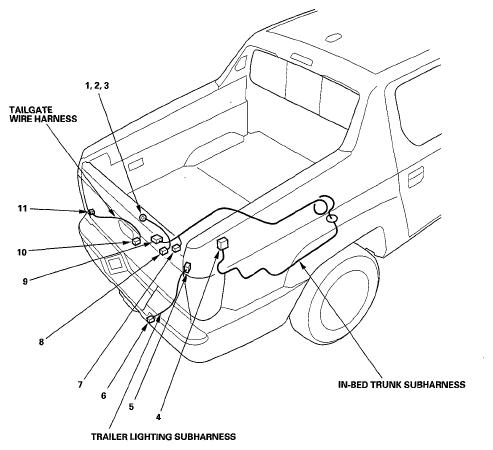

Fig 1: Identifying Tailgate Wire Harness, Trailer Lighting Subharness And In-Bed Trunk Subharness
G05968608Courtesy of AMERICAN HONDA MOTOR CO., INC.
