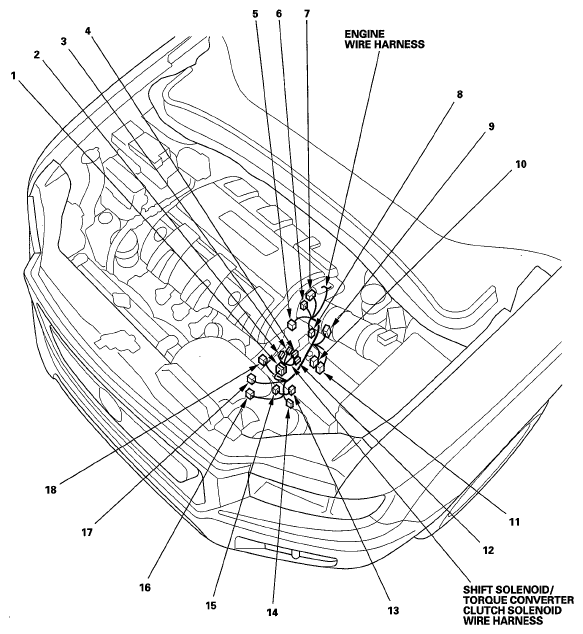

Shift Solenoid/Torque Converter Clutch Solenoid Wire Harness
SHIFT SOLENOID/TORQUE CONVERTER CLUTCH SOLENOID WIRE HARNESS CONNECTOR REFERENCE CHART
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Shift solenoid valve A | 2 | 1 | In transmission | ||
| Shift solenoid valve B | 12 | 1 | In transmission | ||
| Shift solenoid valve C | 3 | 1 | In transmission | ||
| Torque converter clutch solenoid | 4 | 1 | In transmission | ||
| C151 | 1 | 5 | Front of transmission | Engine wire harness |
