Seat Position Sensor Harness (SPORT, RT, VP and DX models)

SEAT POSITION SENSOR HARNESS CONNECTOR REFERENCE CHART

Connector or Terminal	Ref	Cavities	Location	Connects to	Notes
Driver's seat position sensor	4	2	Driver's seat
C511	7	2	Right side of driver's seat	Floor harness (see FLOOR WIRE HARNESS (LEFT BRANCH) )

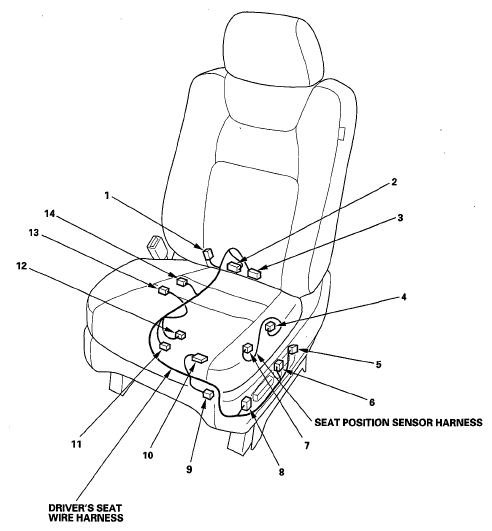

Fig 1: Identifying Driver's Seat Wire Harness And Seat Position Sensor Harness

Courtesy of AMERICAN HONDA MOTOR CO., INC.
