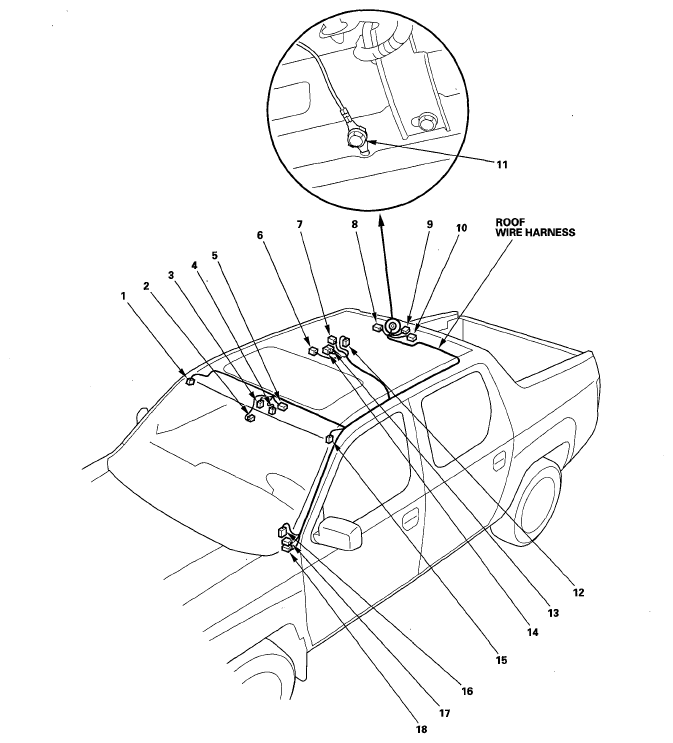

Roof Wire Harness
ROOF WIRE HARNESS CONNECTOR REFERENCE CHART
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| Ambient light |
4 |
10 |
Roof |
|
|
| Automatic inside dimming mirror |
5 |
4 |
Roof |
|
Optional |
| Driver's vanity mirror light |
15 |
2 |
Roof |
|
|
| Electrical compass unit |
2 |
7 |
Roof |
|
|
| Front individual map light |
3 |
3 |
Roof |
|
|
| Front passenger's vanity mirror light |
1 |
2 |
Roof |
|
|
| High mount brake light |
9 |
2 |
Roof |
|
|
| Left side curtain airbag inflator |
10 |
2 |
Roof |
|
|
| Moonroof open relay |
13 |
5 |
Roof |
|
|
| Moonroof close relay |
14 |
5 |
Roof |
|
|
| Moonroof limit switch |
7 |
4 |
Roof |
|
|
| Moonroof motor |
6 |
2 |
Roof |
|
|
| Rear ceiling light |
12 |
3 |
Roof |
|
|
| Right side curtain airbag inflator |
8 |
2 |
Roof |
|
|
| Under-dash fuse/relay box connector W (see
UNDER-DASH FUSE/RELAY BOX
) |
17 |
5 |
Left kick panel |
|
|
| C401 |
18 |
23 |
Left kick panel |
Dashboard wire harness (see
DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
|
| C501 |
16 |
4 |
Left kick panel |
Floor wire harness (see
FLOOR WIRE HARNESS (LEFT BRANCH) ) |
|
| G551 |
11 |
|
Roof |
Body ground, via roof wire harness |
|
