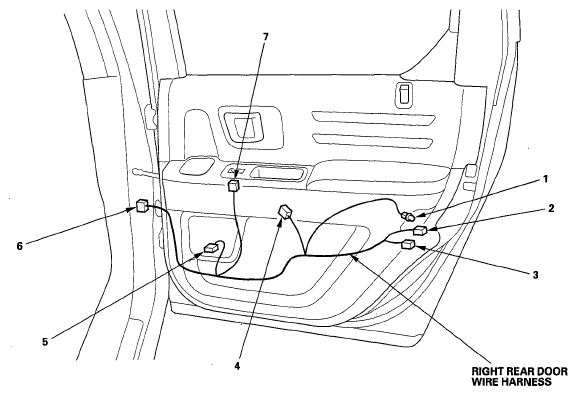

Right Rear Door Wire Harness
RIGHT REAR DOOR WIRE HARNESS CONNECTOR REFERENCE CHART
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Right rear door courtesy light | 1 | 2 | Right rear door | ||
| Right rear door lock actuator | 3 | 2 | Right rear door | ||
| Right rear door lock knob switch | 2 | 3 | Right rear door | ||
| Right rear door speaker | 5 | 2 | Right rear door | ||
| Right rear power window motor | 4 | 2 | Right rear door | ||
| Right rear power window switch | 7 | 6 | Right rear door | ||
| C507 | 6 | 12 | Right B-pillar | Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH) ) |
