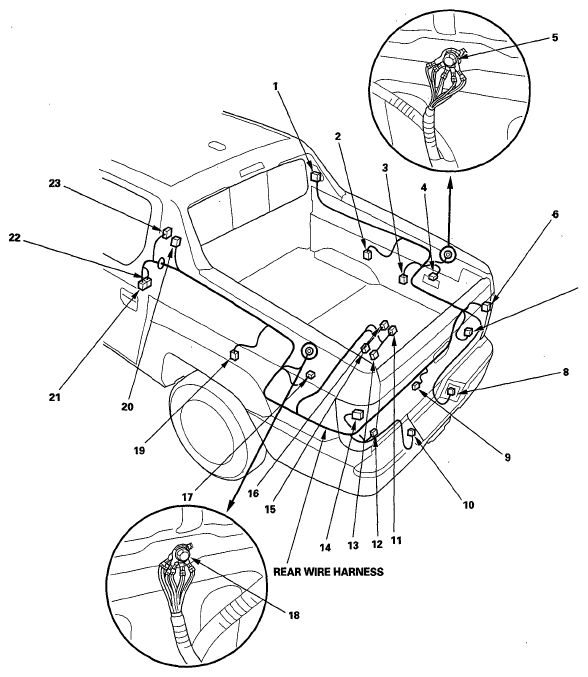

Rear Wire Harness
REAR WIRE HARNESS CONNECTOR REFERENCE CHART
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| Back power window position switch |
23 |
2 |
Under floor |
|
|
| Left back-up light/brake light/rear turn signal light/taillight |
15 |
8 |
Left side of cargo area |
|
|
| Left cargo area light 1 |
20 |
2 |
Left side of cargo area |
|
|
| Left cargo area light 2 |
17 |
2 |
Left side of cargo area |
|
|
| Left license plate light |
10 |
2 |
Behind middle of rear bumper |
|
|
| Left rear initiator |
19 |
3 |
Left side of cargo area |
|
|
| Left rear wheel sensor |
14 |
2 |
Under floor |
|
|
| Right back-up light/brake light/rear turn signal light/taillight |
6 |
8 |
Right side of cargo area |
|
|
| Right cargo area light 1 |
1 |
2 |
Right side of cargo area |
|
|
| Right cargo area light 2 |
4 |
2 |
Right side of cargo area |
|
|
| Right license plate light |
8 |
2 |
Behind middle of rear bumper |
|
|
| Right rear initiator |
2 |
3 |
Right side of cargo area |
|
|
| Right rear wheel sensor |
11 |
2 |
Under floor |
|
|
| Tailgate switch |
7 |
2 |
Right side of cargo area |
|
|
| C509 |
22 |
23 |
Left C-pillar |
Floor wire harness (see
FLOOR WIRE HARNESS (LEFT BRANCH) ) |
|
| C510 |
21 |
16 |
Left C-pillar |
Floor wire harness (see
FLOOR WIRE HARNESS (LEFT BRANCH) ) |
|
| C601 |
3 |
8 |
Right side of cargo area |
In-Bed trunk subharness (see IN-BED TRUNK SUBHARNESS ) |
|
| C601 |
3 |
6 |
Right side of cargo area |
In-Bed trunk subharness (see
IN-BED TRUNK SUBHARNESS ) |
|
| C602 |
16 |
2 |
Under floor |
Rear differential subharness A (see
REAR DIFFERENTIAL SUBHARNESS A ) |
|
| C603 |
12 |
6 |
Under floor |
Rear differential subharness B (see
REAR DIFFERENTIAL SUBHARNESS A ) |
|
| C604 |
9 |
10 |
Under floor |
Trailer subharness (see
IN-BED TRUNK SUBHARNESS ) |
|
| C605 |
13 |
4 |
Under floor |
Tailgate wire harness (see
IN-BED TRUNK SUBHARNESS ) |
|
| G601 |
18 |
|
Left side of cargo area |
Body ground, via rear wire harness |
|
| G602 |
5 |
|
Right side of cargo area |
Body ground, via rear wire harness |
|
Courtesy of AMERICAN HONDA MOTOR CO., INC.
