Left Rear Door Wire Harness

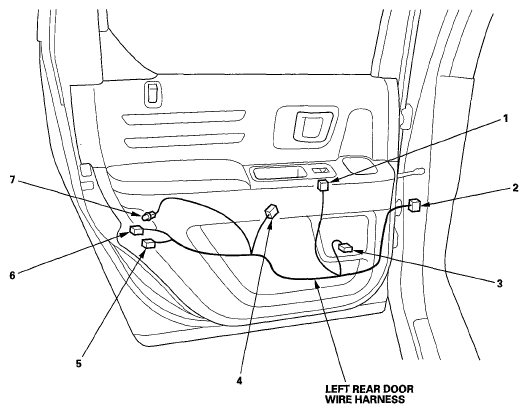

LEFT REAR DOOR WIRE HARNESS CONNECTOR REFERENCE CHART
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Left rear door courtesy light | 7 | 2 | Left rear door | ||
| Left rear door lock actuator | 5 | 2 | Left rear door | ||
| Left rear door lock knob switch | 6 | 3 | Left rear door | ||
| Left rear door speaker | 3 | 2 | Left rear door | ||
| Left rear power window motor | 4 | 2 | Left rear door | ||
| Left rear power window switch | 1 | 6 | Left rear door | ||
| C506 | 2 | 12 | Left B-pillar | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
