Front Passenger's Door Wire Harness

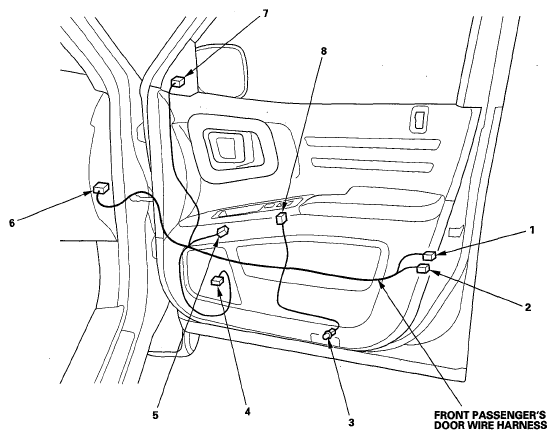

FRONT PASSENGER'S DOOR WIRE HARNESS CONNECTOR REFERENCE CHART
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Front passenger's door courtesy light | 3 | 2 | Front passenger's door | ||
| Front passenger's door lock actuator | 2 | 2 | Front passenger's door | ||
| Front passenger's door lock knob switch | 1 | 3 | Front passenger's door | ||
| Front passenger's door speaker | 4 | 2 | Front passenger's door | ||
| Front passenger's power window switch | 8 | 10 | Front passenger's door | ||
| Front passenger's power window motor | 5 | 2 | Front passenger's door | ||
| Right power mirror actuator | 7 | 8 | Front passenger's door | ||
| C408 | 6 | 23 | Under right side of dash | Dashboard wire harness (see DASHBOARD WIRE HARNESS (RIGHT BRANCH) ) |
