Component Location Index

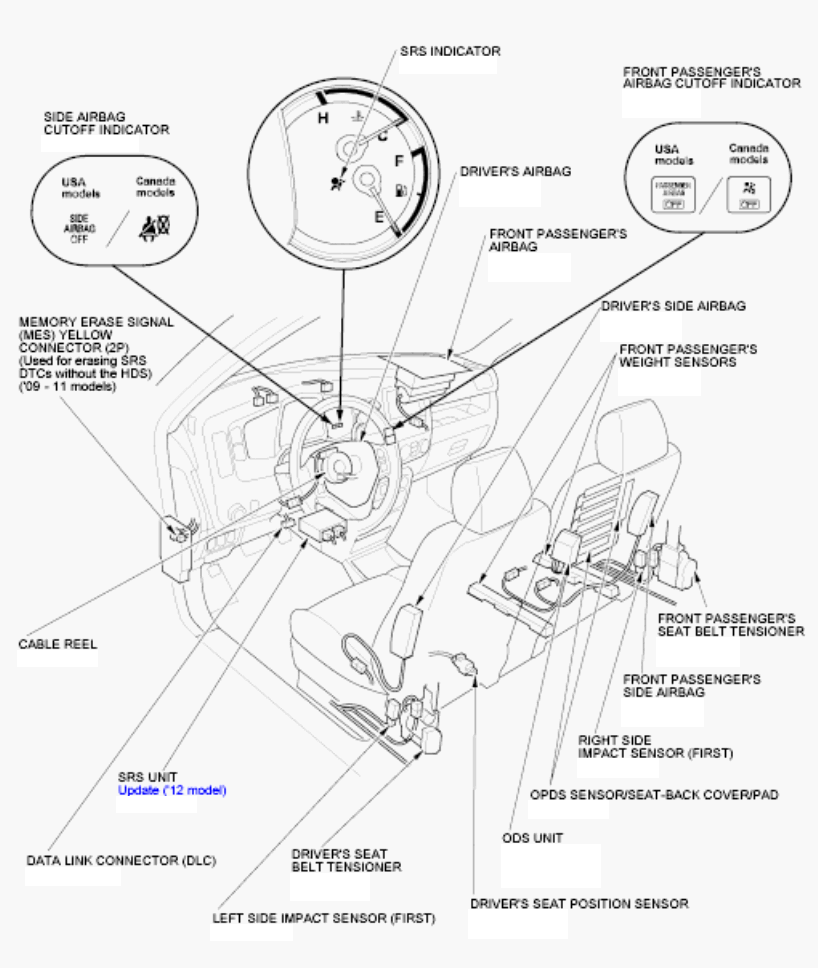

Fig 1: Identifying SRS Component Location (1 Of 2)
G00512333Courtesy of AMERICAN HONDA MOTOR CO., INC.

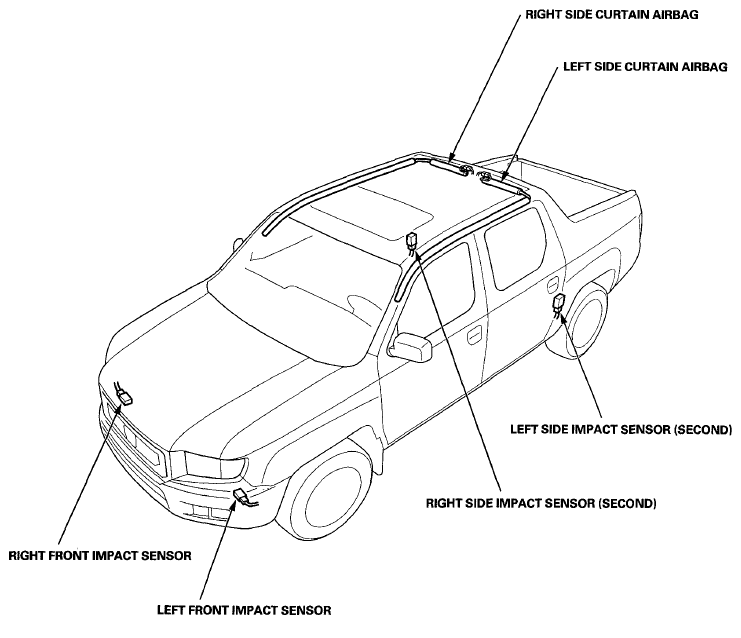

Fig 2: Identifying SRS Component Location (2 Of 2)
G06629424Courtesy of AMERICAN HONDA MOTOR CO., INC.
