Harmonic Balancer - Crankshaft Pulley

Tighten the bolt. Do not use an impact wrench.

Hold the pulley with the handle (A) and the holder attachment (B). Torque the bolt to 65 Nm (6.6 kg-m, 48 lb-ft) with a torque wrench and the heavy duty 19 mm socket (C).

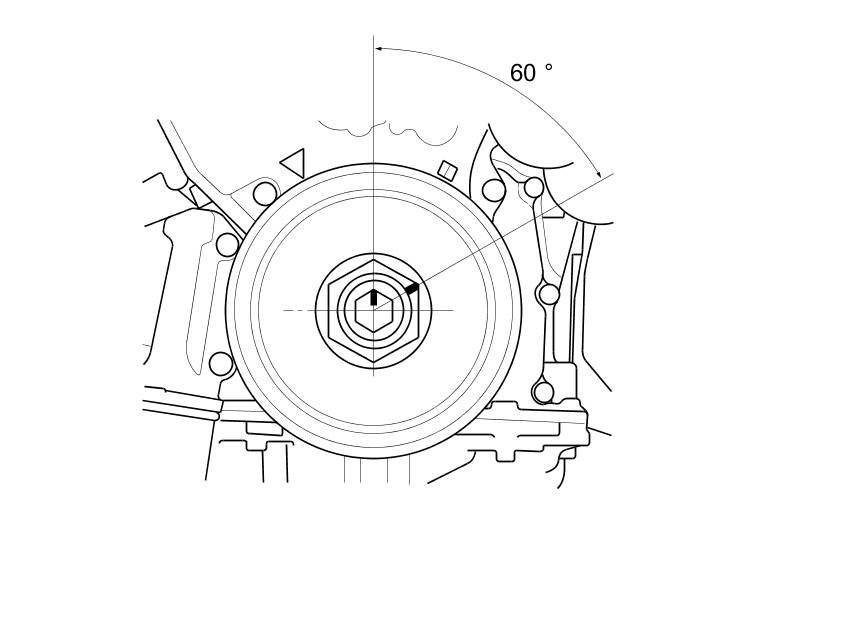

Tighten the bolt an additional 60 °.
