Seat Temperature Switch
>>
Diagrams
>>

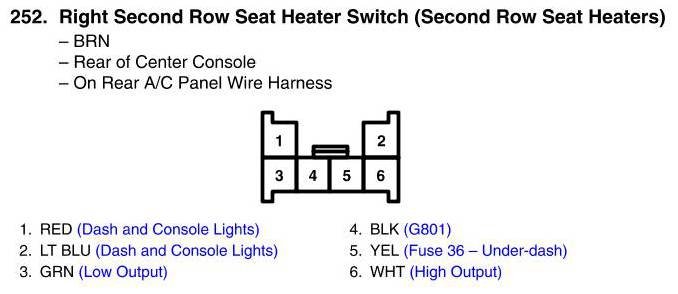

Right Second Row Seat Heater Switch Connector View (Second Row Seat Heaters)
Right Second Row Seat Heater Switch Connector View (Second Row Seat Heaters)
