Front Seat Belt Replacement

Front Seat Belt Replacement

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Honda Tool and Equipment Program, 888-424-6857

Front Seat Belt

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

NOTE:

- If replacing the front seats belt after deployment, refer to Component Replacement/Inspection After Deployment Service and Repair for a complete list of other parts that must also be replaced.
- Put on gloves to protect your hands.
- Take care not to tear or damage the seat covers.
- Check the front seat belts for damage Testing and Inspection, and replace them if necessary.
- The driver's seat is shown; the passenger's seat is similar.

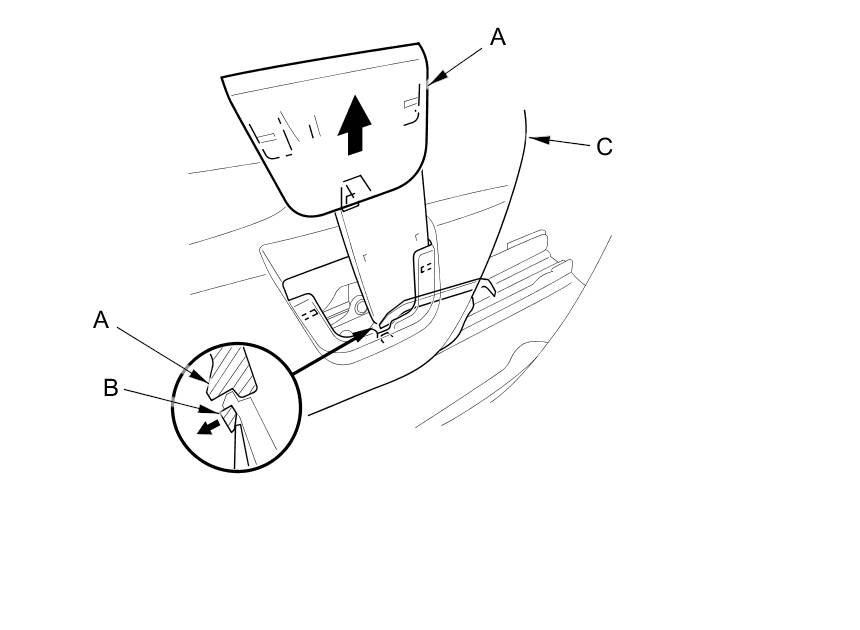

1. Slide the front seat all the way forward, and adjust the seat to its maximum height. Carefully pry up on the bottom of the anchor cover (A) to release the tab (B) using the appropriate trim tool from below inside the recline cover (C). Remove the cover.

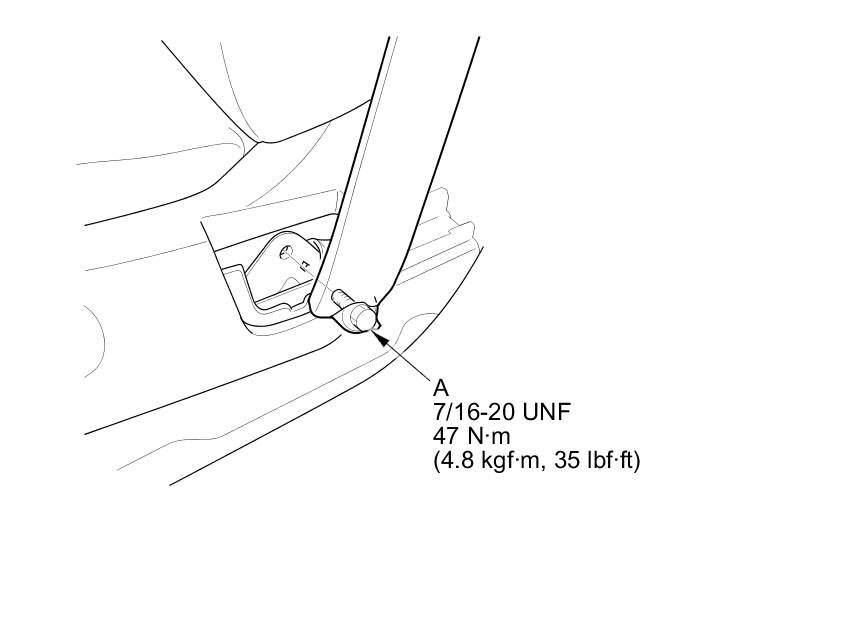

2. Adjust the seat to its minimum height, then remove the lower anchor bolt (A).






3. Do the battery terminal disconnection procedure Battery Terminal Disconnection And Reconnection, then wait at least 3 minutes before beginning work.

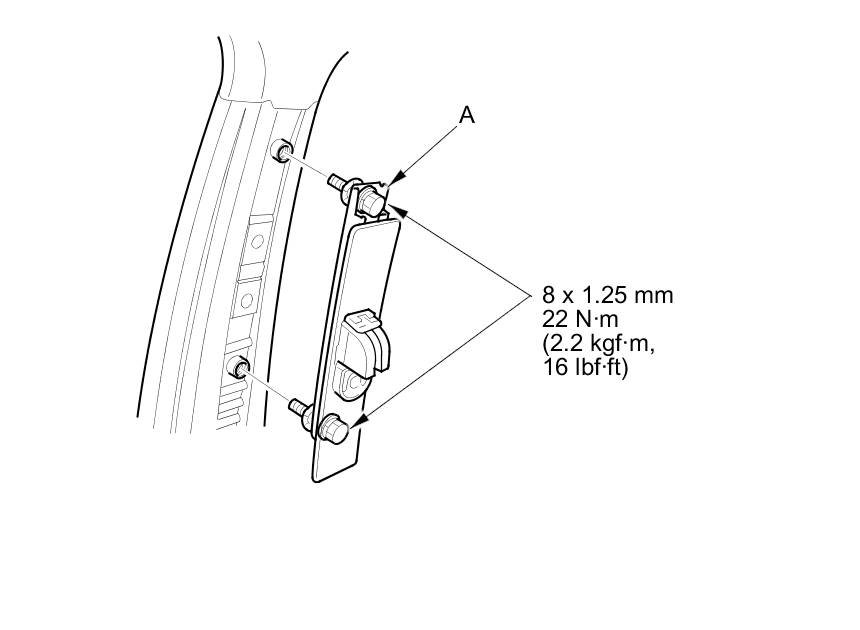

4. Remove the B-pillar lower trim.

5. Remove the B-pillar upper trim.

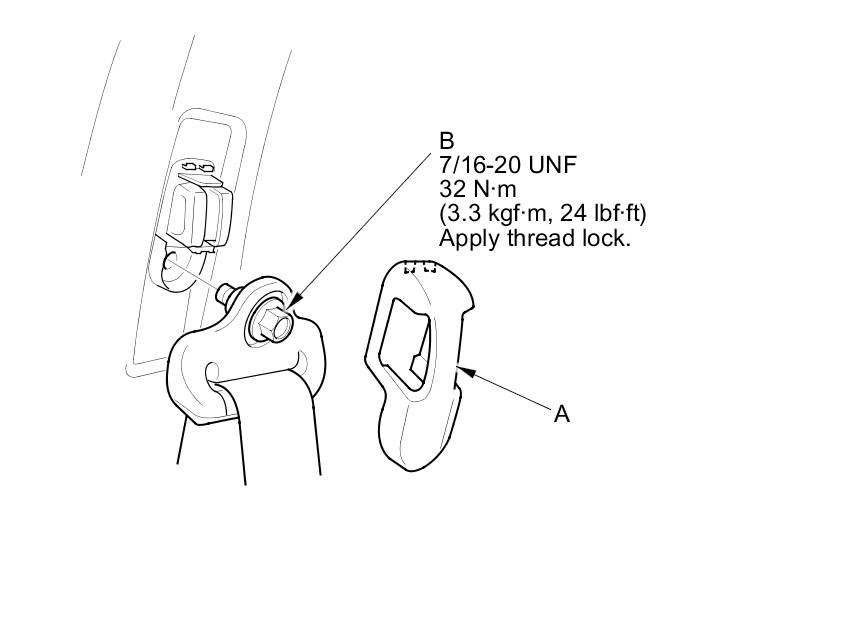

6. Remove the upper anchor cover (A), then remove the upper anchor bolt (B).

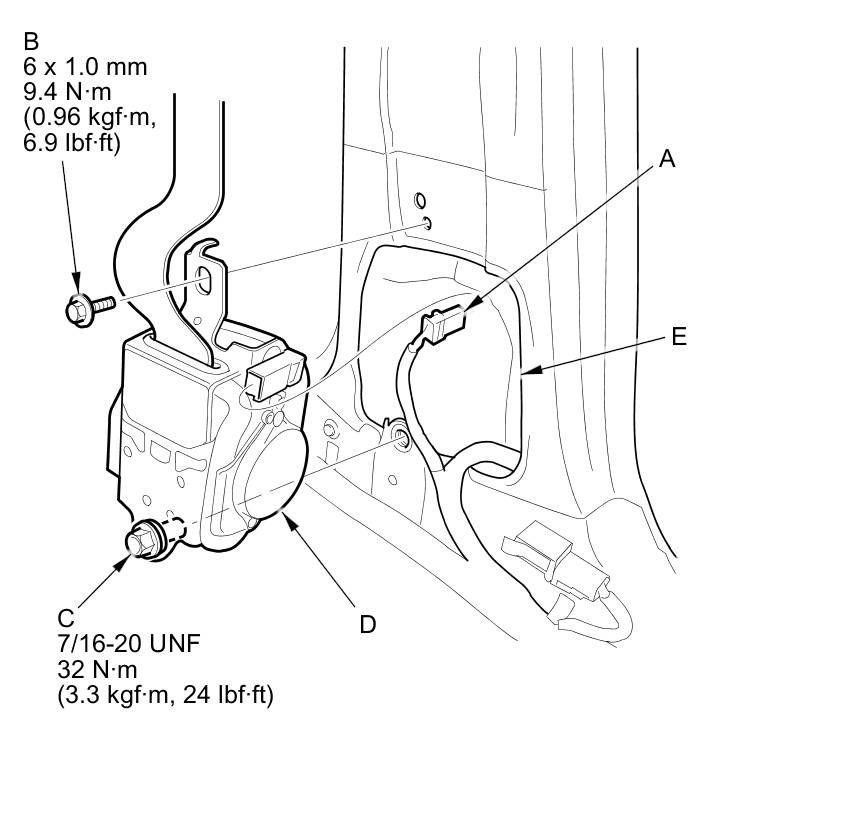

7. Disconnect the seat belt tensioner connector (A). Remove the retractor mounting bolt (B) and the retractor bolt (C), then remove the front seat belt assembly (D).





8. If necessary, remove the front seat belt protector (E).

9. Remove the shoulder anchor adjuster (A).






10. Install the seat belt in the reverse order of removal, and note these items:

- Check that the retractor locking mechanism functions as described.
- Apply medium strength liquid thread lock to the upper anchor bolts before reinstallation.
- Tighten the bolts by hand first, then tighten to the specified torque with a torque wrench.
- Assemble the washer, the collar and the bushing on the upper anchor bolt as shown.
- If the seat belt tensioner has been deployed, replace the front seat belt protector.
- Before installing the anchor bolts, make sure there are no twists or kinks in the seat belt.
- Make sure the seat belt tensioner connector is plugged in properly.
- Do the battery terminal reconnection procedure Battery Terminal Disconnection And Reconnection.
- Check for any DTCs that may have been set during repairs, and clear them.

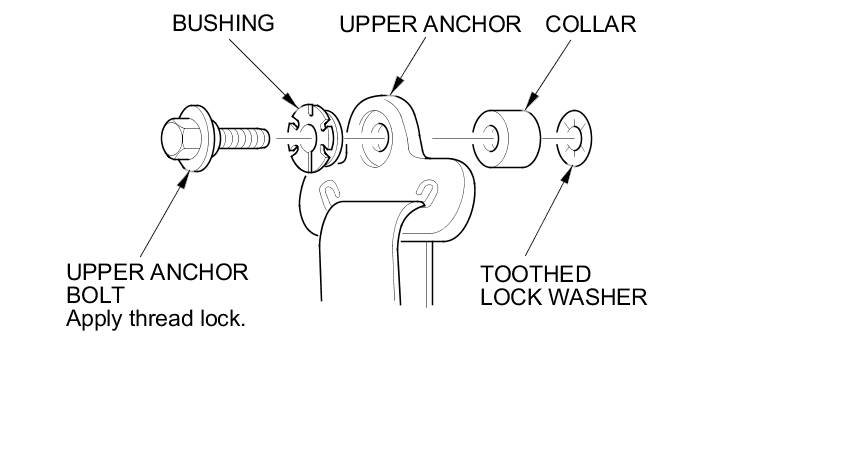

Upper anchor bolt installation






Front Seat Belt Buckle

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

NOTE:

- Put on gloves to protect your hands.
- Take care not to tear or damage the seat covers.

1. Do the battery terminal disconnection procedure Battery Terminal Disconnection And Reconnection, then wait at least 3 minutes before beginning work.

2. Remove the front seat Front Seat Removal/Installation.

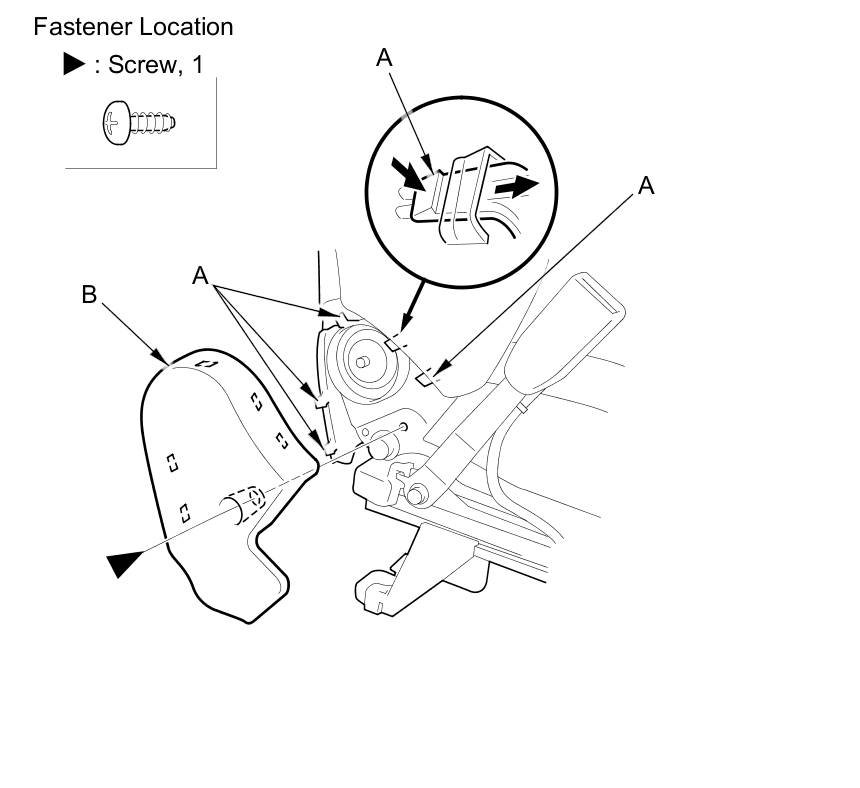

3. Remove the screw and the hooks (A), then remove the center cover (B).

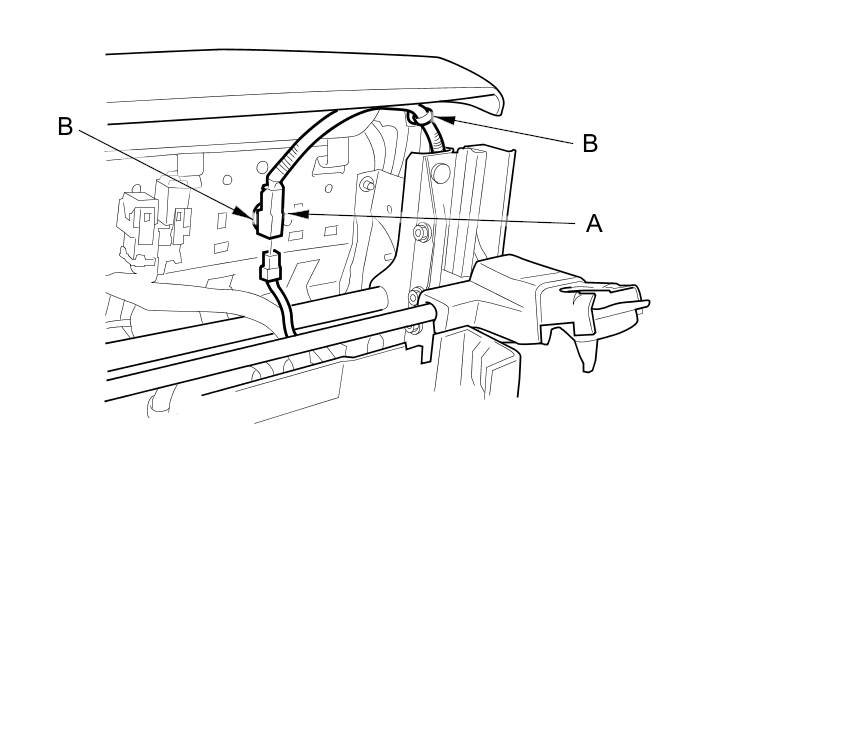

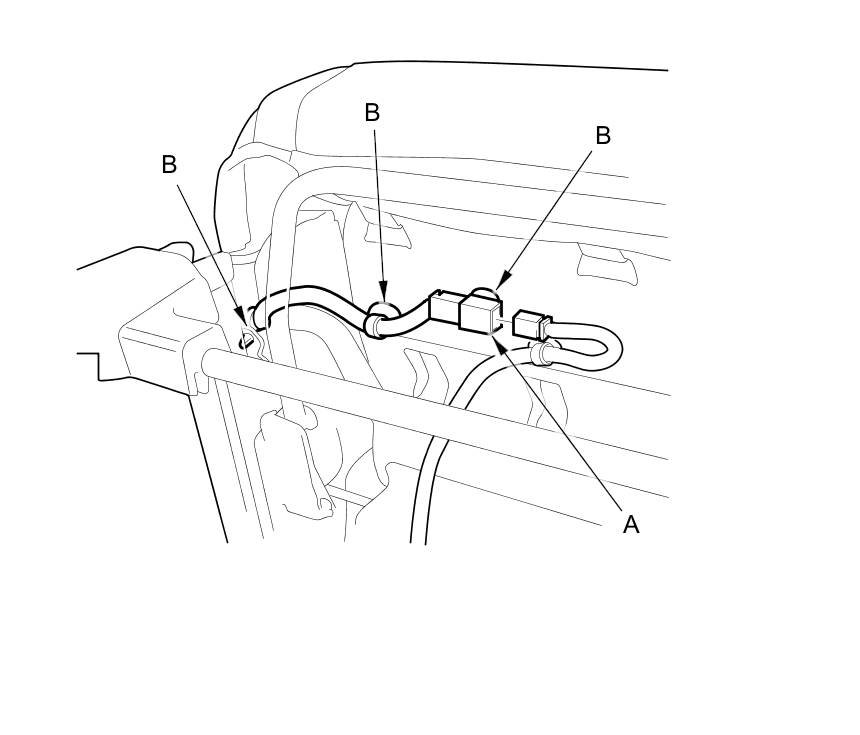

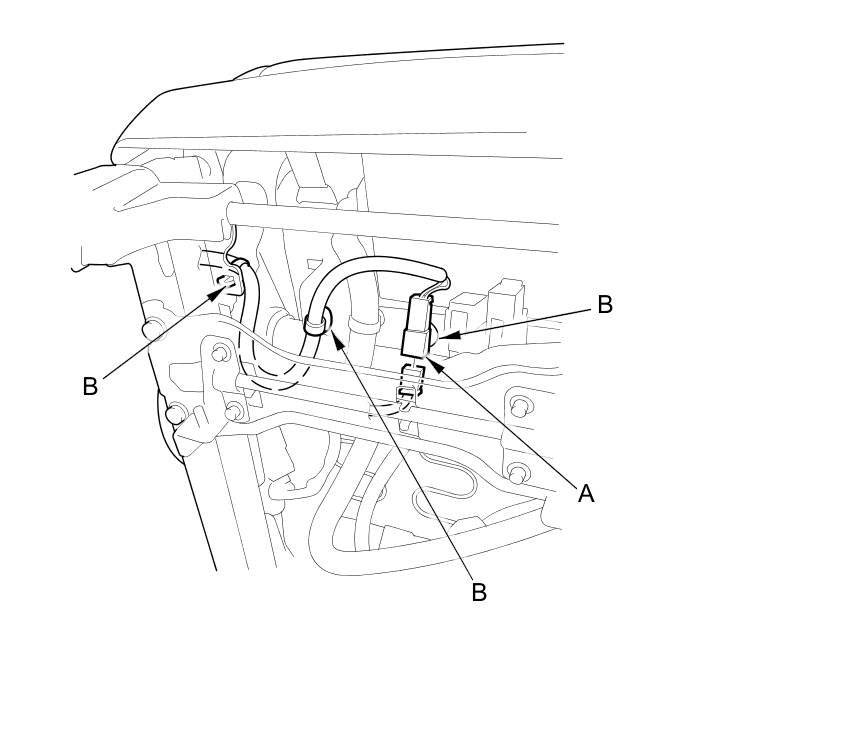

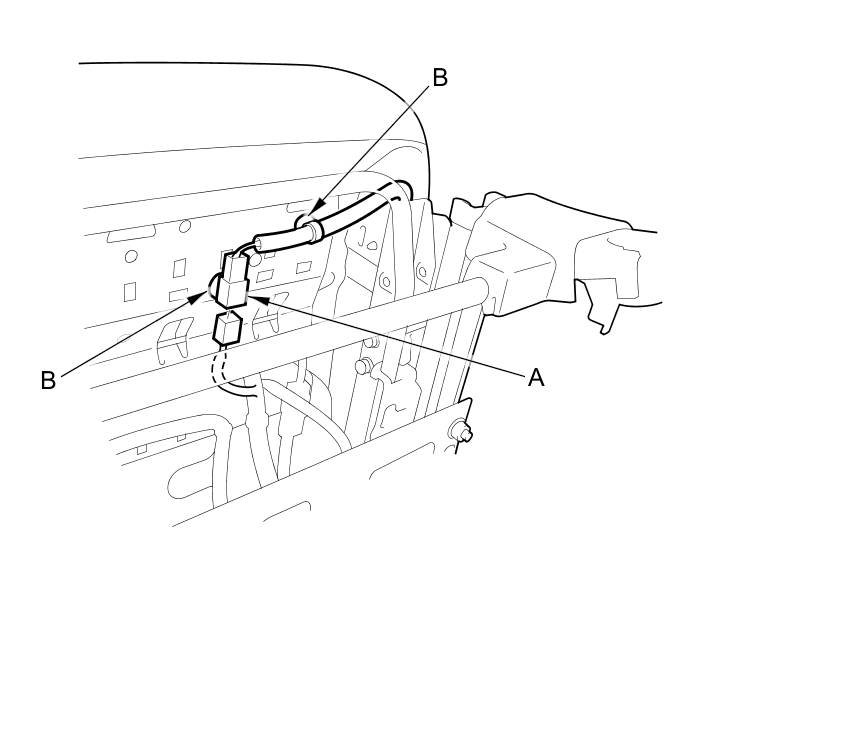

4. Lift up the front seat, then disconnect the seat belt buckle switch connector (A), then detach the harness clips (B).

Driver's 8-way power seat





Driver's manual height adjustable seat





Passenger's 4-way power seat





Passenger's manual seat

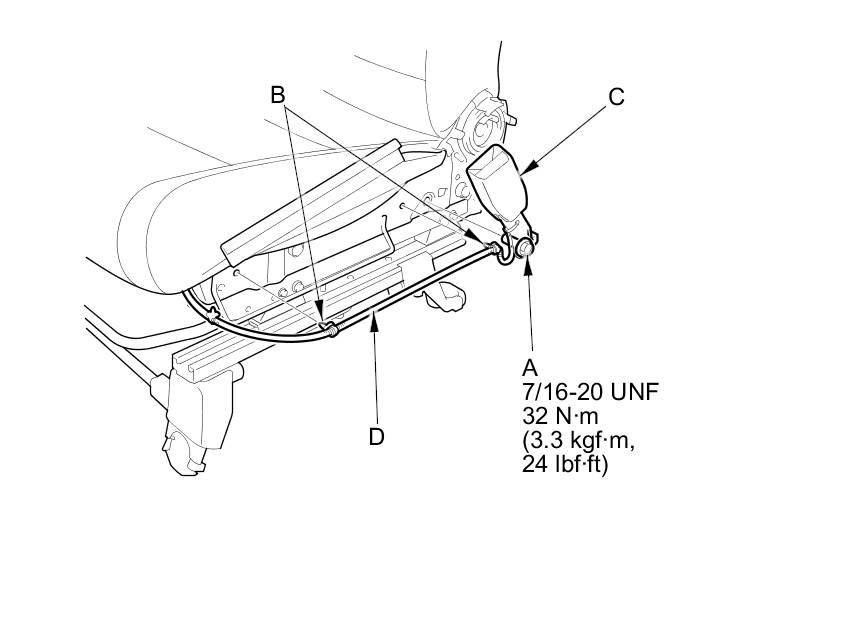

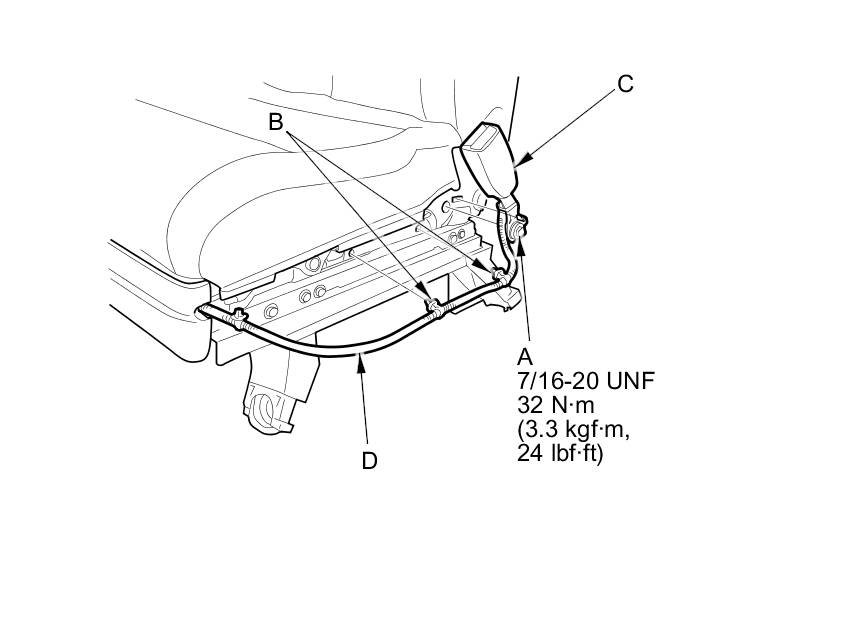

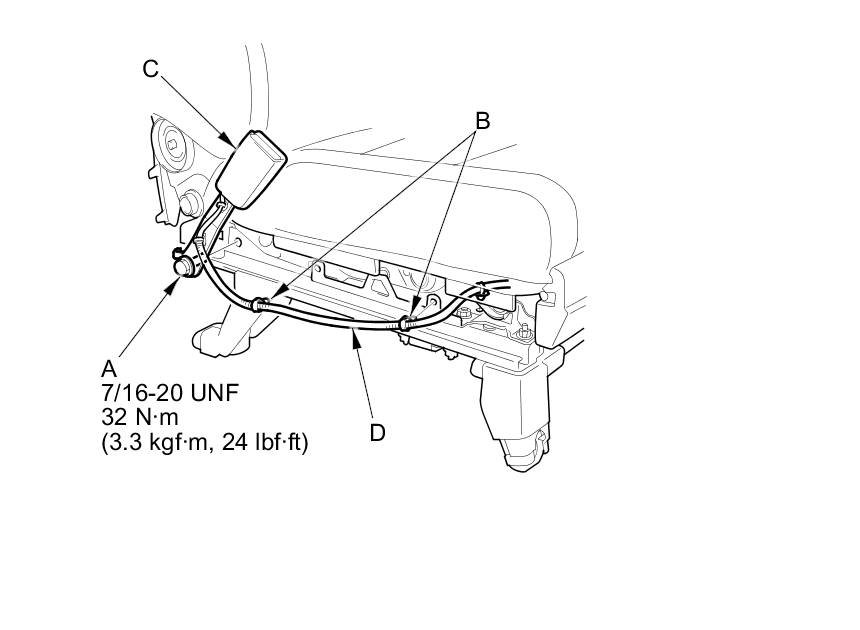

5. Remove the center anchor bolt (A), and detach the harness clips (B), then remove the seat belt buckle (C).

Driver's seat





Passenger's 4-way power seat





Passenger's manual seat





6. Pull the seat belt buckle switch harness (D) out through the space between the seat cushion and the seat track.

7. Install the buckle in the reverse order of removal, and note these items:

- Apply medium strength liquid thread lock to the center anchor bolts before reinstallation.

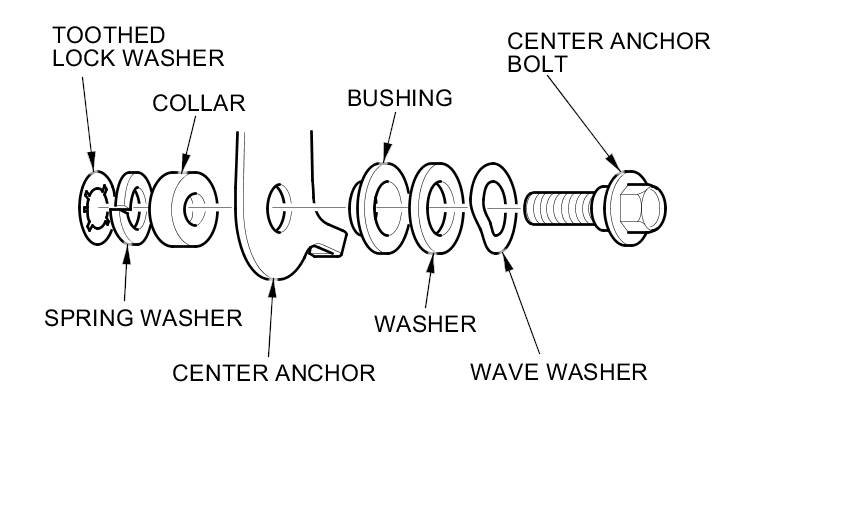

- Assemble the washers and the bushing on the center anchor bolt as shown.
- Tighten the bolts by hand first, then tighten to specified torque with a torque wrench.
- Make sure the seat belt buckle switch connector is plugged in properly.
- Do the battery terminal reconnection procedure Battery Terminal Disconnection And Reconnection.
- Check for any DTCs that may have been set during repairs, and clear them.

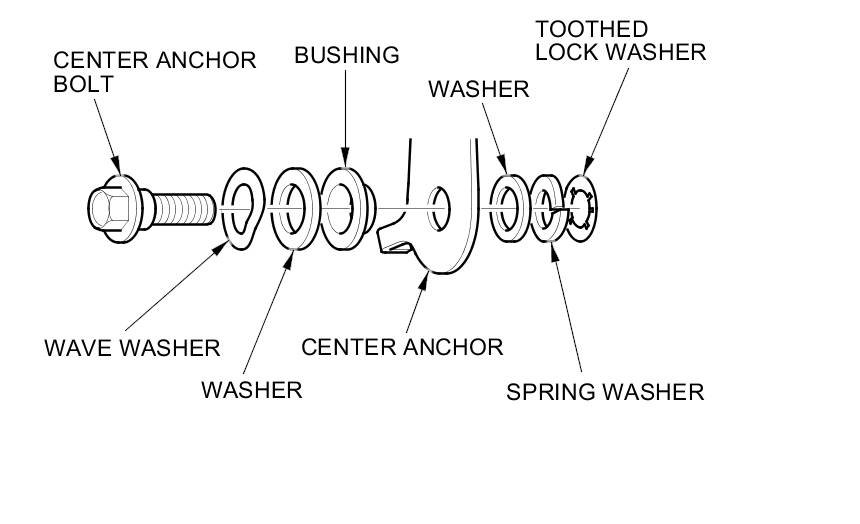

Center anchor bolt installation (driver's seat belt)





Center anchor bolt installation (passenger's seat belt)
