Cabin Noise Cancellation Control Module: Service and Repair

Active Noise Cancellation Unit Removal/Installation

1. Remove the passenger's center console trim Center Console Removal/Installation.

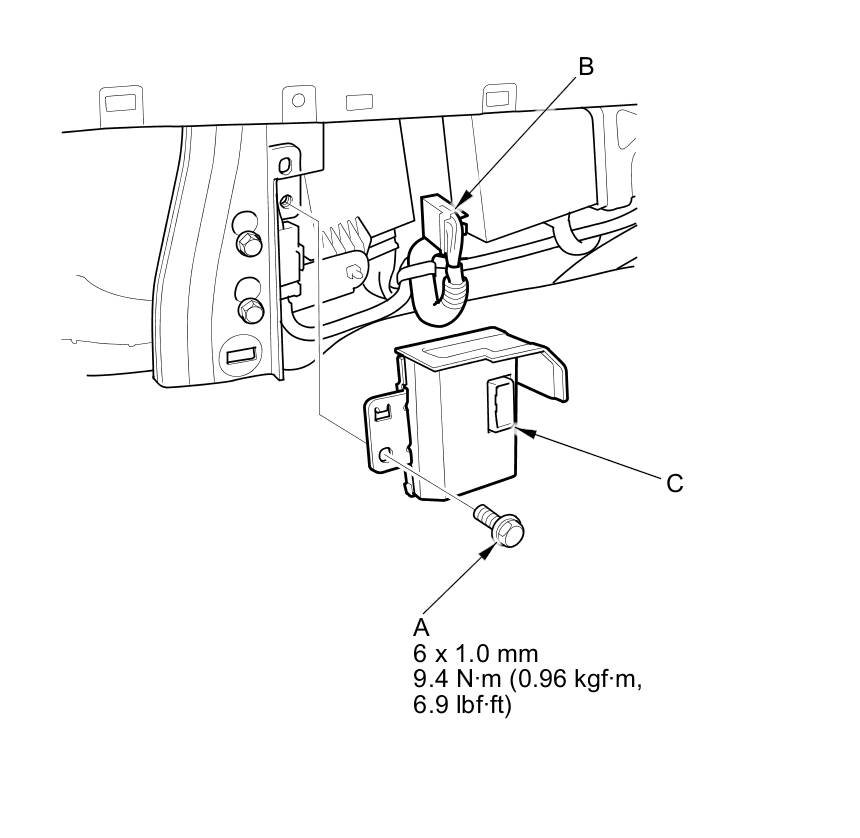

2. Remove the bolt (A), and disconnect the connector (B) from the active noise cancellation unit (C), and remove it.





3. Install the active noise cancellation unit in the reverse order of removal.
