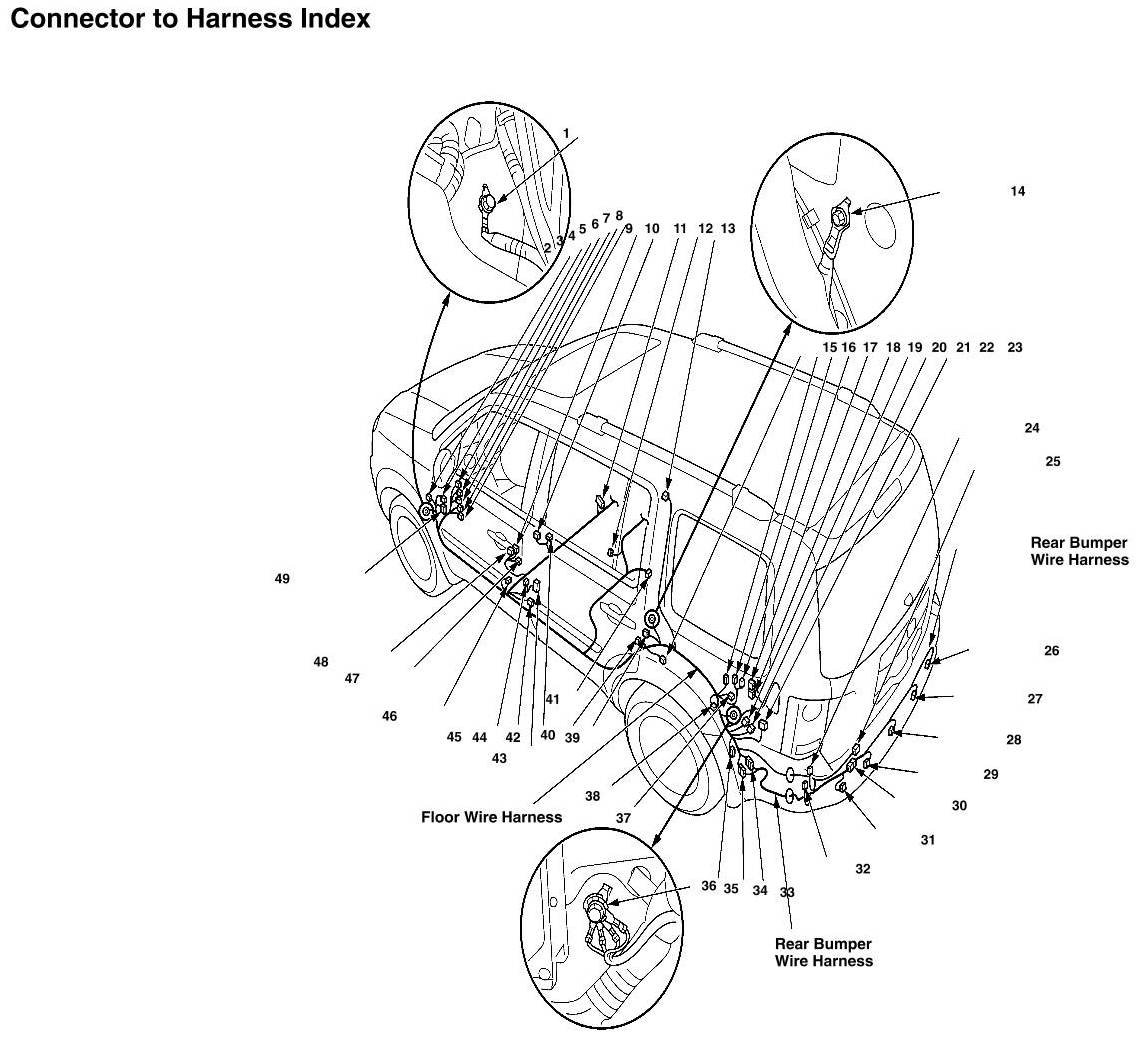

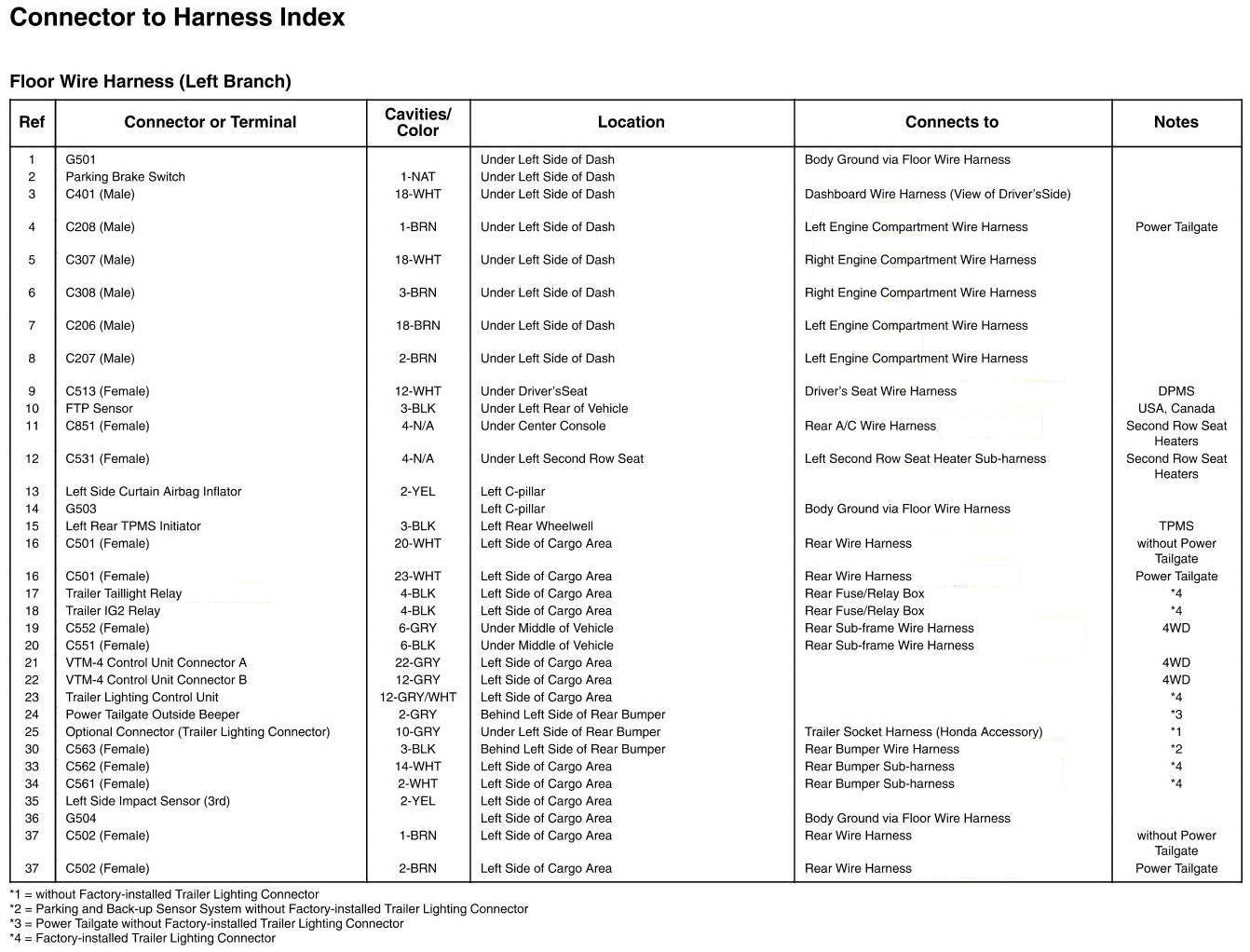

Floor Wire Harness (Left Branch), Rear Bumper Wire Harness and Sub-Harness
Floor Wire Harness (Left Branch), Rear Bumper Wire Harness and Sub-Harness

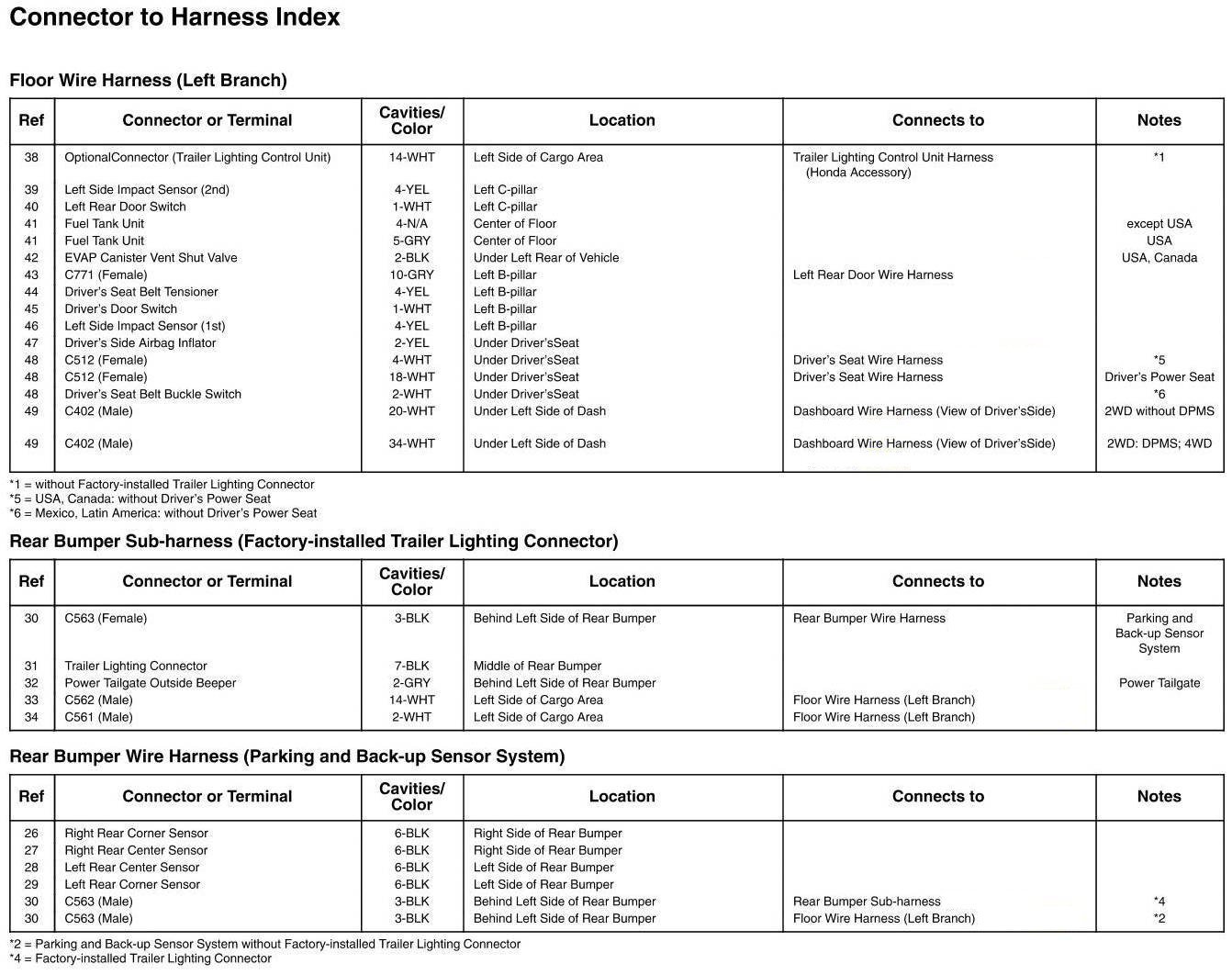

Floor Wire Harness (Left Branch), Rear Bumper Sub-Harness (Factory-Installed Trailer Lighting Connector) And Rear Bumper Wire Harness (Parking And Back-Up Sensor System)
