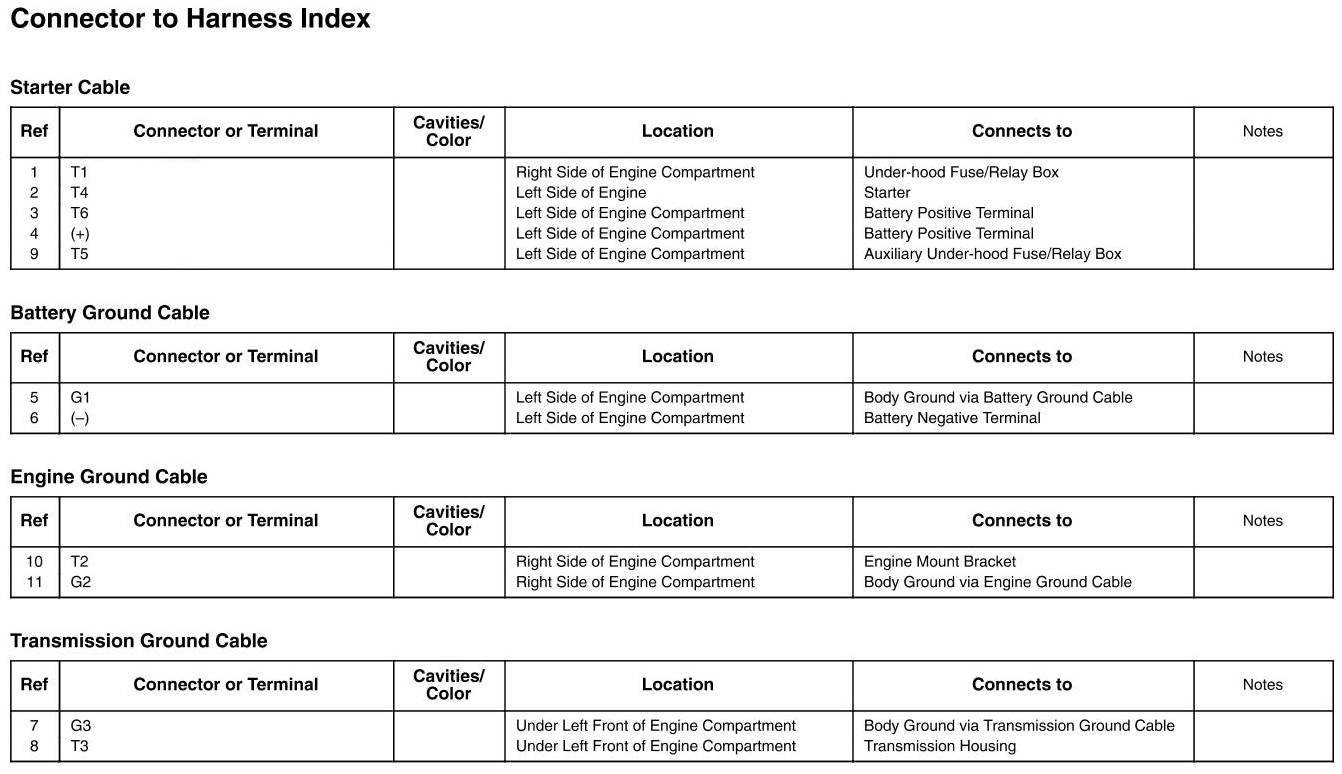

Starter Cable, Battery Ground Cable, Engine Ground Cable, And Transmission Ground Cable
Starter Cable, Battery Ground Cable, Engine Ground Cable, And Transmission Ground Cable
