Roof Wire Harness
Roof Wire Harness
Connector and Harness Locations

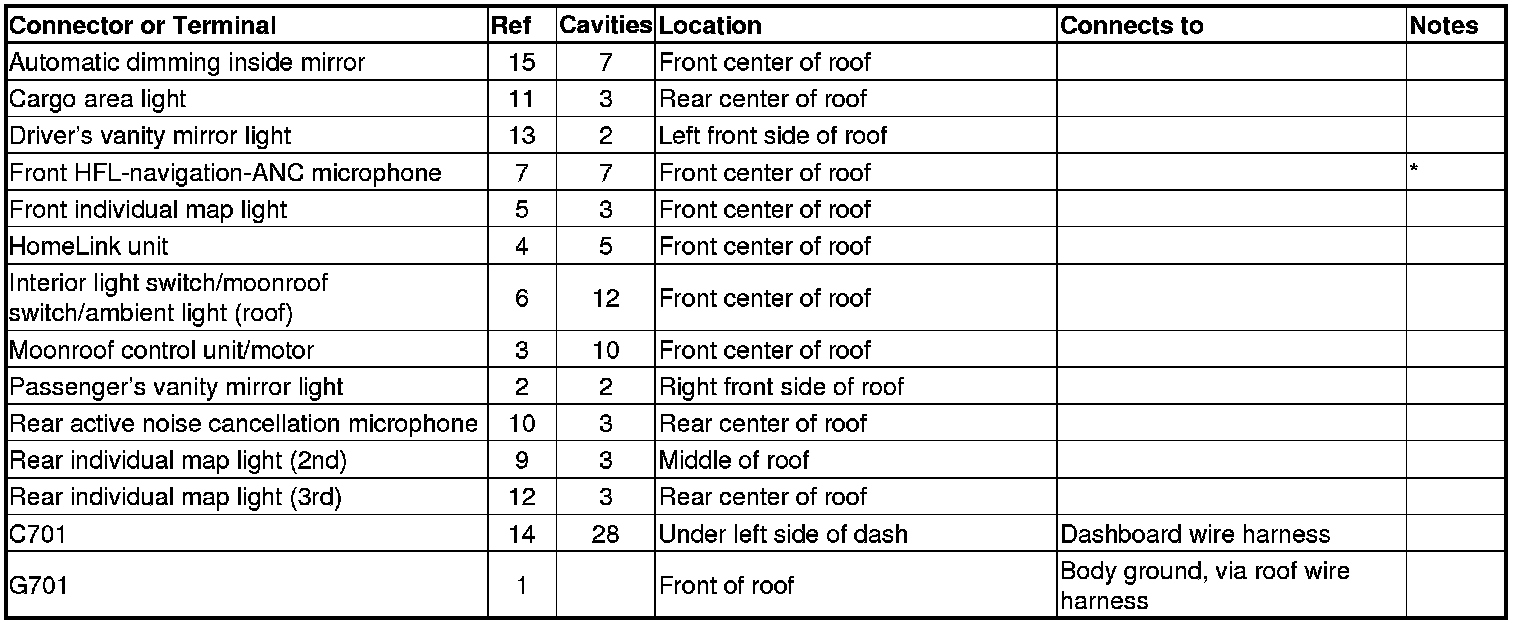

Roof Wire Harness (With moonroof)

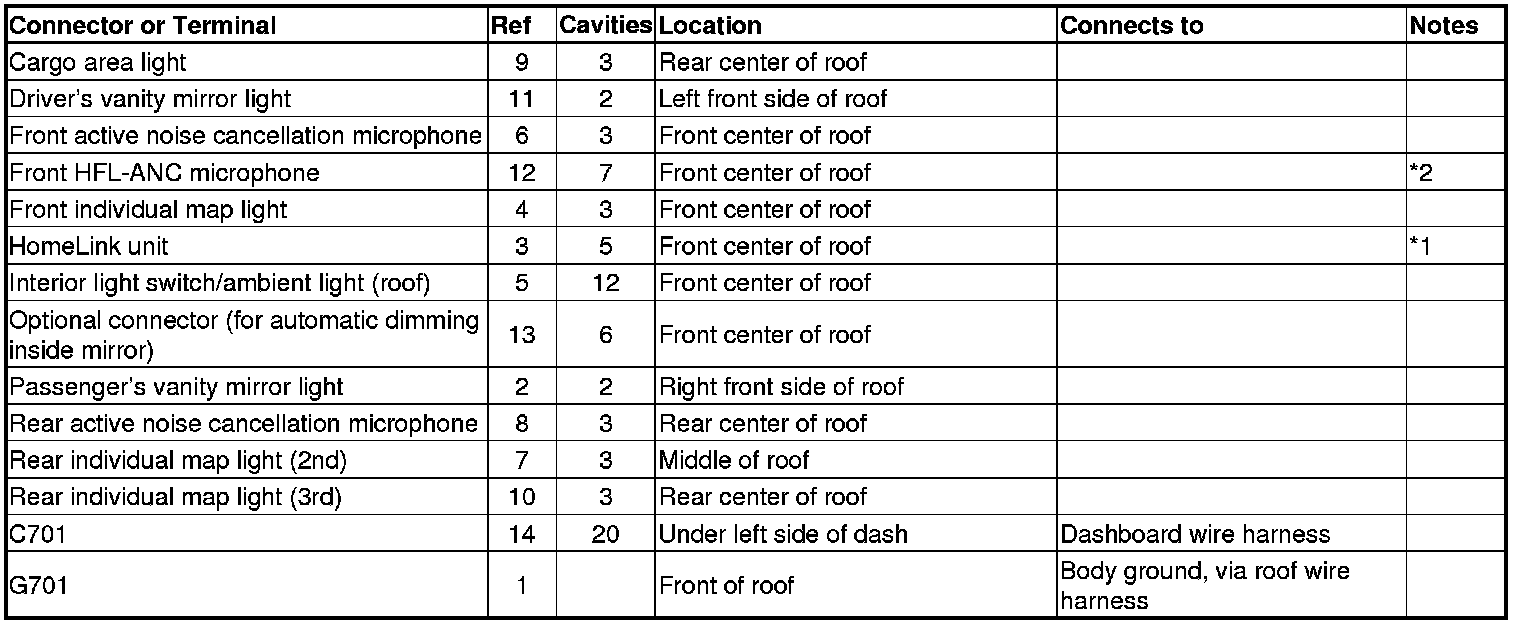

Roof Wire Harness (Without moonroof)
