Right Engine Compartment Wire Harness
Right Engine Compartment Wire Harness

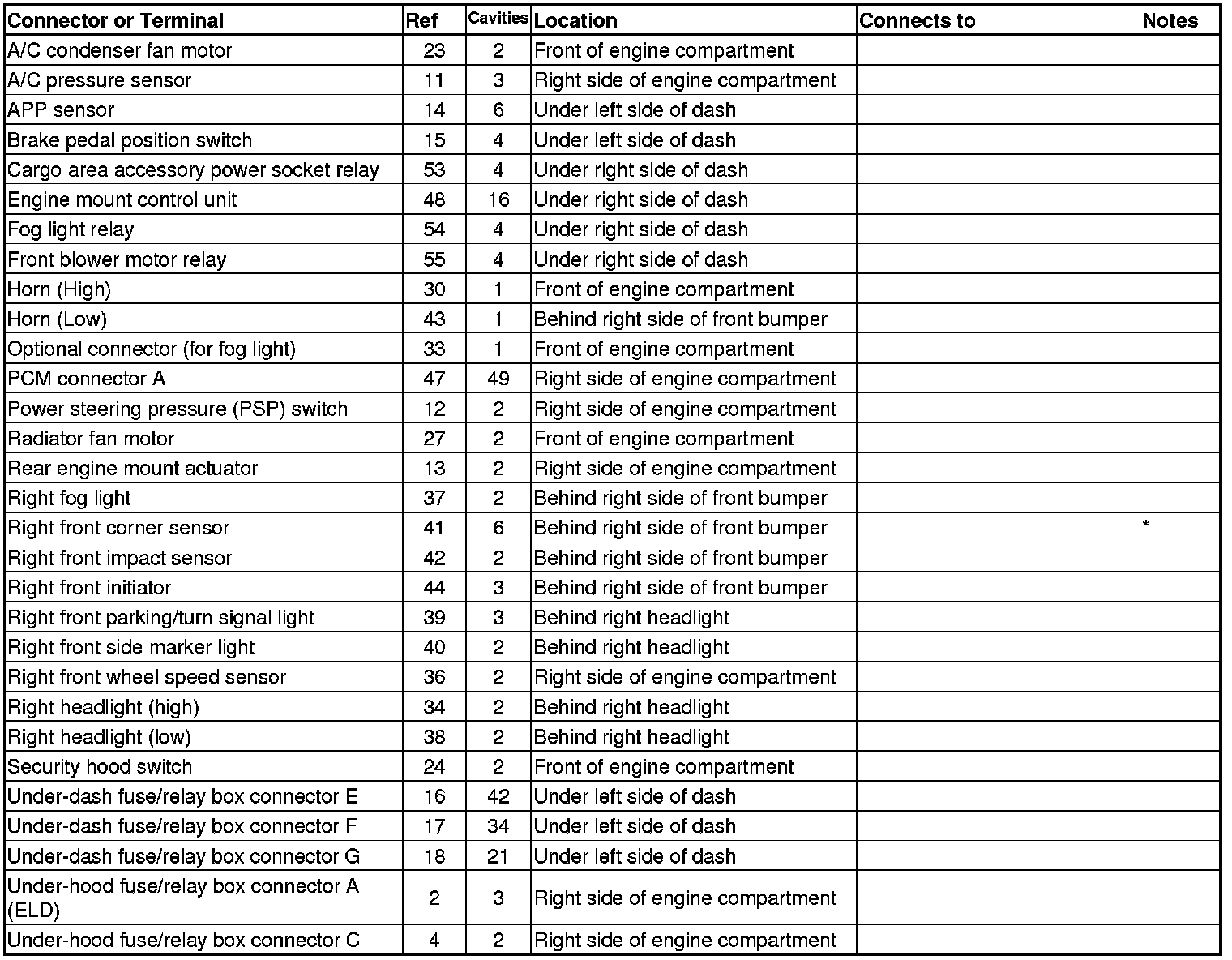

Connector and Harness Locations

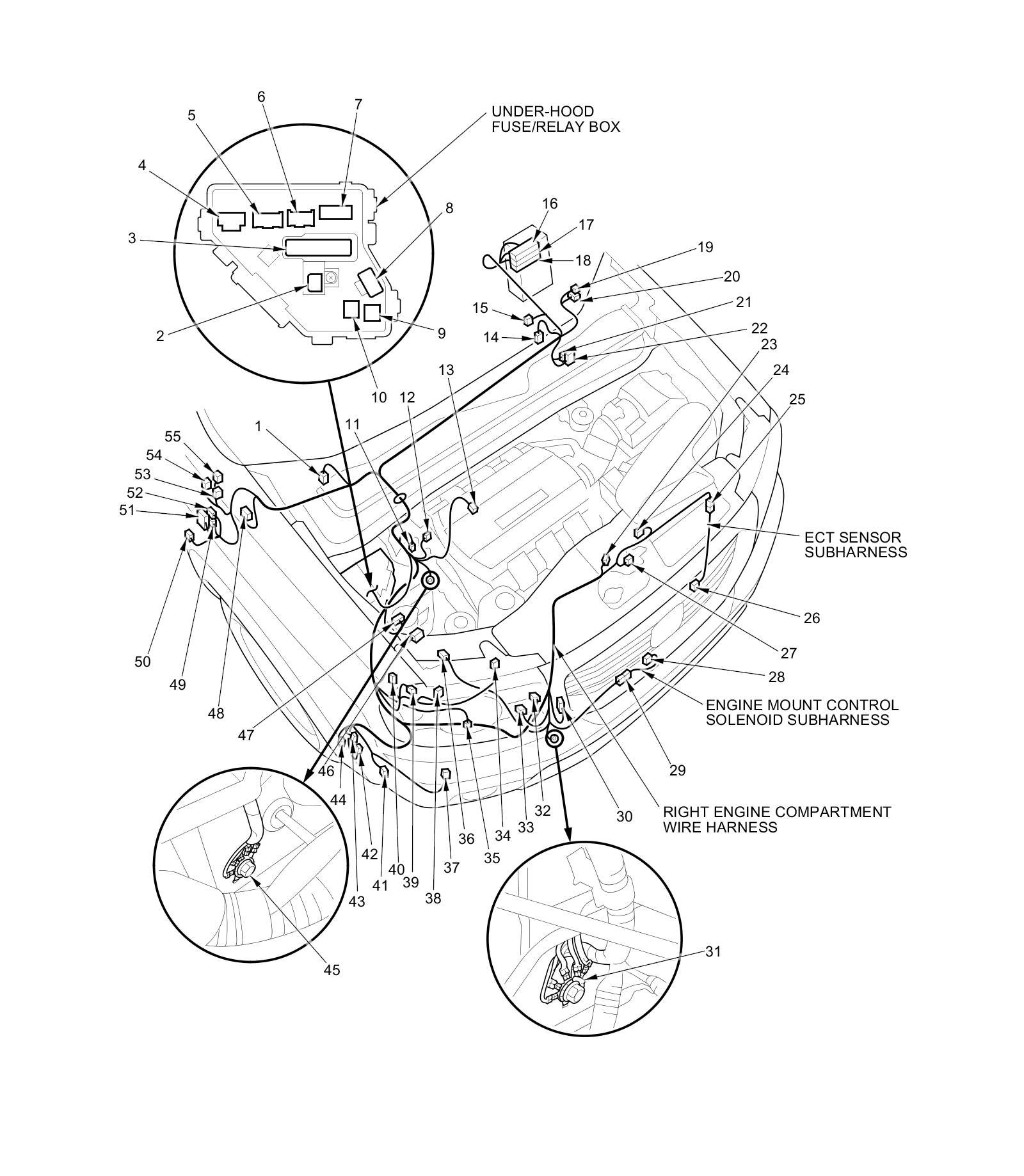

Right Engine Compartment Wire Harness
