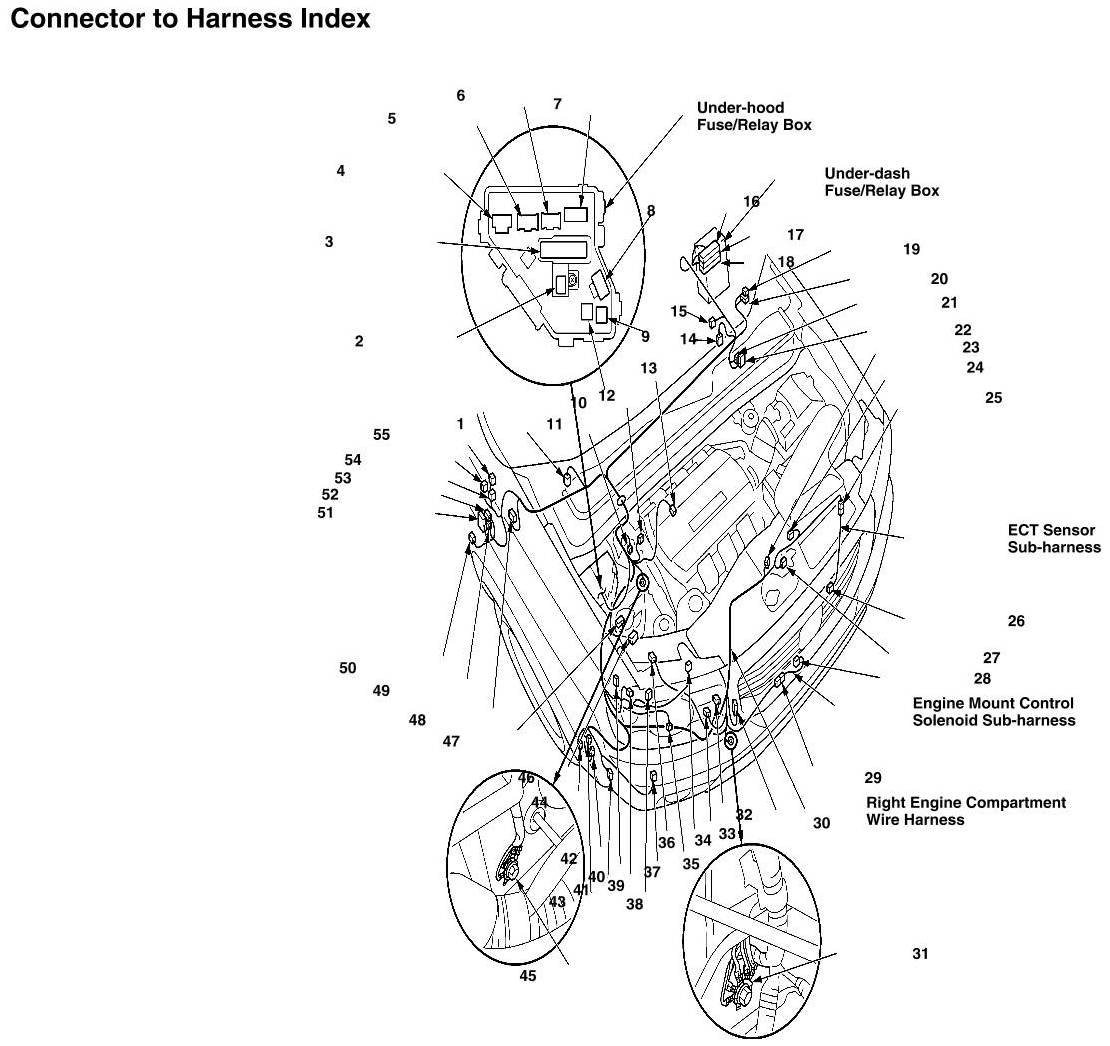

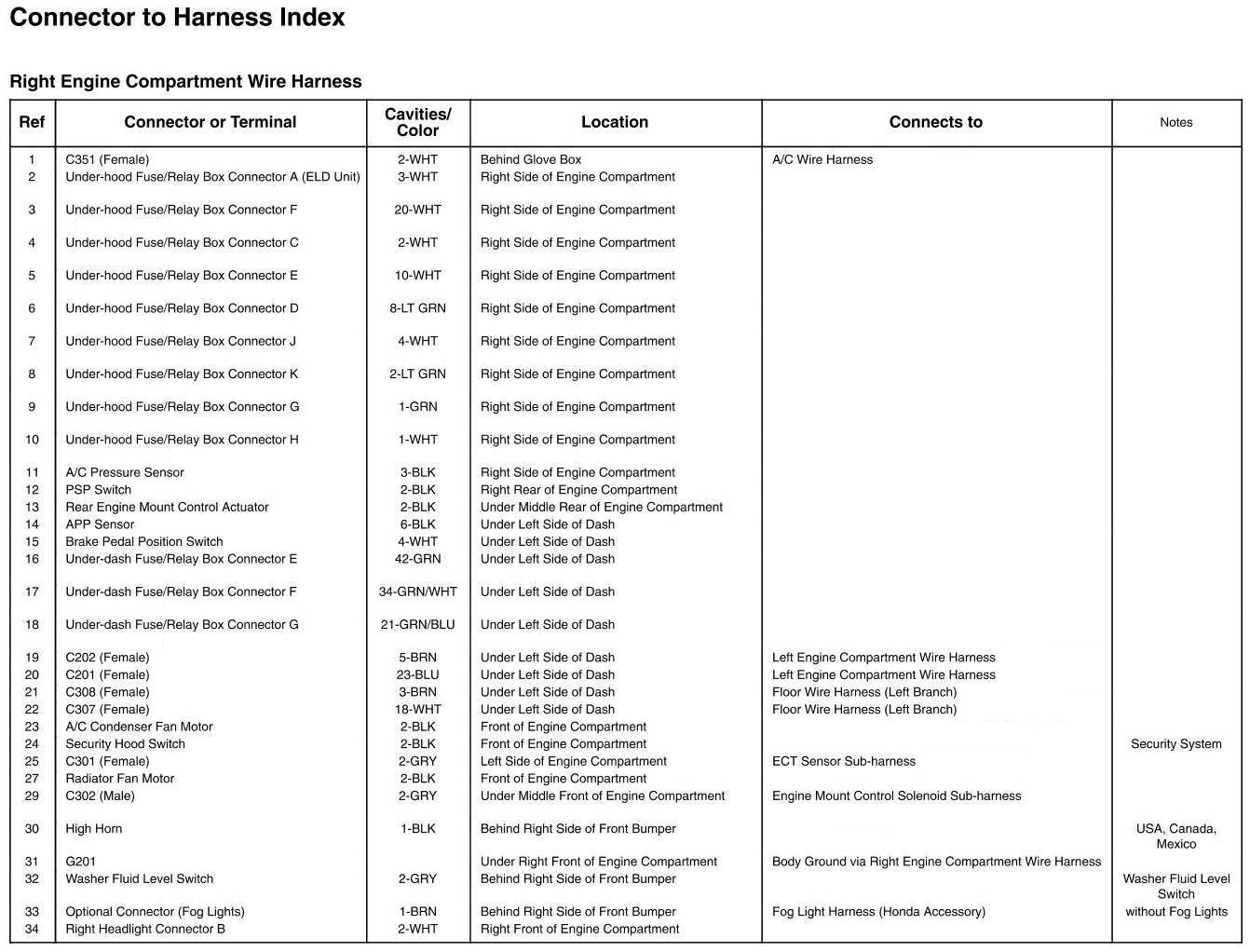

Right Engine Compartment Wire Harness, ECT Sensor Sub-Harness And Engine Mount Control Solenoid Sub-Harness
