Dashboard Wire Harness




Connector and Harness Locations

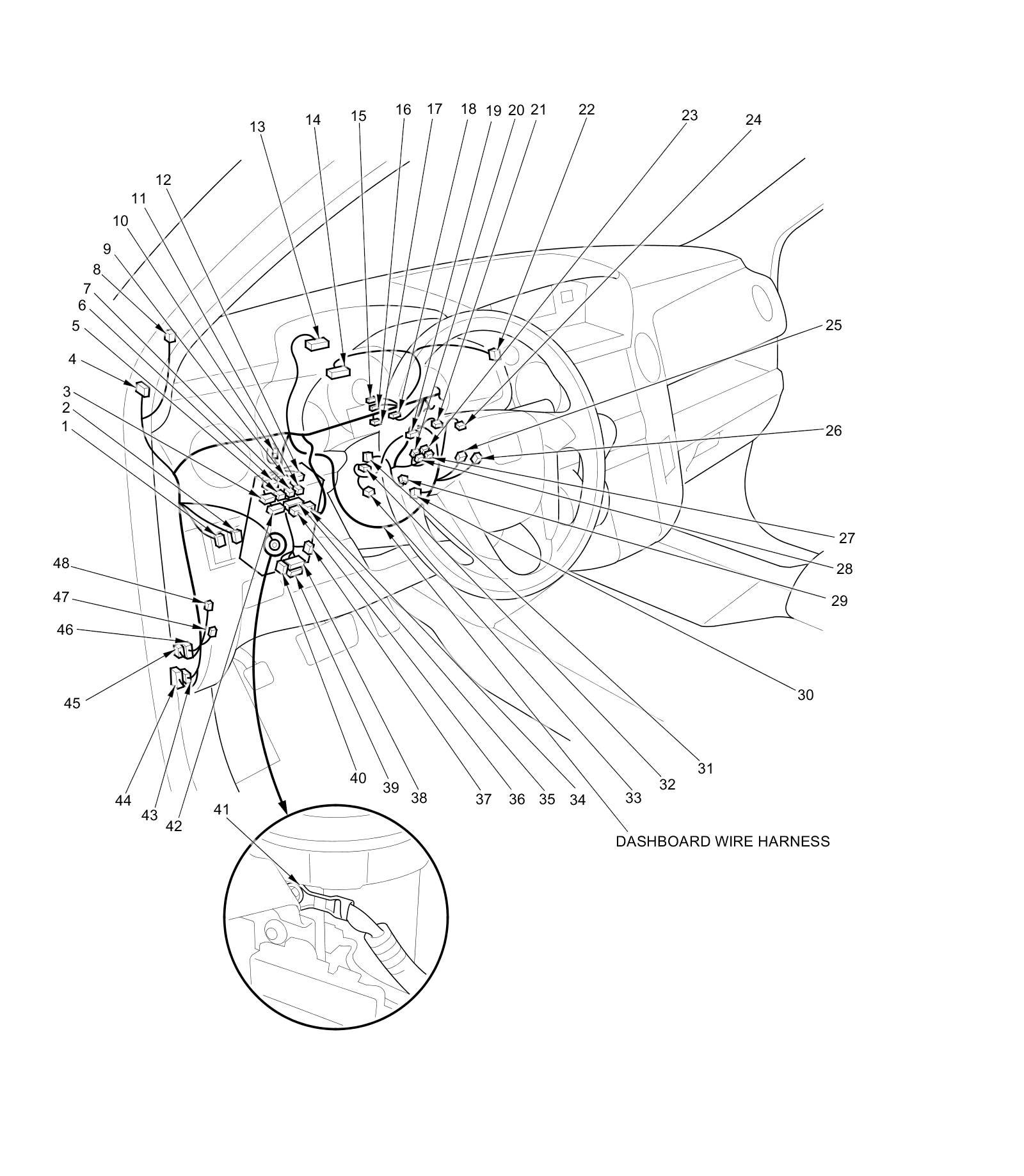

Dashboard Wire Harness (View of driver's side)

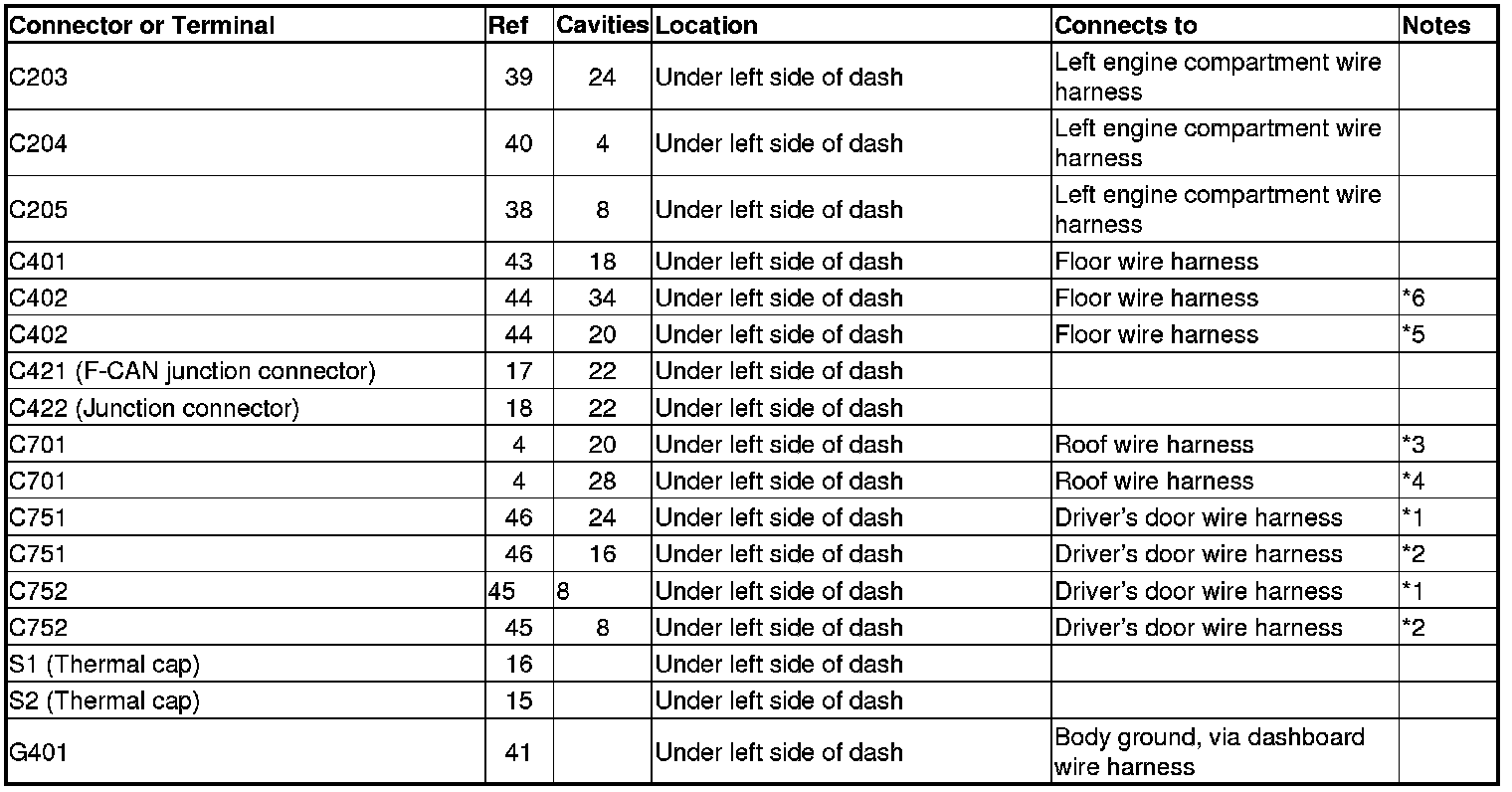

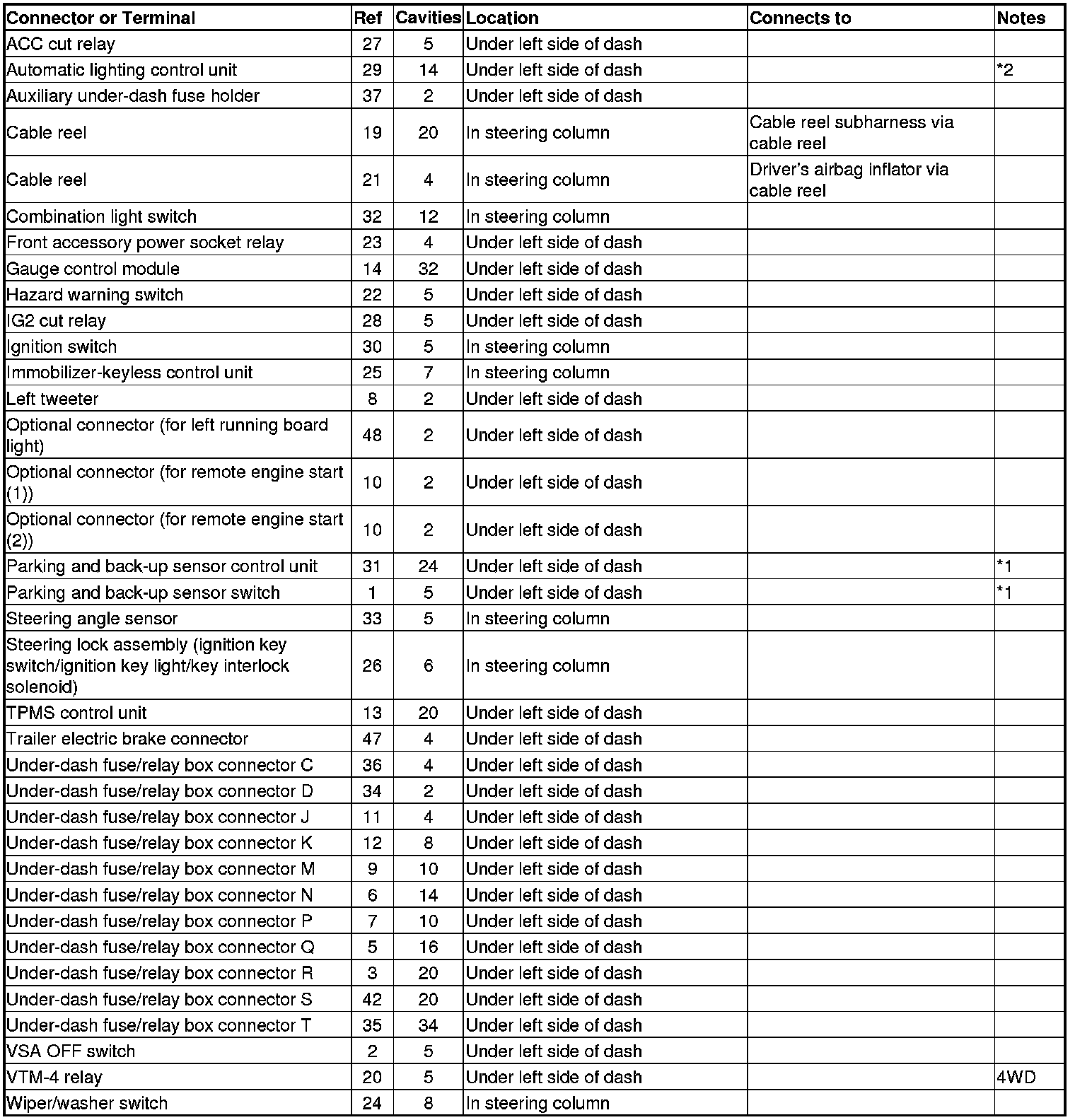

Dashboard Wire Harness (View of driver's side) (cont'd)














Dashboard Wire Harness (View of middle side)

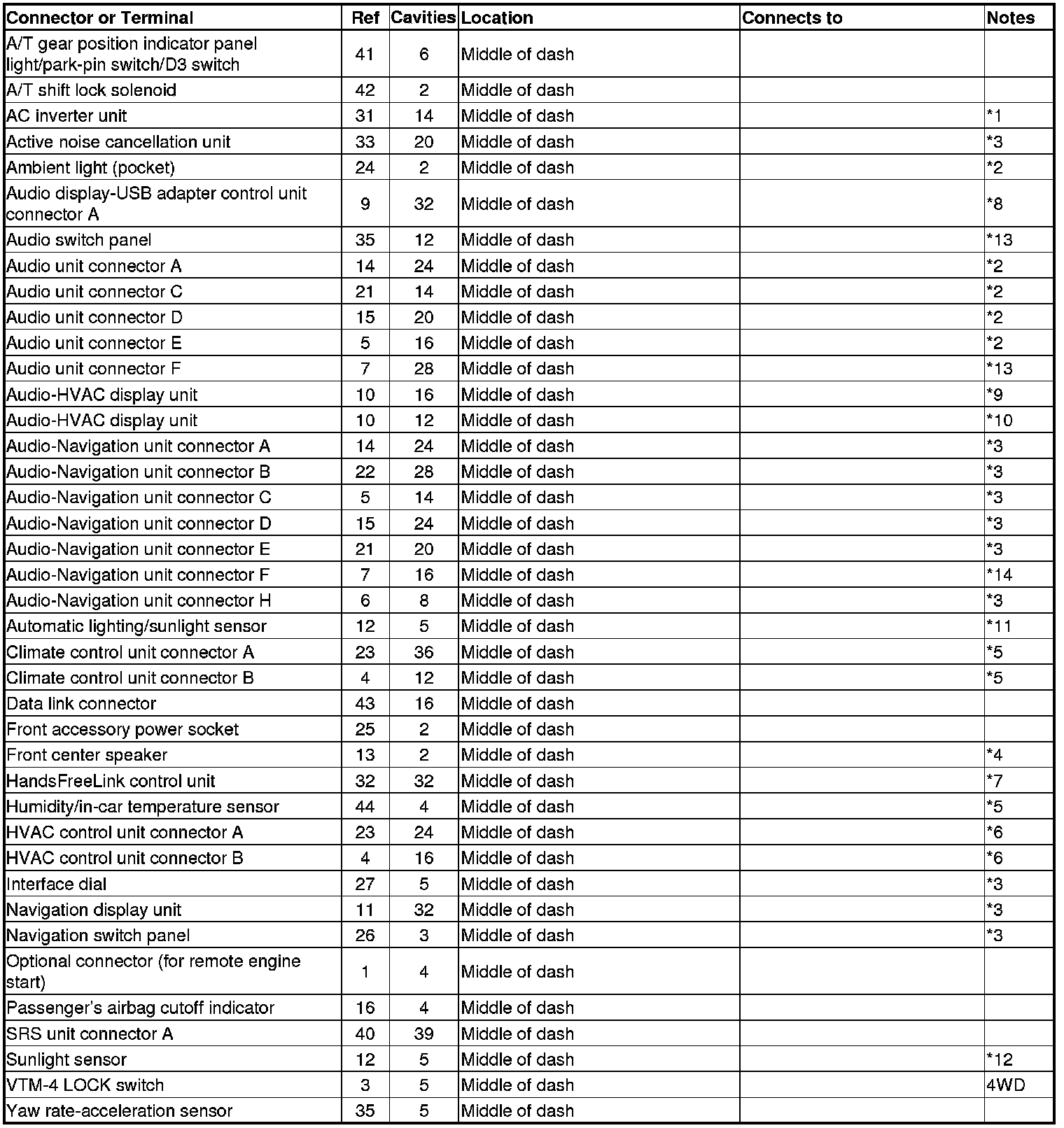

Dashboard Wire Harness (View of middle side) (cont'd)

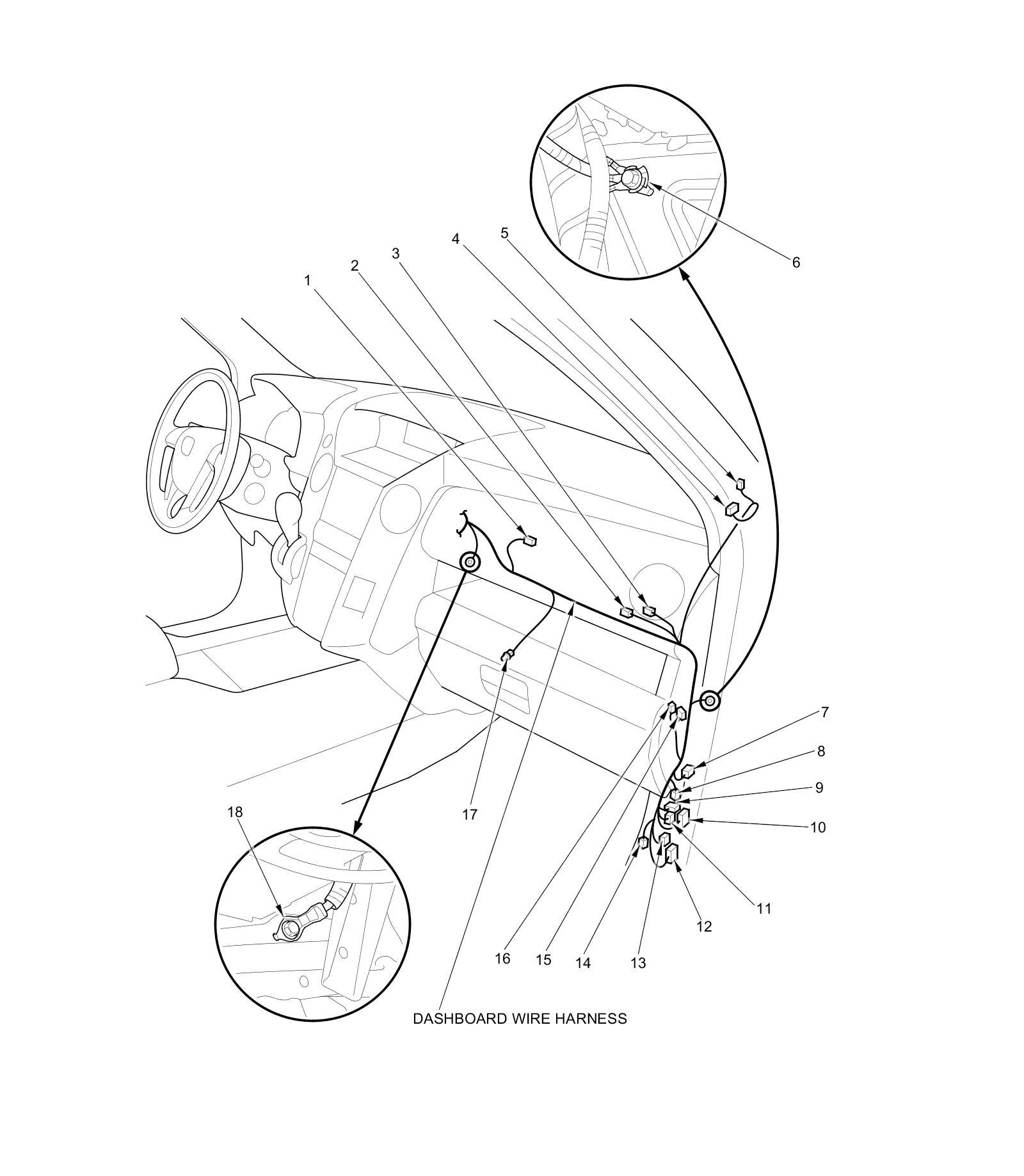

Dashboard Wire Harness (View of passenger's side)
