Voice Control Switch Test

Voice Control Switch Test

SRS components are located in this area. Review the SRS component locations Locations, and the precautions and procedures Service and Repair before doing repairs or service.

NOTE: The HFL-navigation voice control switch and the HFL switch are the same parts.

1. Remove the HFL-navigation voice control switch Voice Control Switch Removal/Installation.

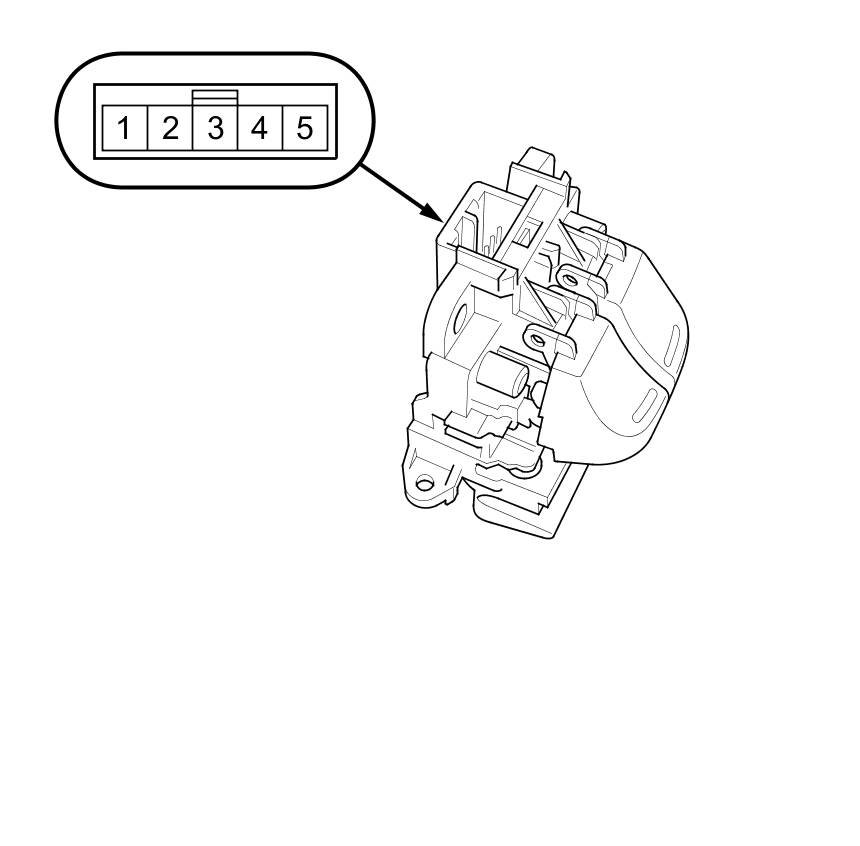

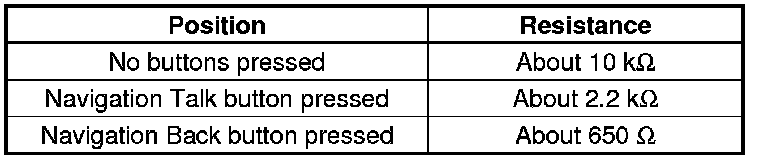

2. Measure the resistance between terminals No. 2 and No. 4 in each switch position according to the table.

Voice control switch





3. If the resistance is not as specified, replace the HFL-navigation voice control switch Overhaul.
