HFL Switch Test

HFL Switch Test

SRS components are located in this area. Review the SRS component locations Locations, and the precautions and procedures Service and Repair before doing repairs or service.

1. Remove the HFL switch HFL Switch Removal/Installation.

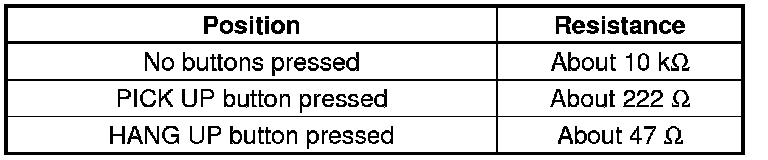

2. Measure the resistance between terminals No. 2 and No. 4 in each switch position according to the table.

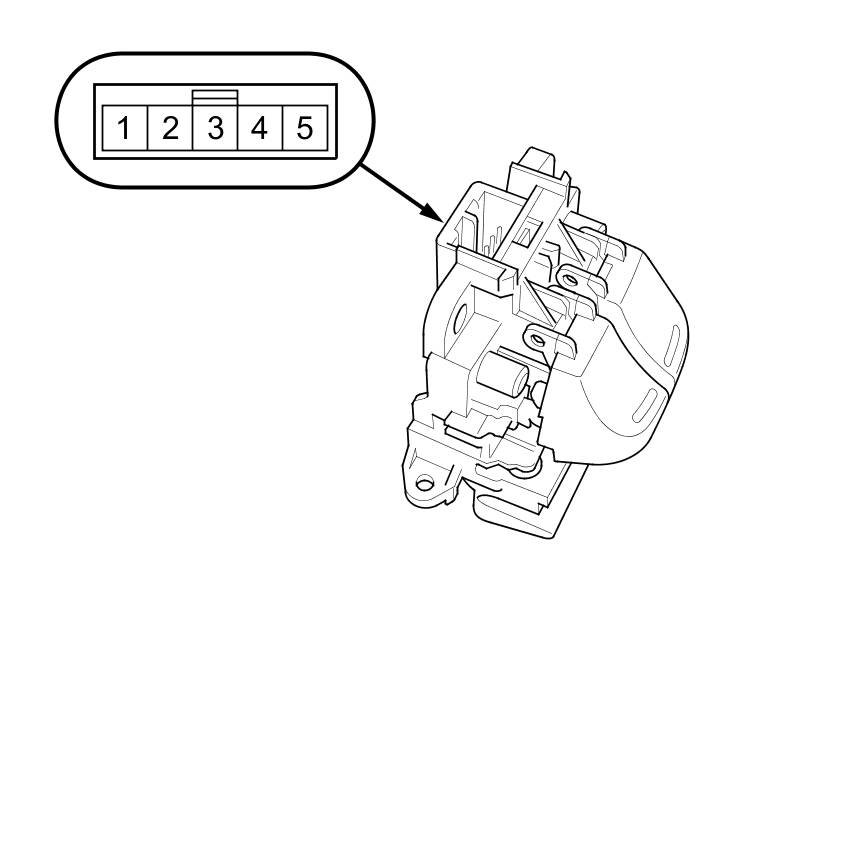

HFL Switch





3. If the resistance is not as specified, replace the HFL switch HFL Switch Removal/Installation.
