Remote Switch: Service and Repair

Audio Remote Switch Replacement

With HandsFreeLink

SRS components are located in this area. Review the SRS component locations Locations, and the precautions and procedures Service and Repair before doing repairs or service.

1. Remove the driver's airbag assembly Driver's Airbag Replacement.

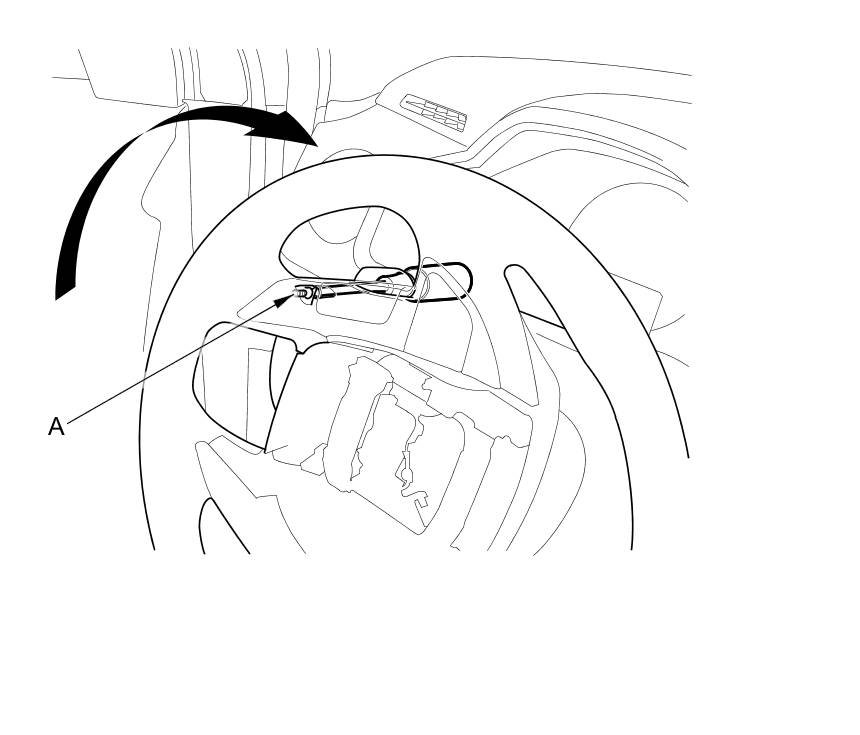

2. Turn the steering wheel to right, the loosen the screw (A) from the back to the steering wheel.

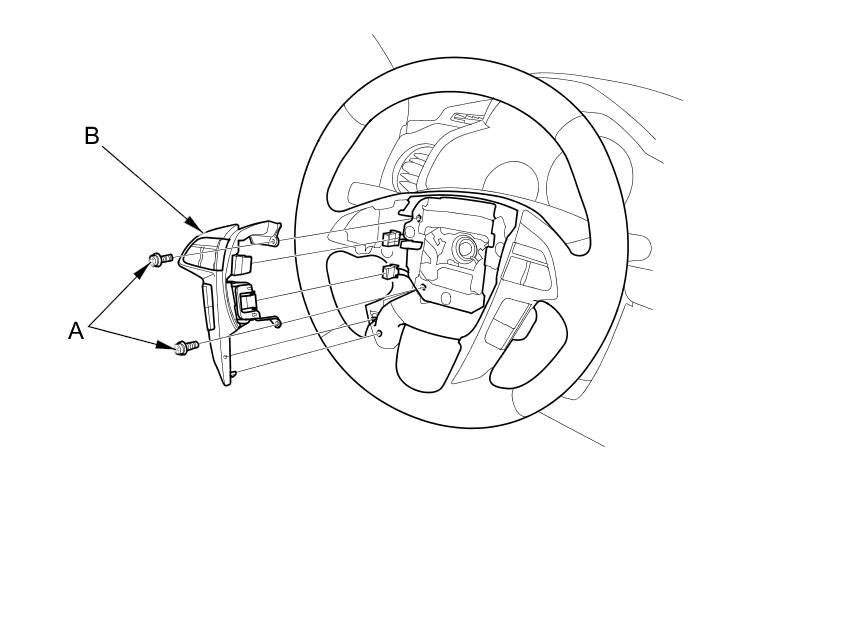

3. Remove the screws (A) from the steering wheel.





4. Disconnect the connectors, and remove the steering wheel trim (B).

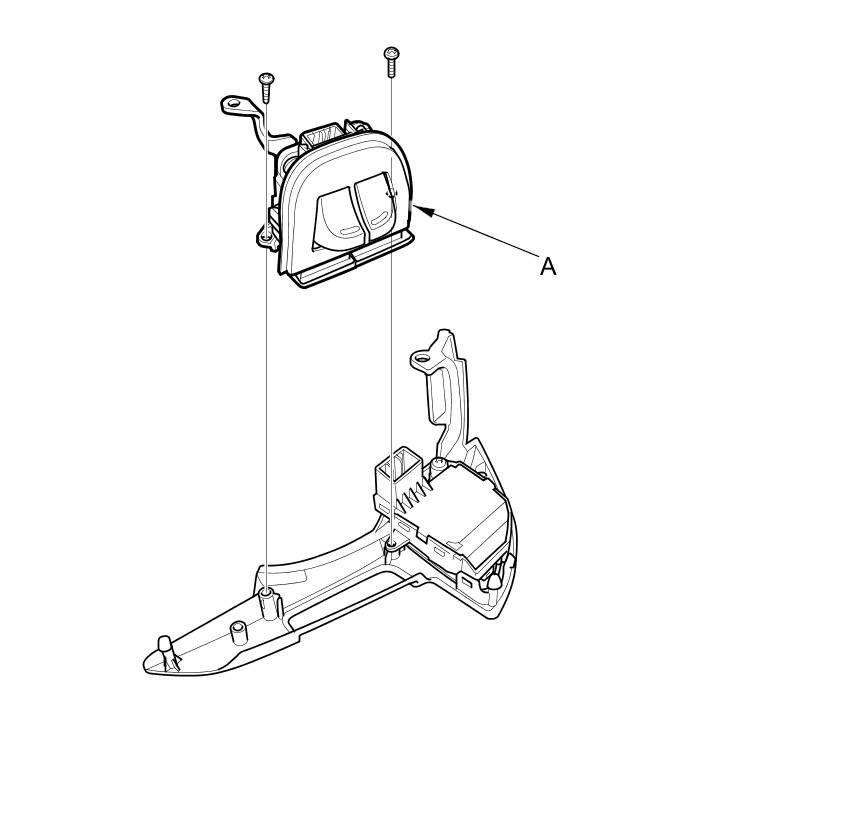

5. Remove the screws and the HFL switch (A).

NOTE: The HFL-navigation voice control switch and the HFL switch are the same parts.

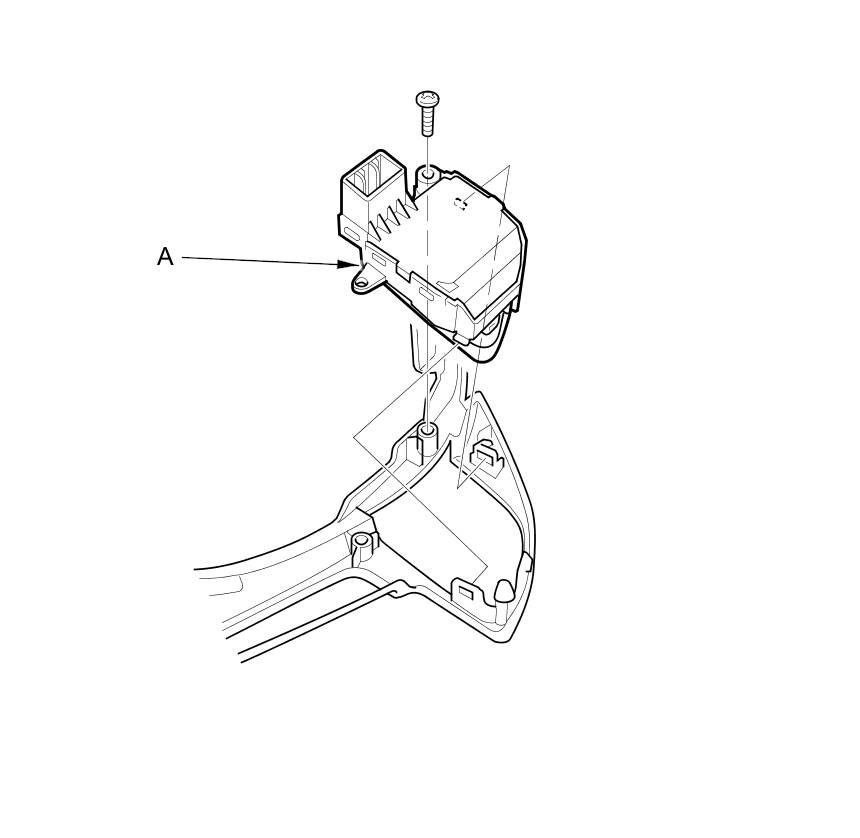

6. Remove the screw and the audio remote switch (A).





7. Install the audio remote switch in the reverse order of removal.

Without HandsFreeLink

SRS components are located in this area. Review the SRS component locations Locations, and the precautions and procedures Service and Repair before doing repairs or service.

1. Remove the driver's airbag assembly Driver's Airbag Replacement.

2. Turn the steering wheel to right, the loosen the screw (A) from the back to the steering wheel.






3. Remove the screw (A) from the steering wheel.





4. Disconnect the connector, and remove the steering wheel trim (B).

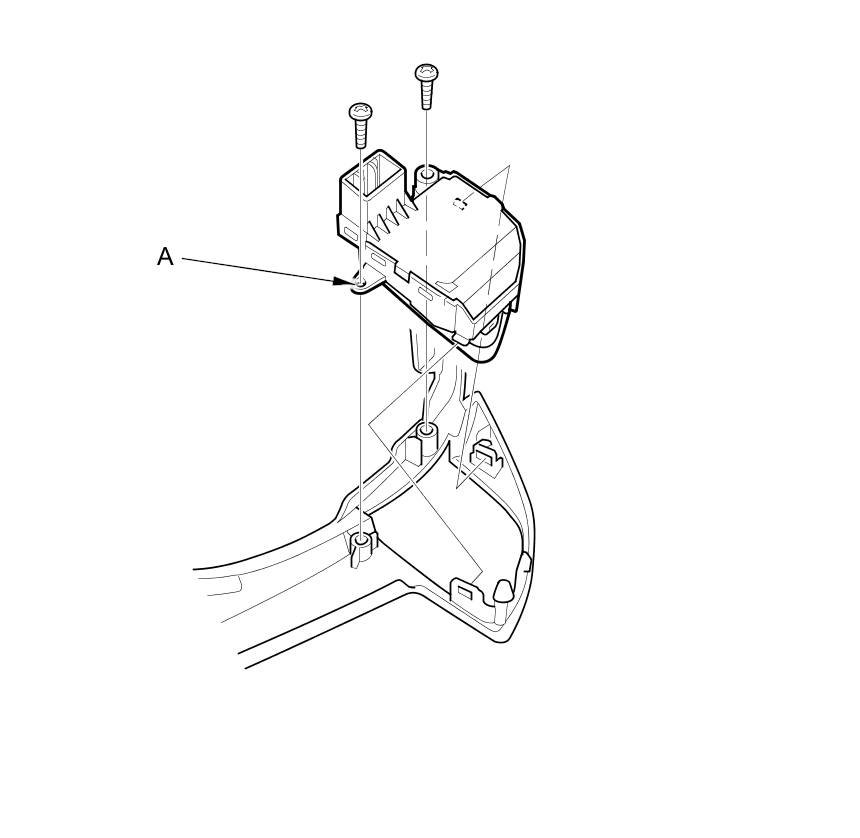

5. Remove the screws and the audio remote switch (A).





6. Install the audio remote switch in the reverse order of removal.
