Rear Center Sensor Replacement

Rear Center Sensor Replacement

1. Remove the rear bumper Rear Bumper Removal/Installation.

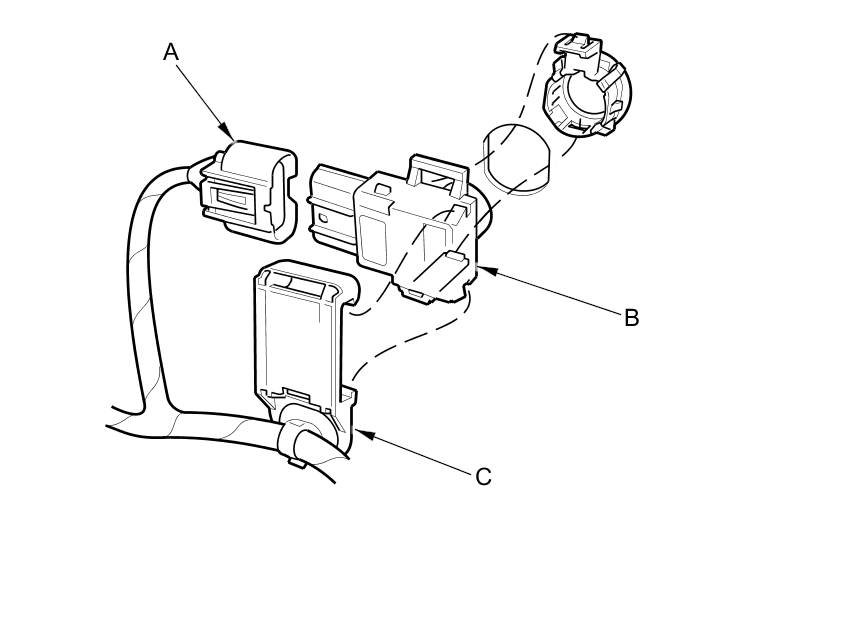

2. Disconnect the 6P connector (A) from the rear center sensor (B).





3. Remove the retainer (C) and remove the sensor.

4. Install the sensor in the reverse order of removal.
