Global Positioning System Antenna: Service and Repair

GPS Antenna Removal/Installation

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the dashboard and related parts.
- Lay a workshop towel under the parts when working on them to protect the face panel from scratches or other damage.

1. Remove these items:

- Audio-Navigation unit Audio-Navigation Unit Removal/Installation
- Navigation display unit Service and Repair
- Navigation switch panel Service and Repair

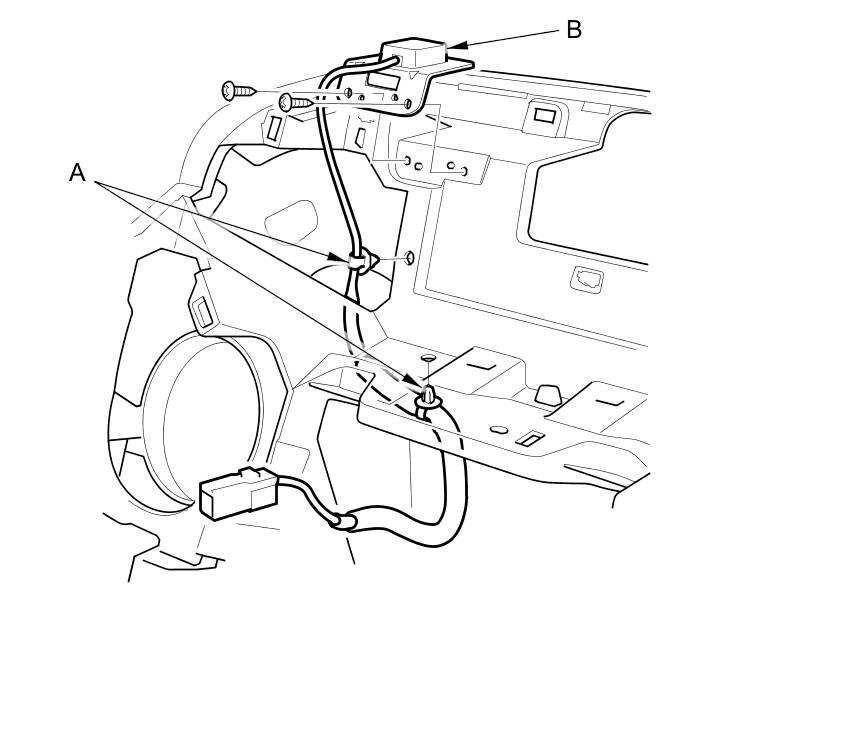

2. Remove the screws and detach the clips (A), then remove the GPS antenna (B).





3. Install the GPS antenna in the reverse order of removal.
