Transmission Removal

Special Tools Required

• Engine Support Hanger, A and Reds AAR-T1256*
• 2008 V6 Attachment Arm SIL02C000033*
• Subframe Adapter VSB02C000016*
• Engine Hanger Balance Bar VSB02C000019*

  *: Available through the Honda Tool and Equipment Program 888-424-6857.

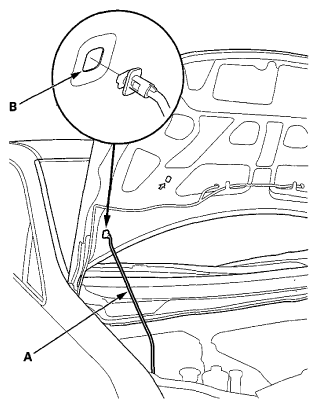

1. Open the hood, and secure it with the hood support rod (A) in the wide-open position (B).
   Fig 1: Locating Hood Support Rod And Wide-Open Position

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Remove the engine cover.
3. Drain the power steering fluid from the reservoir (see FLUID CHECK/REPLACEMENT ).
4. Set the front wheels in the straight ahead position, and lock the steering wheel.

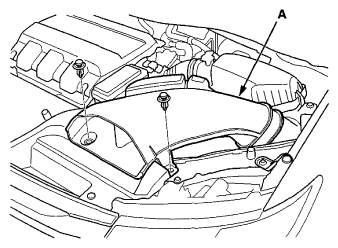

5. Remove the air intake scoop (A).
   Fig 2: Locating Air Intake Scoop

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
7. Remove the front bulkhead cover (see FRONT BULKHEAD COVER REPLACEMENT ).
8. Remove the cowl cover (see COWL COVER REPLACEMENT ).
9. Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
10. Remove the intake air duct.
    Fig 3: Identifying Intake Air Duct

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

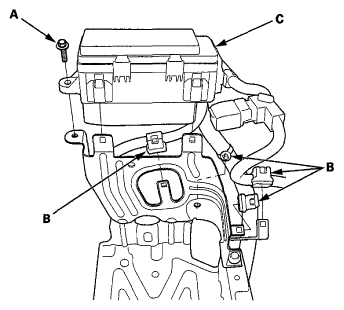

11. Remove the bolt (A) and the harness clamps (B), then move the main under-hood fuse box (C) out of the way.
    Fig 4: Locating Bolt, Harness Clamps And Main Under-Hood Fuse Box

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

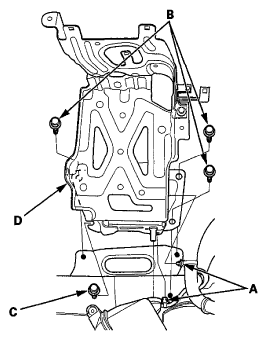

12. Remove the harness clamps (A) and the bolts (B), and loosen the bolt (C), then remove the battery base (D).
    Fig 5: Locating Harness Clamps, Bolts And Battery Base

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

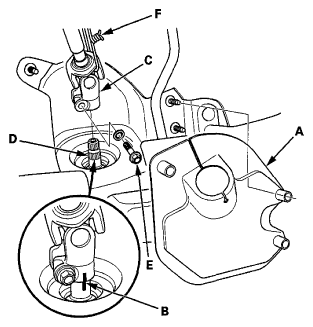

13. Remove the steering joint cover (A).
    Fig 6: Locating Steering Joint Cover, Reference Marks, Steering Joint And Steering Gearbox Pinion Shaft

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
14. Make reference marks (B) across the steering joint (C) and the steering gearbox pinion shaft (D). If the center guide is still installed, take care not to displace it. If the center guide is no longer installed, or is displaced during when the joint is disconnected, refer to the reference marks to reinstall the joint. Loosen the steering joint bolt (E), then install the steering wheel holder tool (see step 15 on REMOVAL ).
15. Remove the steering joint bolt, then disconnect the steering joint from the steering gearbox pinion shaft.
    NOTE: Hold the lower slide shaft on the column with a piece of wire (F) between the joint yoke of the lower slide shaft and the joint yoke of the upper shaft to prevent the slider shaft from pulling out.
16. Cover the drive belt auto-tensioner, the alternator, and the A/C compressor with several shop towels to protect them from spilled power steering fluid. Remove the power steering pump outlet hose (A) from the power steering pump, and remove the hose clamp bolt (B). Cover the opening of the pump and the pump outlet hose with a piece of tape to prevent foreign material from entering either the pump or the outlet hose. Take care not to spill fluid on the vehicle. Wipe off any spilled fluid at once.
    Fig 7: Locating Power Steering Pump Outlet Hose And Hose Clamp Bolt

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

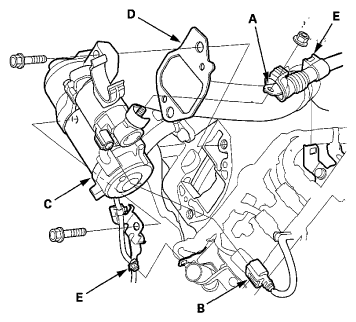

17. Remove the ATF dipstick, then disconnect the positive starter cable (A) and the S terminal connector (B) from the starter (C). Remove the starter and the gasket (D).
    Fig 8: Locating Positive Starter Cable, S Terminal Connector, Starter And Gasket

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
18. Remove the harness clamps (E).
19. Remove the bolt (A) securing the harness cover (B), and move the harness cover out of the way.
    Fig 9: Locating Bolt And Harness Cover

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

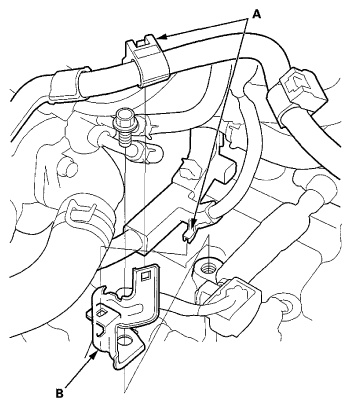

20. Remove the harness clamps (A), and remove the clamp bracket (B).
    Fig 10: Locating Harness Clamps And Clamp Bracket

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

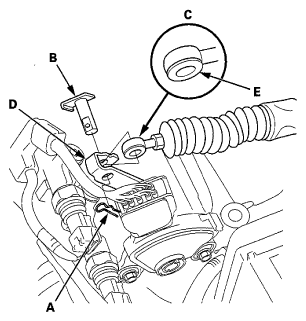

21. Remove the spring clip (A) and the control pin (B), then separate the shift cable end (C) from the selector control lever (D).
    Fig 11: Locating Spring Clip, Control Pin, Separate Shift Cable End And Selector Control Lever

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
22. Check the bushing (E) in the shift cable end for proper fit and wear. If the bushing is loose or worn, replace the shift cable (see SHIFT CABLE REPLACEMENT  ).
23. Remove the nuts (A) securing the shift cable bracket (B).
    Fig 12: Locating Nuts And Shift Cable Bracket

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

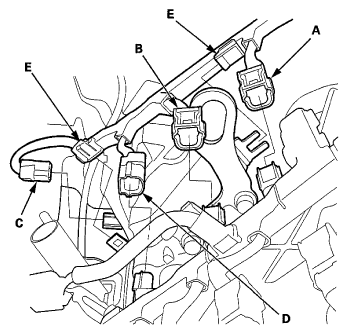

24. Disconnect these connectors:
    • Shift solenoid valve A connector (A)
    • Shift solenoid valve B connector (B)
    • Shift solenoid valve C connector (C)
    • Line pressure solenoid valve A connector (D)
      Fig 13: Locating Shift Solenoid Valve Connectors

      Courtesy of AMERICAN HONDA MOTOR CO., INC.
25. Remove the harness clamps (E).

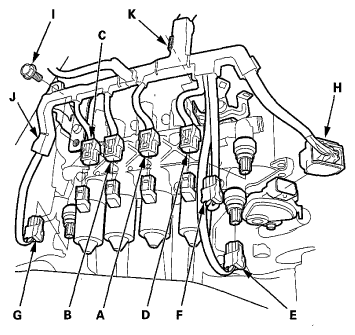

26. Disconnect these connectors:
    • A/T clutch pressure control solenoid valve A connector (A)
    • A/T clutch pressure control solenoid valve B connector (B)
    • A/T clutch pressure control solenoid valve C connector (C)
    • A/T clutch pressure control solenoid valve D connector (D)
    • Transmission fluid pressure switch B (3rd clutch) connector (E)
    • Transmission fluid pressure switch E (6th clutch) connector (F)
    • Line pressure switch connector (G)
    • Transmission range switch connector (H)
      Fig 14: Locating A/T Clutch Pressure Control Solenoid Valve Connectors

      Courtesy of AMERICAN HONDA MOTOR CO., INC.

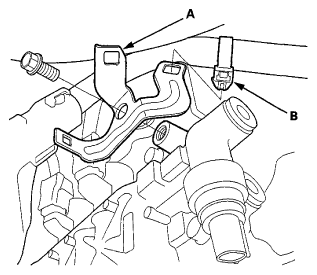

27. Remove the bolt (I) securing the harness cover (J), and remove the harness clamp (K).
28. Remove the harness cover bracket (A), and install the harness clamp (B).
    Fig 15: Locating Harness Cover Bracket And Harness Clamp

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

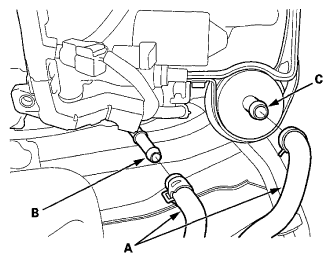

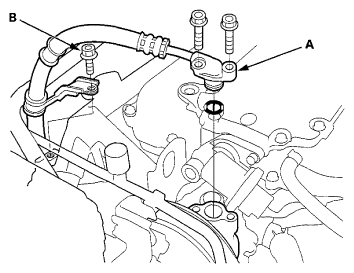

29. Remove the ATF cooler hoses (A) from the ATF cooler line (B) and the ATF filter (C). Turn the ends of the cooler hoses up to prevent ATF from flowing out, then plug the cooler hoses, the line, and the ATF filter.
    Fig 16: Locating ATF Cooler Hoses, ATF Cooler Line And ATF Filter

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

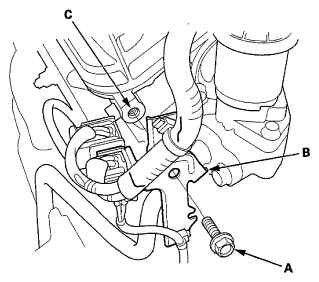

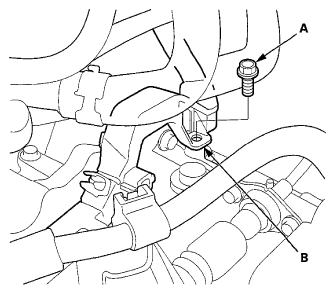

30. Remove the bolt (A) securing the connector bracket (B) from the front cylinder head; use the bracket bolt hole (C) to attach the engine hanger balance bar front arm.
    Fig 17: Locating Bolt, Connector Bracket And Bracket Bolt Hole

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

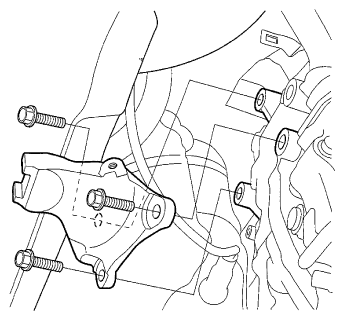

31. Remove the connector bracket (A) from the rear cylinder head; use the bracket bolt hole to attach the 2008 V6 attachment arm.
    Fig 18: Locating Connector Bracket And Bolt

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

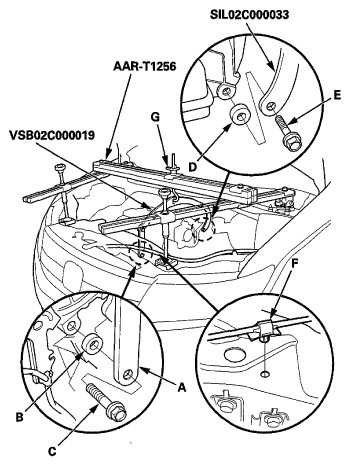

32. Install the engine hanger balance bar (VSB02C000019). Attach the front arm (A) to the front cylinder head with a 10 mm (0.39 in) spacer (B) and a 10 x 1.25 mm bolt (C). Remove the rear arm from the engine hanger balance bar, then install the 2008 V6 attachment arm (SIL02C000033). Attach the 2008 V6 attachment arm to the rear cylinder head with a 10 mm (0.39 in) spacer (D) and an 8 x 1.25 mm bolt (E).
    Fig 19: Attaching Front Arm To Front Cylinder Head With 10 mm (0.39 in) Spacer And 10 x 1.25 mm Bolt

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
33. Remove the hood opener cable clip (F). Install the engine support hanger (AAR-T1256) onto the vehicle as shown, and attach the hook to the slotted hole in the engine hanger balance bar. Tighten the wing nut (G) by hand, and lift and support the engine.
    NOTE:

    • Be careful when working around the windshield.
    • Be careful not to damage the hood opener cable when installing the engine support hanger at the front bulkhead.
    • AAR-T1256 two sets required for stacking two cross section bars.

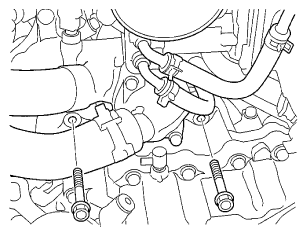

34. Remove the upper transmission housing mounting bolts.
    Fig 20: Identifying Upper Transmission Housing Mounting Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
35. Remove the front subframe damper (A).
    Fig 21: Locating Front Subframe Damper

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
36. Remove the front engine mount stop (A), and remove the front engine mount bolt (B).
    Fig 22: Locating Front Engine Mount Stop And Front Engine Mount Bolt

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

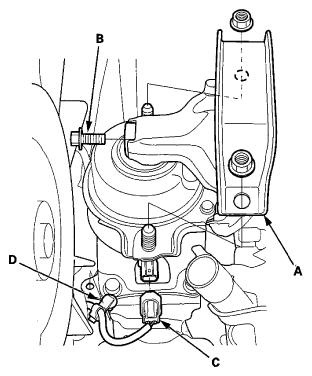

37. Disconnect the front engine mount actuator connector (C), and remove the harness clamp (D).
38. Raise the vehicle on a lift, and make sure it is securely supported.
39. Remove the front wheels.
40. Remove the front inner fender on both sides (see FRONT INNER FENDER REPLACEMENT ).
41. Remove the front splash shield (see FRONT SPLASH SHIELD REPLACEMENT ).
42. Remove the drain plug (A), and drain the ATF.
    Fig 23: Locating Drain Plug And Sealing Washer With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
43. Reinstall the drain plug with a new sealing washer (B).
44. Disconnect the ATF temperature sensor connector (A), then remove the harness clamps (B).
    Fig 24: Locating ATF Temperature Sensor Connector And Harness Clamps

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

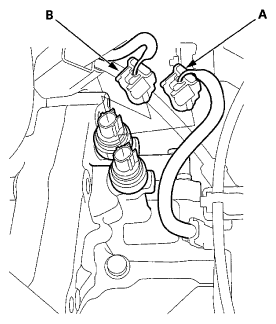

45. Disconnect the transmission fluid pressure switch C (4th clutch) connector (A), then remove the harness clamp (B).
    Fig 25: Locating Transmission Fluid Pressure Switch C (4th Clutch) Connector And Harness Clamp

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
46. Disconnect the input shaft (mainshaft) speed sensor connector (A) and the output shaft (countershaft) speed sensor connector (B), then remove the harness clamps (C).
    Fig 26: Locating Input Shaft (Mainshaft) Speed Sensor Connector, Output Shaft (Countershaft) Speed Sensor Connector And Harness Clamps

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
47. With headlight leveling system: Disconnect the front suspension stroke sensor connector (A), and remove the harness clamps (B).
    Fig 27: Locating Front Suspension Stroke Sensor Connector And Harness Clamps

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

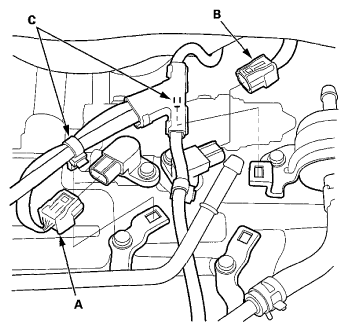

48. Disconnect the transmission fluid pressure switch A (2nd clutch) connector (A) and the transmission fluid pressure switch D (5th clutch) connector (B).
    Fig 28: Locating Transmission Fluid Pressure Switch A (2nd Clutch) Connector And Transmission Fluid Pressure Switch D (5th Clutch) Connector

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
49. Remove the torque converter cover (A), and remove the drive plate bolts (B) (8) while rotating the crankshaft pulley.
    Fig 29: Locating Torque Converter Cover And Drive Plate Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

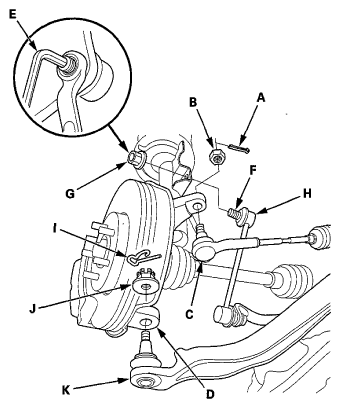

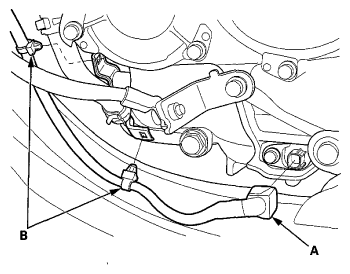

50. Remove the cotter pins (A) and the nuts (B), and separate the tie-rod end ball joints (C) from the knuckles (D) (see step 21 on REMOVAL ).
    Fig 30: Inserting Hex Wrench In Top Of Stabilizer Link Ball Joint Pin

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
51. Insert a hex wrench (E) in the top of the stabilizer link ball joint pin (F), and remove the nuts (G), then separate the stabilizer links (H).
52. Remove the lock pins (I) and the castle nuts (J), and separate the lower arms (K) from the knuckles (see step 5 on LOWER ARM REMOVAL/INSTALLATION ).
53. Remove exhaust pipe A (see EXHAUST PIPE AND MUFFLER REPLACEMENT ).
54. Loosen the hose clamp bolt (A), then disconnect the power steering fluid hose (B) from the fluid line at the left front of the front subframe, then plug the hose and cap the line.
    Fig 31: Locating Hose Clamp Bolt And Power Steering Fluid Hose

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
55. Disconnect the power steering pressure switch connector.
    Fig 32: Identifying Power Steering Pressure Switch Connector

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
56. Disconnect the rear engine mount actuator connector.
    Fig 33: Identifying Rear Engine Mount Actuator Connector

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
57. Remove the lower transmission mount bolts (A) and the transmission ground terminal bracket (B).
    Fig 34: Locating Lower Transmission Mount Bolts And Transmission Ground Terminal Bracket

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
58. Remove the rear engine mount bolts (A) and the power steering heat shield bolt (B).
    Fig 35: Locating Rear Engine Mount Bolts And Power Steering Heat Shield Bolt

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

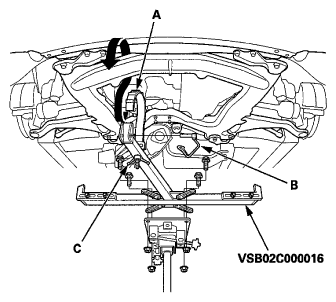

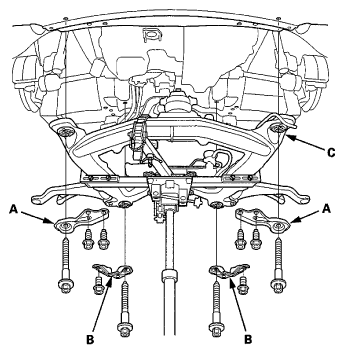

59. Attach the subframe adapter (VSB02C000016) to the front subframe by looping the strap (A) over the front of the front subframe, then secure the strap with the stop (B), and tighten the wing nut (C).
    Fig 36: Attaching Subframe Adapter (VSB02C000016) To Front Subframe By Looping Strap Over Front Of Front Subframe

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
60. Raise the jack and line up the slots in the arms with the bolt holes on the corner of the jack base, then tighten the bolts.

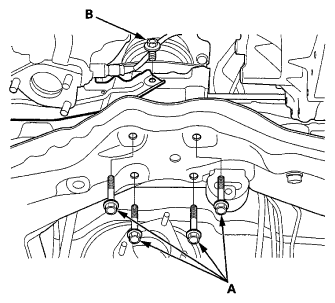

61. Remove the bolts securing the front stiffeners (A) and the rear stiffeners (B), then remove the bolts securing the front subframe (C), and lower the front subframe carefully.
    Fig 37: Locating Front Stiffeners, Rear Stiffeners And Front Subframe

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
62. Support the transmission with a transmission jack.
63. Remove the left driveshaft from the differential. Coat all precision machined surfaces with clean engine oil, then put plastic bag over driveshaft end.
    NOTE: Plug the driveshaft hole (A) to prevent dirt and solvent from entering the transmission.
    Fig 38: Locating Driveshaft Hole Plug

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
64. Secure the left driveshaft to the body with a nylon strap.

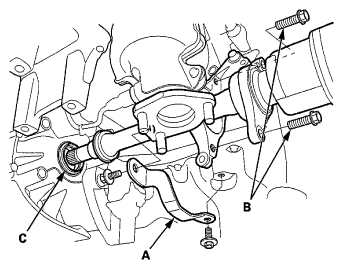

65. Remove the rear warm up three way catalytic converter (rear WU-TWC) bracket (A) and the right driveshaft bearing bracket bolts (B). Remove the right driveshaft from the differential. Coat all precision machined surfaces with clean engine oil, then put plastic bag over driveshaft end.
    NOTE: Plug the driveshaft hole (C) to prevent dirt and solvent from entering the transmission.
    Fig 39: Locating Rear Warm Up Three Way Catalytic Converter (Rear WU-TWC) Bracket And Right Driveshaft Bearing Bracket Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

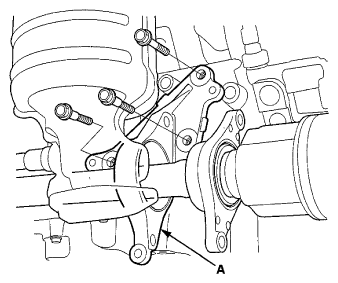

66. Remove the driveshaft support base (A).
    Fig 40: Locating Driveshaft Support Base

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
67. Secure the right driveshaft to the body with a nylon strap.
68. Remove the front engine mount bracket.
    Fig 41: Identifying Front Engine Mount Bracket

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
69. Remove the crankshaft position (CKP) sensor cover (A), and disconnect the CKP sensor connector (B).
    Fig 42: Locating Crankshaft Position Sensor Cover And CKP Sensor Connector

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
70. Remove the lower transmission housing mounting bolts.

    Front side

    Fig 43: Identifying Lower Transmission Housing Mounting Bolts - Front Side

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Rear side

    Fig 44: Identifying Lower Transmission Housing Mounting Bolts - Rear Side

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
71. Check once again that the transmission is free of hoses and electrical wiring.
72. Lower the transmission by loosening the wing nut of the engine support hanger, and tilt the engine just enough for the transmission to clear its end from the side frame.
73. Slide the transmission away from the engine to remove it from the vehicle.

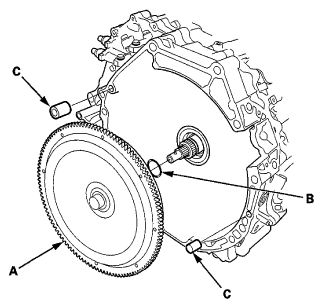

74. Remove the torque converter (A), the O-ring (B), and the dowel pins (C).
    Fig 45: Locating Torque Converter, O-Ring And Dowel Pins

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
75. Inspect the drive plate, and replace it if it is damaged (see DRIVE PLATE REMOVAL AND INSTALLATION  ).
