Transmission Fluid Pressure Switch E (6th Clutch) Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove the air intake scoop (see step  5 ).
  2. Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
  3. Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  4. Remove the intake air duct (see step  10 ).
  5. Remove the main under-hood fuse box (see step  11 ).
  6. Remove the battery base (see step  12 ).
  7. Disconnect the transmission fluid pressure switch E (6th clutch) connector, and remove transmission fluid pressure switch E (6th clutch) (A) and the sealing washer (B).

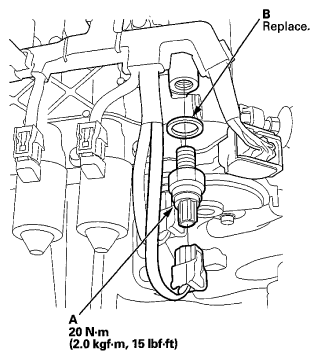

    Fig 1: Locating Transmission Fluid Pressure Switch E (6th Clutch) And Sealing Washer With Torque Specifications
    G06969081Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install a new transmission fluid pressure switch E (6th clutch) with a new sealing washer, and tighten the switch.
  9. Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
  10. Install the battery base (see step  58 ).
  11. Install the main under-hood fuse box (see step  59 ).
  12. Install the intake air duct (see step  60 ).
  13. Install the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  14. Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
  15. Install the air intake scoop (see step  66 ).
