Third Shaft Bearing Replacement

Special Tools Required

• Adjustable Bearing Puller, 25-40 mm 07736-A01000B
• Bearing Driver Attachment, 52 x 55 mm 07746-0010400
• Driver Handle, 15 x 135L 07749-0010000

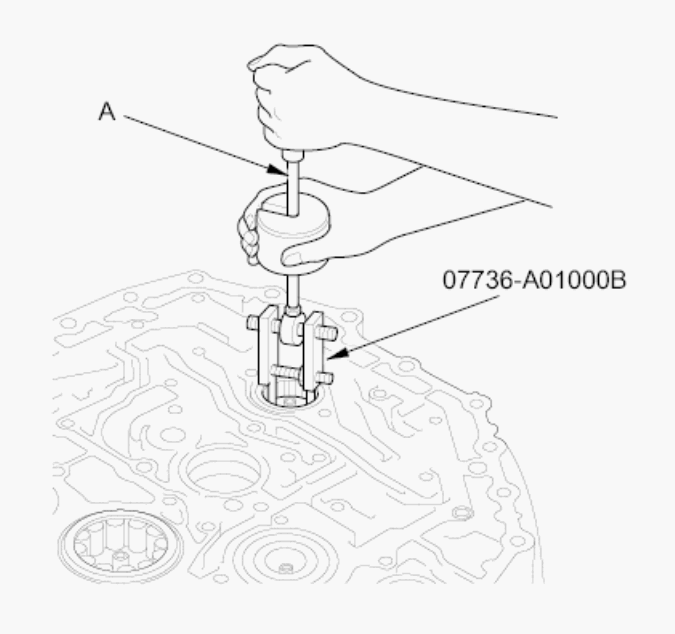

1. Remove the third shaft bearing from the torque converter housing using the 25-40 mm adjustable bearing puller and a commercially available 3/8 "-16 slide hammer (A).
   Fig 1: Removing Third Shaft Bearing From Torque Converter Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Check the ATF guide plate (A), and replace it if it is damaged.
   Fig 2: Locating ATF Guide Plate And Bearing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install a new bearing (B) in the torque converter housing.

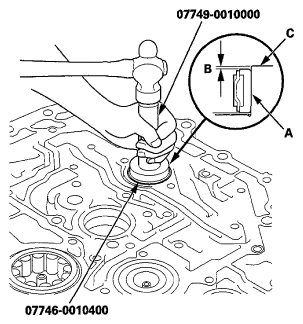

4. Drive the bearing (A) into the torque converter housing using the 15 x 135L driver handle and the 52 x 55 mm bearing driver attachment; install the bearing to a depth (B) of 0-0.07 mm (0-0.0012 in) below the torque converter housing surface (C).
   Fig 3: Driving Bearing Into Torque Converter Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
