Secondary Shaft Bearing Replacement

Special Tools Required

• Adjustable Bearing Puller, 45-75 mm 07YAC-0010100
• Bearing Driver Attachment, 62 x 68 mm 07746-0010500
• Driver Handle, 15 x 135L 07749-0010000

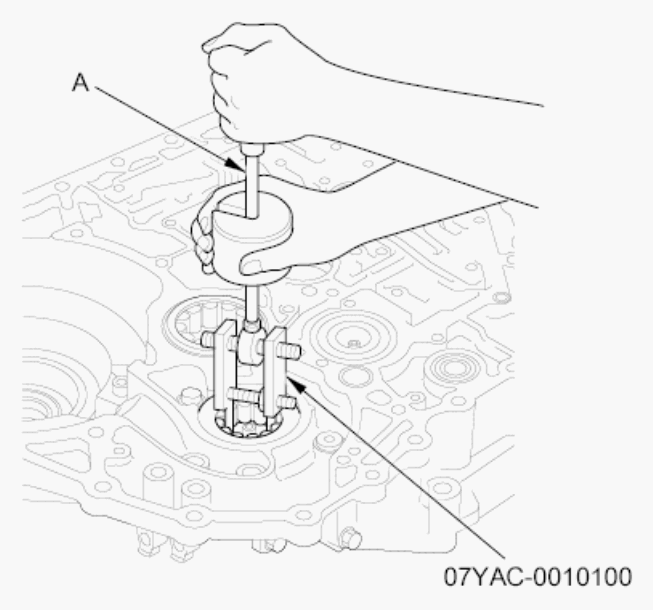

1. Remove the secondary shaft bearing from the torque converter housing using the 45-75 mm adjustable bearing puller and a commercially available 3/8 "-16 slide hammer (A).
   Fig 1: Removing Secondary Shaft Bearing From Torque Converter Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

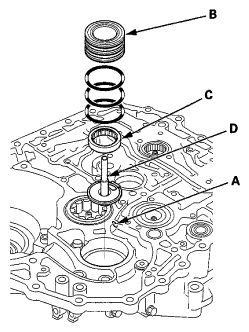

2. Cover the tip of the 1st clutch ATF feed pipe with a shop rag. Apply air pressure to the ATF feed pipe hole (A) of the 1st clutch hydraulic circuit, and remove the ATF guide collar (B), the 28.6 x 40.8 x 13 mm secondary shaft bearing (C), and the ATF feed pipe assembly (D) from the transmission housing.
   Fig 2: Locating ATF Feed Pipe Hole, ATF Guide Collar, 28.6 x 40.8 x 13 mm Secondary Shaft Bearing And ATF Feed Pipe Assembly

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

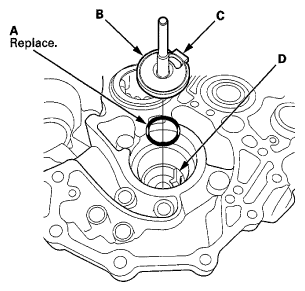

3. Install a new O-ring (A) on the ATF feed pipe assembly (B), then install the ATF feed pipe assembly in the torque converter housing by aligning the finger (C) with the groove (D).
   Fig 3: Locating O-Ring, ATF Feed Pipe Assembly, Finger And Groove

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

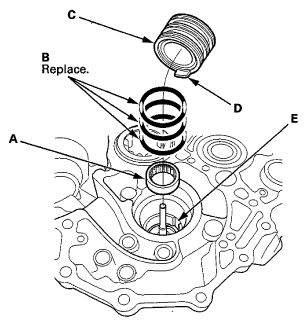

4. Install the 28.6x40.8 x 13 mm bearing (A) into the torque converter housing.
   Fig 4: Locating 28.6x40.8 x 13 mm Bearing, O-Rings And ATF Guide Collar

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Install new O-rings (B) on the ATF guide collar (C), then install the guide collar in the torque converter housing by aligning the finger (D) with the groove (E).

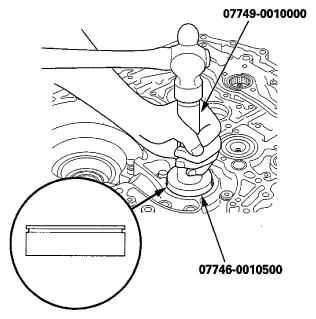

6. Install the bearing until it bottoms in the direction shown in the torque converter housing using the 15 x 135L driver handle and the 62 x 68 mm bearing driver attachment.
   Fig 5: Installing Bearing In Torque Converter Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
